Use Cases
Common use cases include bulk cement delivery to ready-mix plants, precast factories, and construction sites, and on-site powder transfer where pneumatic unloading is required. As a lightweight aluminum silo trailer (also called a powder tanker or cement carrier), it’s perfect for operators who need higher payloads per trip and frequent daily cycles.

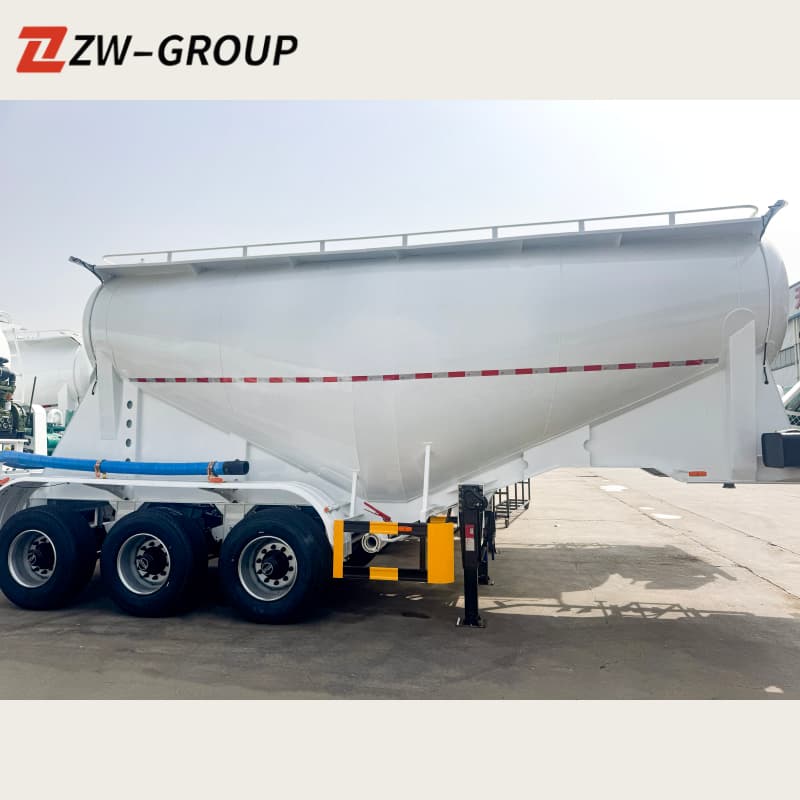

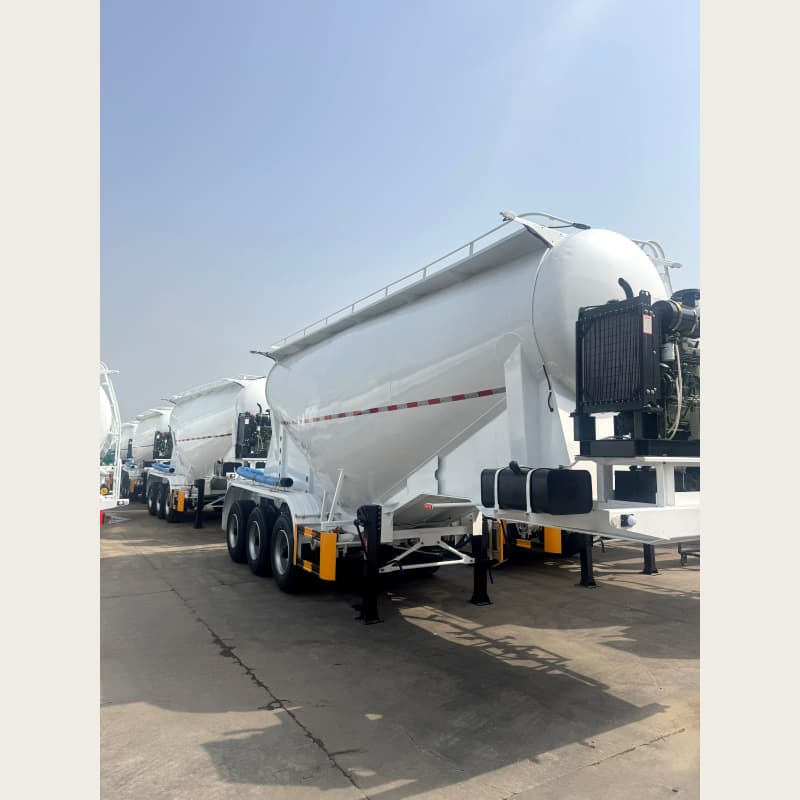

On-site photos
Detailed Description
This aluminum alloy cement bulk tanker features a V-shaped hopper body fabricated from high-strength aluminum alloy sheets for reduced tare weight and superior corrosion resistance compared with steel tanks. Typical capacities range from 28–35 m³ (adjustable by design) with a rated axle capacity of 3 × 13 t = 39 t, delivering a high payload-to-tare ratio that increases transport efficiency. The tanker uses automatic submerged-arc or robotic welding on critical joints to ensure airtight pneumatic performance and low retention volume (<0.3%).
Pneumatic discharge is driven by a reliable air compressor (reputable Chinese brand) with adjustable discharge hose length (standard to customer requirement), 500 mm manholes (×2), and 4" / quick-connect discharge outlets. Chassis and subframe are engineered from high-strength Q345B sections or equivalent, with mechanical leaf spring suspension (optionally parabolic/air suspension), single-wheel hubs (single tires per position) for lower rolling resistance, and standard safety features (pressure relief valve, sandblasted & primed anti-corrosion paint process). Customizable fittings, dimensions and payload tuning allow OEM/owner operators to order configurations matched to local regulations and operational needs.

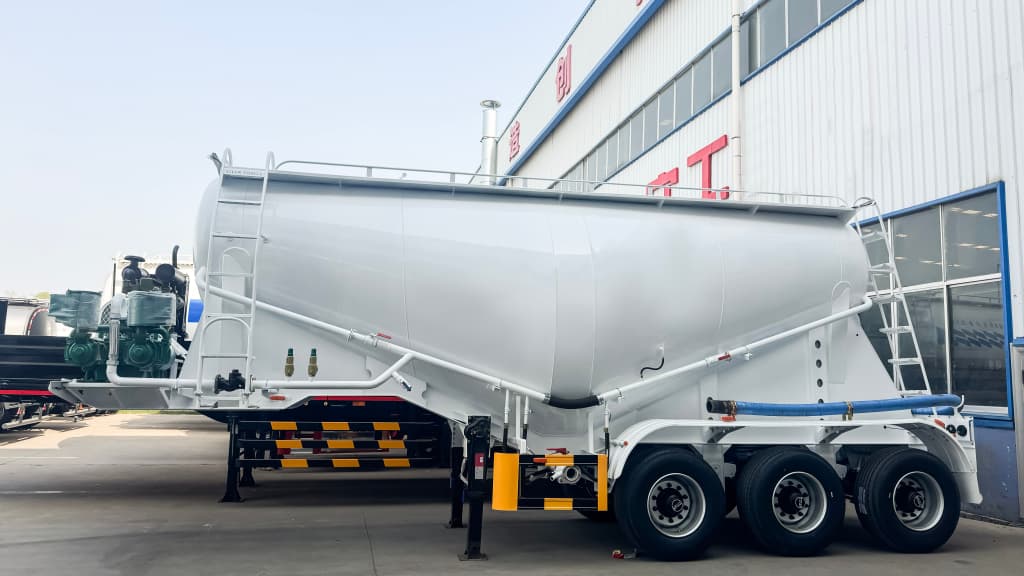

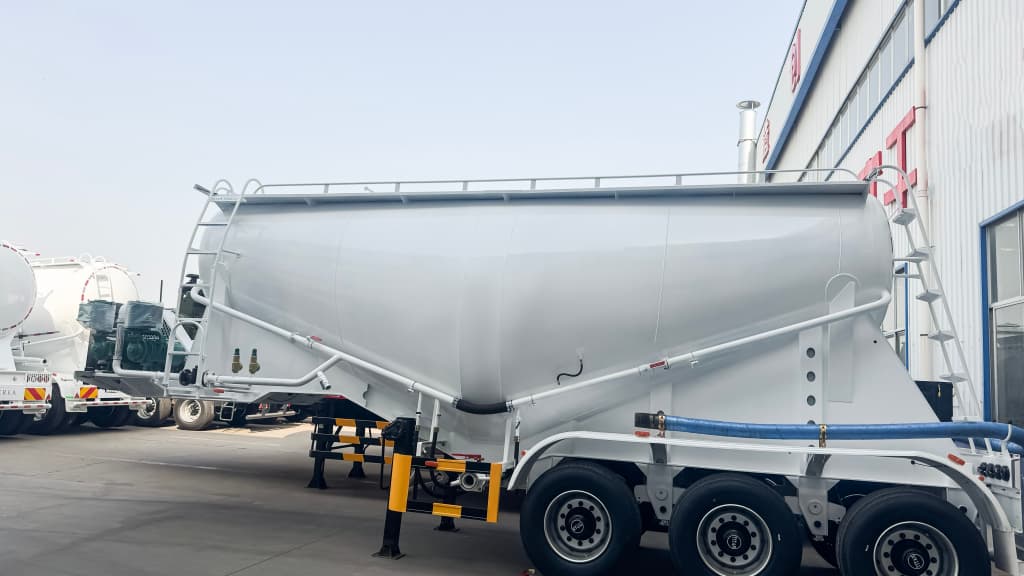

Real-shot image
Detailed specifications
| Item | Typical Specification |
|---|---|
| Tank Material | Aluminum alloy (4–6 mm typical plate thickness, rear/ends reinforced) |
| Capacity (volume) | 28–35 m³ (customizable) |
| Rated Axles | 3 × 13 t (total axle rating 39 t) |
| Payload / Gross | Designed for high payload-to-tare ratio (fleet option 25–33 t payload depending on spec) |
| Tank Shape / Silos | V-shaped single silo (1 chamber) |
| Manholes | 2 × Ø500 mm |
| Discharge | Pneumatic discharge, 4" quick-connect outlet, hose (length per customer) |
| Compressor & Engine | Chinese reputable brand air compressor; optional diesel-driven or PTO configurations |
| Suspension & Axles | Mechanical leaf spring (standard), 3 axles, 13t each; optional parabolic/air suspension |
| Tires & Rims | Single tires per position — 6 pcs tubeless 12R22.5 (or spec per request); rim 9.00-22.5 |
