Use Cases
Commonly used as a long-haul fuel tanker / fuel transport trailer for fuel distribution centers, depots and construction or mining sites where segregated loading of diesel and gasoline (or multiple grades) is required. It also serves well as a bulk on-site refueling trailer for fleets — ideal where volume, compartmentalization and corrosion resistance are priorities.

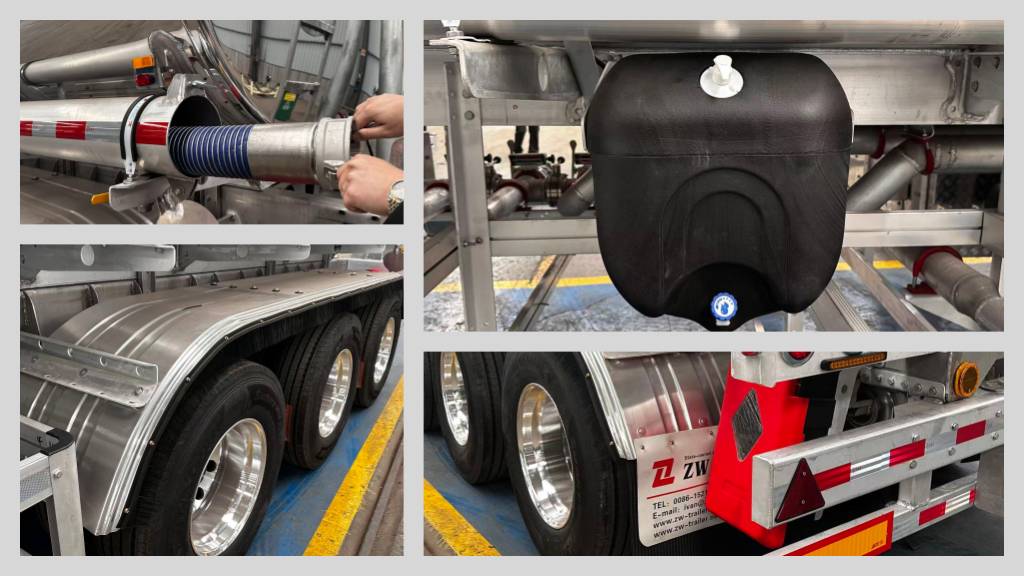

On-site photos
Detailed Description
The tanker body is manufactured from 5182 aluminum alloy with tank head thickness ~7.8 mm and shell thickness ~7.0 mm, while anti-wave baffles use 6 mm 5182 plates — delivering a lightweight yet durable structure that reduces curb weight and improves payload efficiency. The integrated T-type 6061 aluminum longitudinal beam frame and H-type 304 stainless steel walking mechanism provide reinforced support and longevity; combined axle rating (BPW 12T ×3) gives a robust load foundation (approx. 36T axle rating total) for heavy fuel loads.
All fluid handling components are premium: CIVACON aluminum subsea valves, clamp-type European manhole covers, 6 CIVACON discharge valves and CIVACON anti-overflow probes across 6 compartments; discharge piping (3" & 4") and polished tank surface with stainless pickling/passivation ensure safe, hygienic and low-maintenance fuel transfer. The trailer includes practical accessories (Hankook 295/80R22.5 tires + forged aluminum rims, WABCO ABS 4S/2M, toolbox, ladder, fire extinguishers) and supports full customization of compartment sizes, fittings and surface finish to meet specific customer requests.

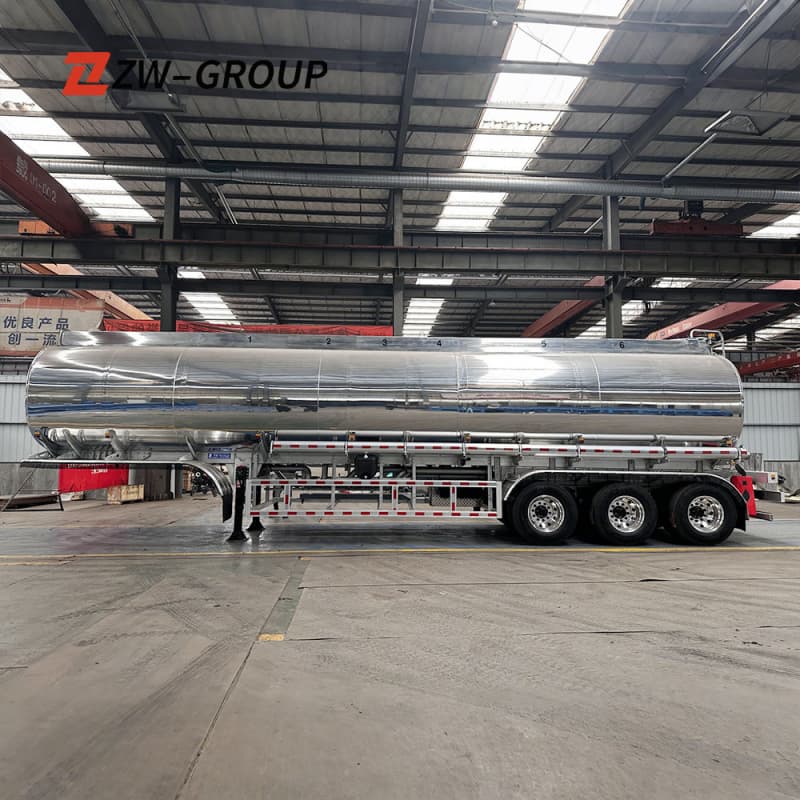

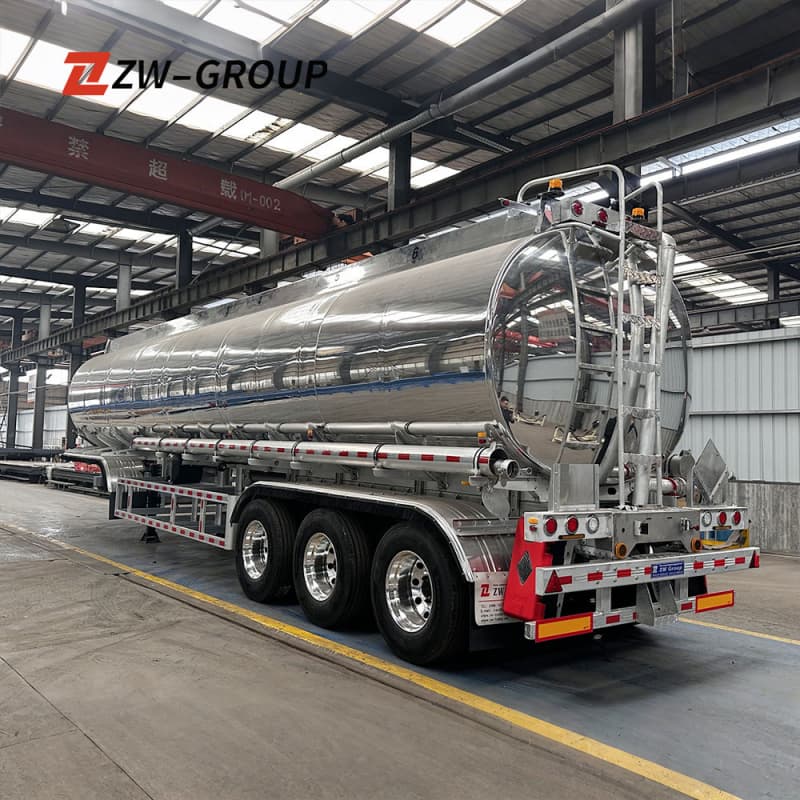

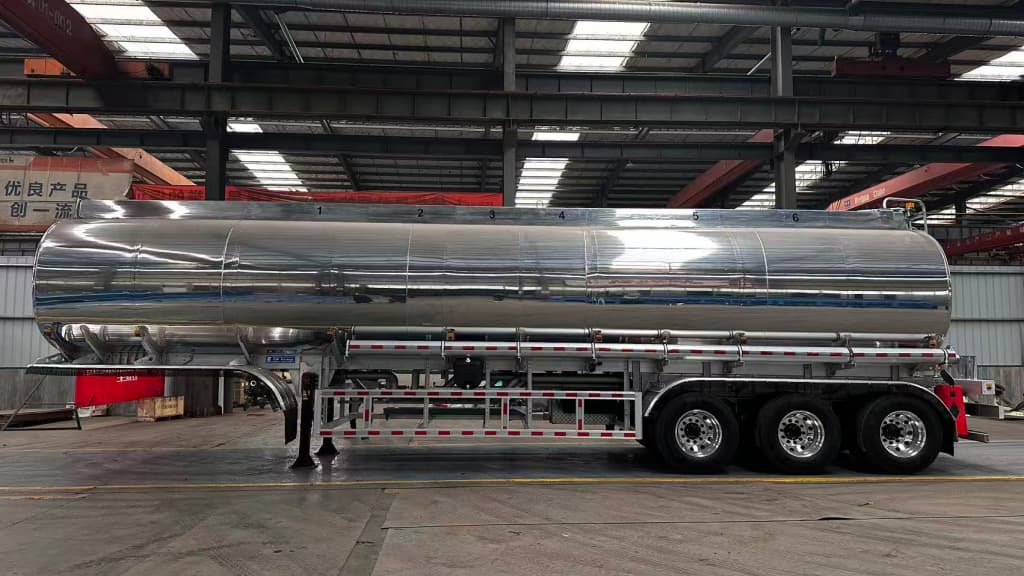

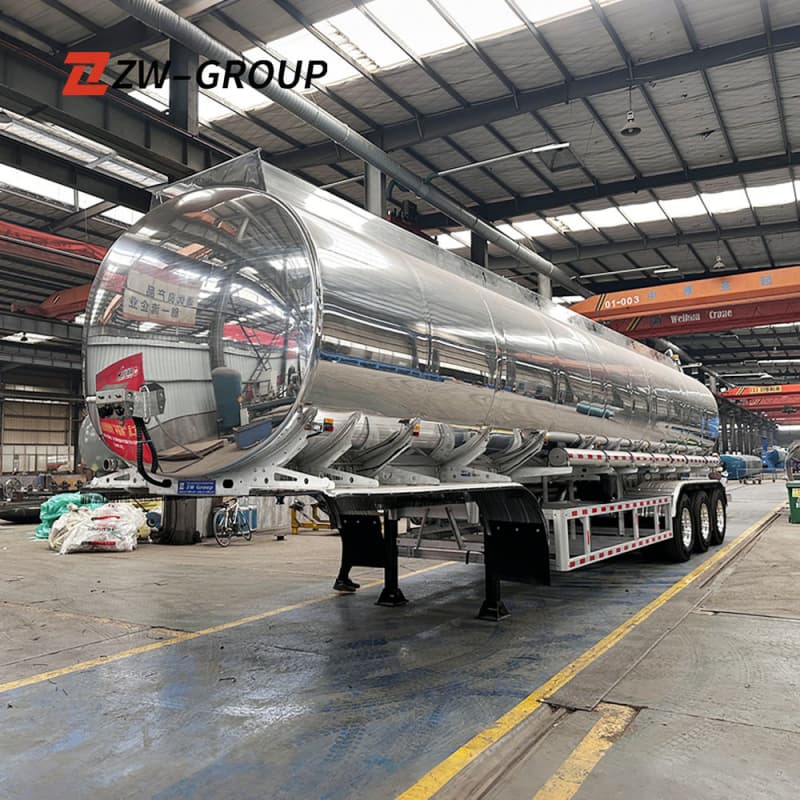

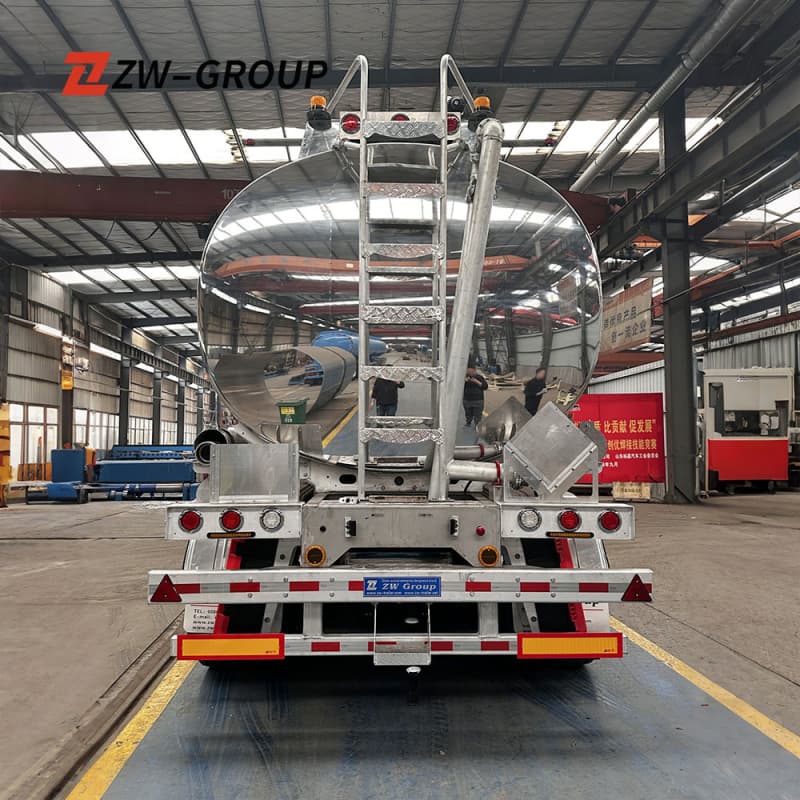

Real-shot image
Detailed specifications
| Item | Specification |
|---|---|
| Capacity | 48,500 L (48.5 m³); 6 compartments (15,300 / 11,500 / 7,700 / 6,000 / 4,000 / 4,000 L) |
| Tank Material & Thickness | 5182 Aluminum alloy; Head ~7.8 mm, Body ~7.0 mm, Anti-wave 6.0 mm |
| Frame | Aluminum alloy 6061 T-type integrated longitudinal beam; H-type 304 stainless steel walking mechanism (reinforced) |
| Axles & Suspension | BPW 12T × 3 axles (total ~36T rating); BPW 3-axle air suspension with front axle liftable |
| Discharge & Valves | 6 × CIVACON aluminum subsea valves & discharge valves; 3" and 4" discharge piping; CIVACON anti-overflow probes |
| Safety & Controls | WABCO ABS 4S/2M; overflow prevention system; 2 × 8kg fire extinguishers |
| Tires & Rims | Hankook 295/80R22.5 × 12 + 1 spare; Zhengxing forged aluminum rims (9.0×R22.5) |
| Surface Finish | Tank mirror polishing + stainless steel pickling & passivation |
| Accessories | Stainless steel/aluminum toolbox, ladder (aluminum alloy), spare tire rack |
| Customization | Compartment layout, piping, fittings, material finishes customizable per customer requirements |
Upgrade your vehicle
Get a tailored quote and a free compartment layout drawing — upgrade to a 48,500 L aluminum fuel trailer that maximizes payload, minimizes corrosion and ships with OEM-grade CIVACON fittings; request a quick quote to customize capacity and fittings for your fleet.
