Use Cases
Perfect for fuel depots, service-station resupply and commercial fleet refuelling, the trailer’s 45 m³ large-volume capacity and 5-compartment layout allow batched deliveries and mixed-product transport. Commonly used as an oil tanker / fuel transport trailer where flexible compartmenting and reliable road performance are required.

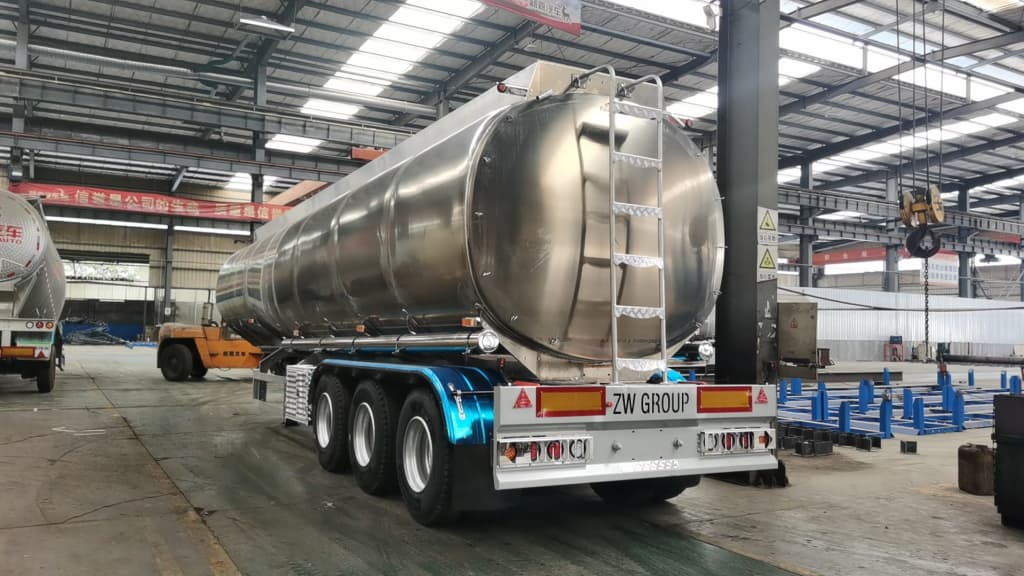

On-site photos
Detailed Description
This tanker pairs a corrosion-resistant aluminum tank (tank wall 5 mm) with a robust steel chassis — longitudinal beam made of Q355B — to achieve low tare weight while maintaining structural strength. With overall dimensions 12,000 × 2,500 × 3,500 mm and 45,000 L distributed across 5 compartments, it maximizes usable volume and improves payload efficiency for each run. (Advantages: large usable volume, lighter tank weight, customizable compartmenting.)
The design includes functional safety and service features: 4 mm wave-breaking plates, 6 mm head thickness, factory standard hoarding walkway, manual folding handrails, 5 manhole covers, and emergency equipment (fire extinguishers, static conductive reel and belt). Chassis components — ZW 13T × 3 axles, mechanical suspension, 12R22.5 tires and 9.0R22.5 rims — deliver stable handling under heavy loads; valve boxes, discharge piping (3" × 6 m × 2 pcs) and optional valve layouts are available per customer specification. (Advantages: robust safety features, heavy-duty axle/suspension package, tailored valve/discharge options.)

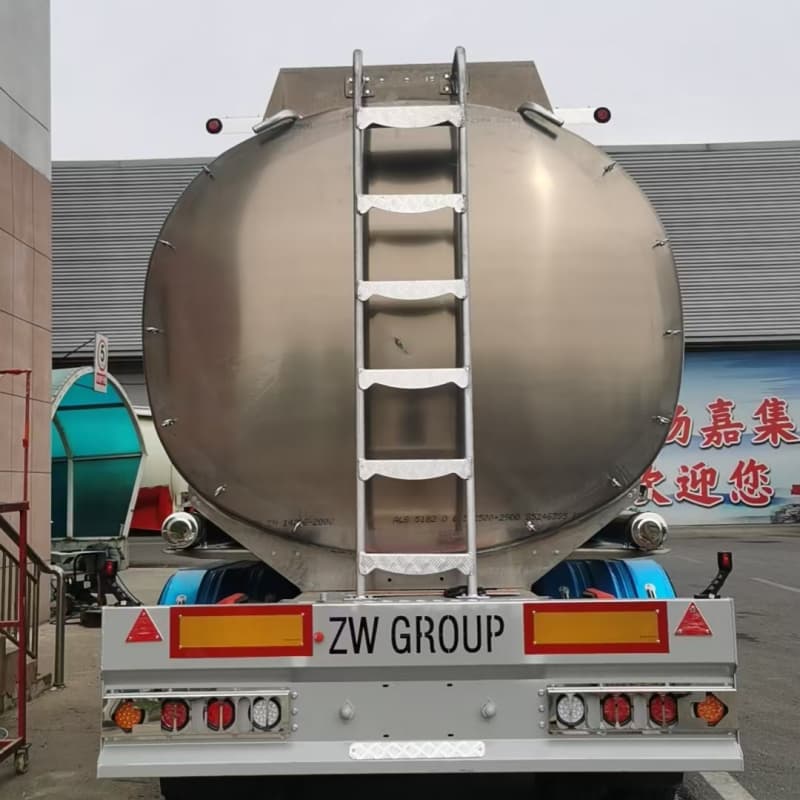

Real-shot image
Detailed specifications
| Item | Specification |
|---|---|
| Model / Name | Aluminum Alloy Fuel Tanker Trailer — 45 m³, 3 Axles |
| Capacity | 45,000 L (45 m³) |
| Overall dimensions (L×W×H) | 12,000 × 2,500 × 3,500 mm |
| Compartments | 5 compartments |
| Tank body thickness | 5 mm (aluminum alloy) |
| Head thickness | 6 mm |
| Wave-breaking plate thickness | 4 mm |
| Longitudinal beam | Q355B steel |
| Axles & suspension | ZW 13T × 3 axles; mechanical suspension |
| Tires & rims | 12R22.5 × 12 pcs; steel rim 9.0R22.5 × 12 pcs |
