Use Cases
Common use cases include bulk construction aggregates (sand, gravel), roadworks spoil, and scrap/materials transport where efficient end-tipping is required. Also popular as a rear-dump / tipper trailer for contractors, quarries and municipal fleets that need reliable payload handling and fast unload cycles.
On-site photos
Detailed Description

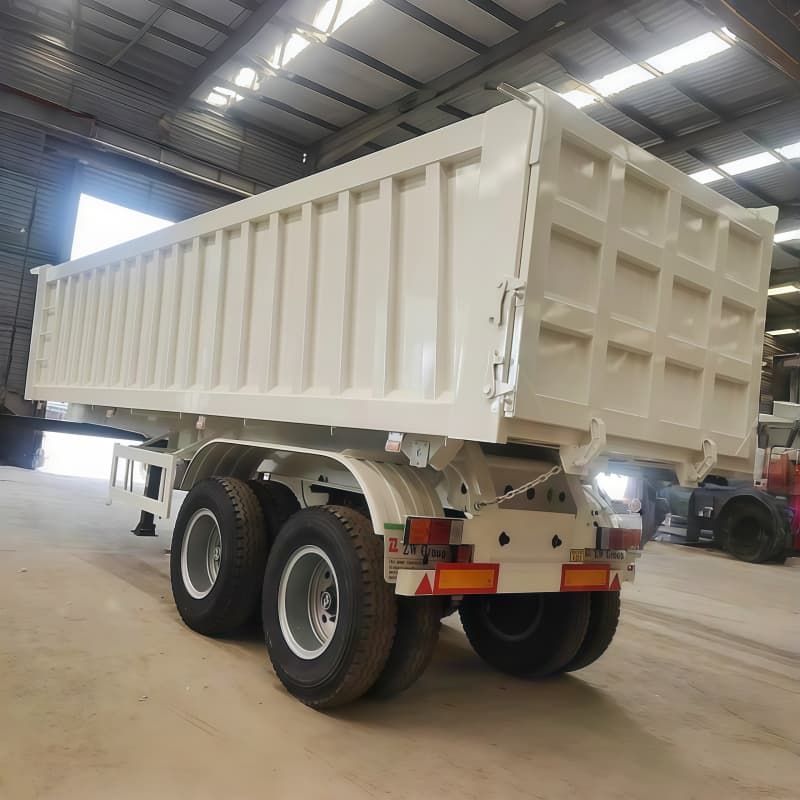

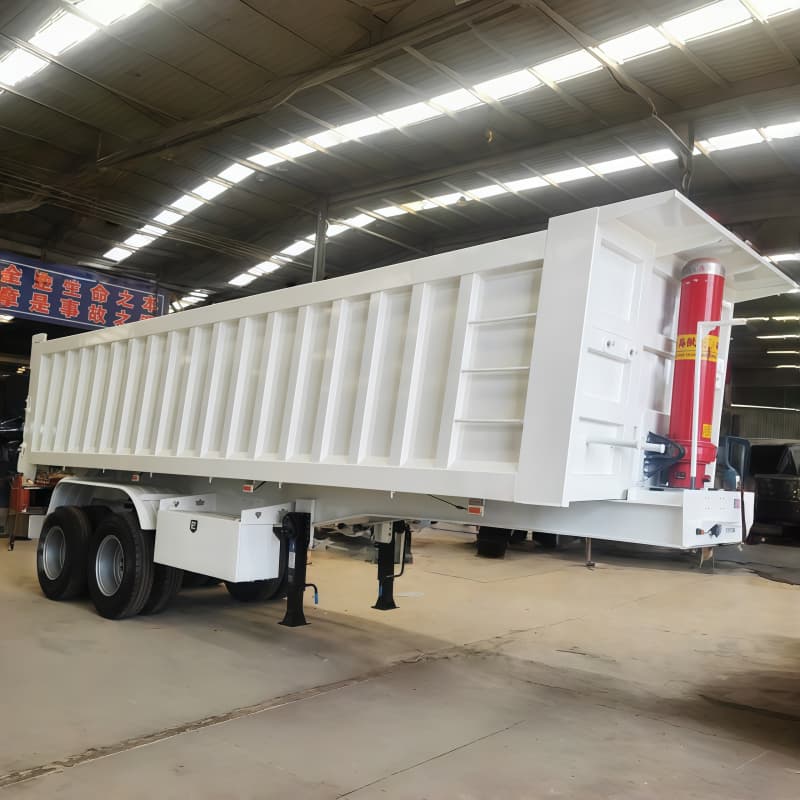

This 2-axle end dump semi trailer features a welded steel trough body optimized for high volume and durability. The trailer’s typical cargo volume (~22 m³) and payload (~18,000 kg) make it ideal for medium-to-large load runs; the reinforced chassis and cross-member layout deliver excellent torsional strength for loaded work.
The hydraulic tipping pack (single or two-stage options), heavy-duty tailgate with secure locking, and commercial-grade suspension & axles ensure fast, safe unloading and low maintenance. Standard features include air brakes, full lighting kit, and multiple tie-down points; optional upgrades (hardox lining, heavier axles, tarp system) are available on request.

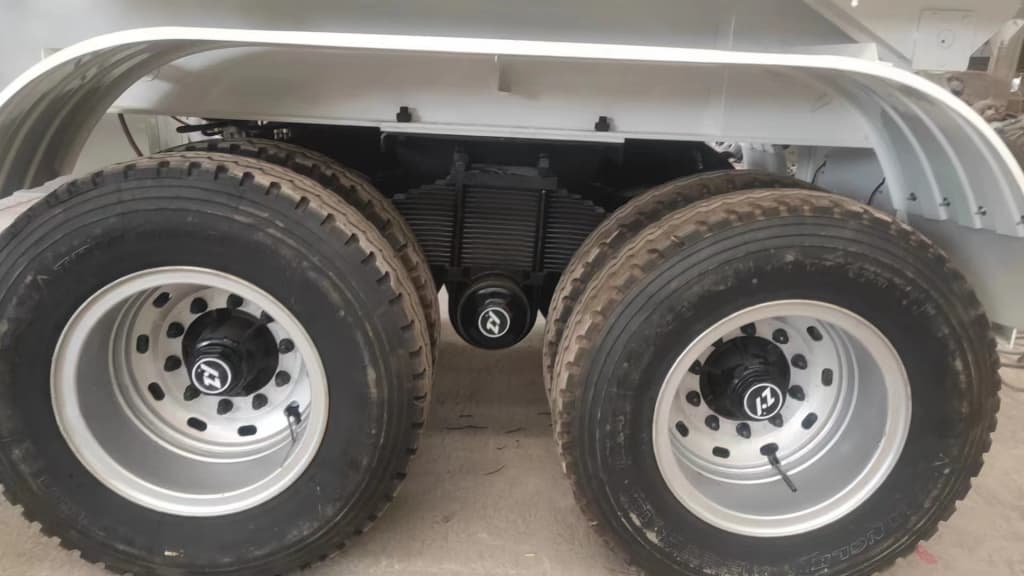

Real-shot image
Detailed specifications
| Specification | Typical value / option |
|---|---|
| Model / Type | End Dump Semi Trailer — 2 Axles (Rear Dump / Tipper) |
| Condition | New / Used (refurbished options available) |
| Color | White (custom colors available) |
| Body material | Welded high-strength steel (optional Hardox wear liners) |
| Cargo volume | ~22 m³ (≈28.8 yd³) — adjustable 18–26 m³ |
| Payload (max) | ~18,000 kg (18 tonnes) — depends on axle spec & local GVW limits |
| Axles | Tandem 2 × 9,000–10,000 kg capacity (spring/air suspension options) |
| Tipping system | Hydraulic single-stage (upgrade to two-stage available) |
| Brakes & safety | Full air brakes, ABS optional, rear tailgate lock |
| Tires & rims | 11R22.5 (or metric equivalent), steel rims; spares optional |
Upgrade your vehicle
Upgrade your fleet now — request a tailored quote to secure higher payloads and faster turnaround with factory customization (limited stock on new units).
