Use Cases
Commonly used in quarry, mining, road construction and bulk aggregate transport, this end-dump trailer / dump semi-trailer excels at moving sand, gravel, crushed stone and other heavy bulk materials. Its large volume and high payload make it ideal for long-haul material delivery, fleet contractors, and seasonal construction projects where efficiency and uptime matter.
On-site photos
Detailed Description
Built on a reinforced steel frame, the trailer features a wear-resistant steel box (optional Hardox lining) with a high-strength subframe and full-length crossmembers to ensure structural stability under 80-ton payloads. The hydraulic end-dump system uses a 2-stage cylinder and high-pressure pump for fast, reliable unloading; options include single- or dual-cylinder lift and reinforced tailgate types for sticky materials. Key advantages: high payload rating, wear-resistant body options, and fast hydraulic dumping.
Chassis and running gear include 6 heavy-duty axles (axle rating configurable), leaf-spring or optional air suspension, full air braking with ABS, and standard commercial tire sizes (e.g., 12R22.5). Factory customization covers box length/height, paint color (standard yellow shown), axle spacing, suspension type, tarp systems, onboard weighing, and corrosion protection — enabling you to specify the trailer to match local road rules and load profiles. Customizability and compatibility with local regulations are core selling points.

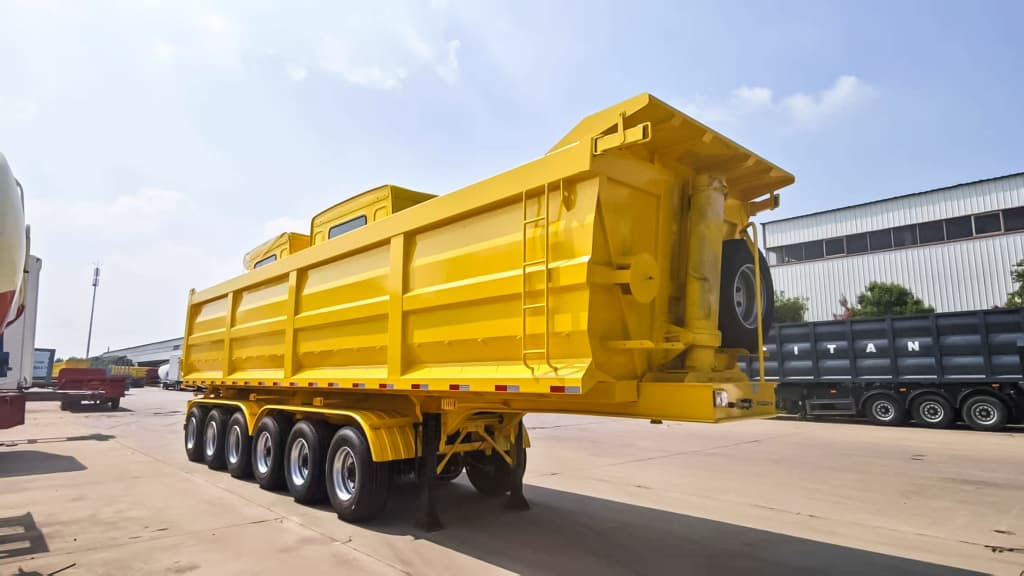

Real-shot image
Detailed specifications
| Item | Specification (typical / configurable) |
|---|---|
| Product name | End Dump Semi Trailer — 80t, 6 Axles (Yellow) |
| Rated payload | 80,000 kg (80 t) |
| Box volume | ≈ 50 m³ (customizable 40–60 m³) |
| Box material | High-strength steel (Q345) — optional Hardox lining |
| Overall length | 12,000 mm (typical; body length configurable) |
| Overall width | 2,500 mm |
| Tare weight (approx.) | 14,000 kg (depends on spec & options) |
| Axles | 6 axles (axle rating configurable, e.g., 13,000 kg/axle) |
| Suspension | Leaf spring standard / Air suspension optional |
| Brakes & safety | Full air brake system with ABS; optional EBS / parking aids |
Upgrade your vehicle
Factory-direct pricing, rapid customization and proven 80-ton performance — request a fast quote now to lock in priority production slots and tailor the trailer to your site requirements.
