Use Cases
Commonly used for transporting timber, steel coils, palletized goods or agricultural products, the stake-style fence trailer (also called a side-fence trailer or stake semi-trailer) is ideal when secure lateral restraint and easy side loading/unloading are required. It suits logistics, forestry, construction and farm-to-market operations where volume and payload matter.

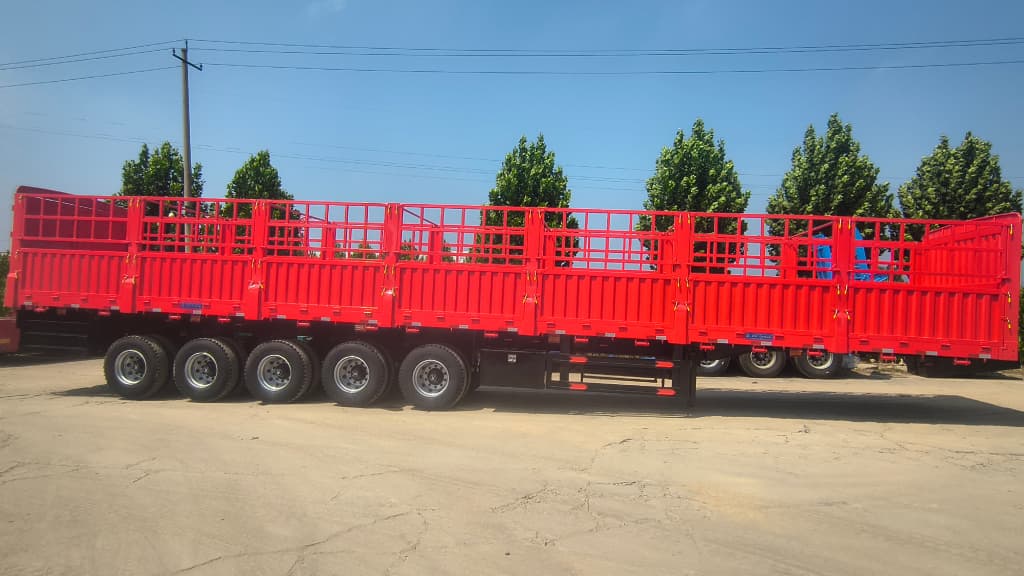

On-site photos
Detailed Description
This 5-axle fence semi-trailer combines a high-strength Q345B steel chassis with multi-axle load distribution (axles from FUWA or BPW recommended), delivering excellent structural strength and stable handling under heavy loads. Standard overall dimensions (example spec) are 13,500 × 2,500 × 2,900 mm (L×W×H), yielding a cargo volume of approximately 97.9 m³, and supports tire options such as 12R22.5 / 315/80R22.5 / 12.00R20 for matched road performance.
The trailer is engineered for heavy-duty payloads — typical loading capacity up to 80 tons (≈80,000 kg) — with mechanical suspension for rugged reliability and a choice of king-pin sizes (2" / 50# or 3.5" / 90#) to fit different tractors. Rims (9.00-22.5 or 8.5-20) and configurable axle setups make it adaptable for high payload transport, whether new or used units.

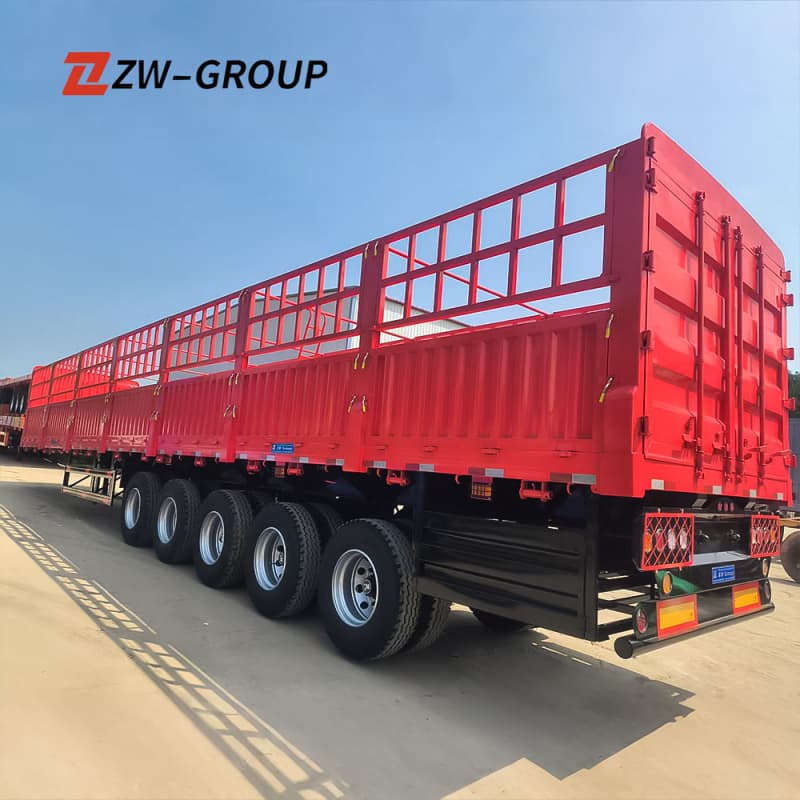

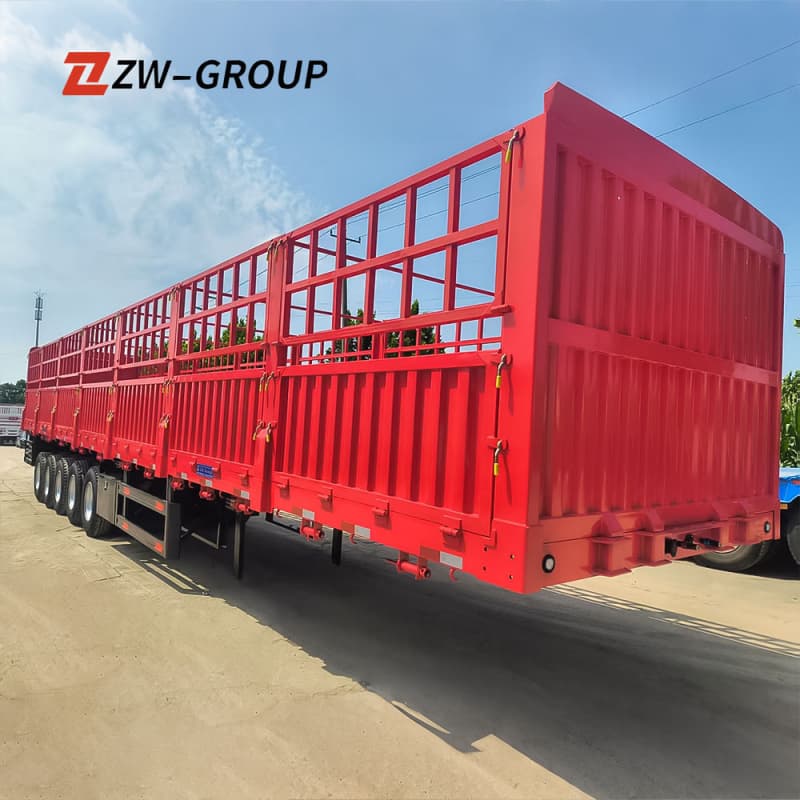

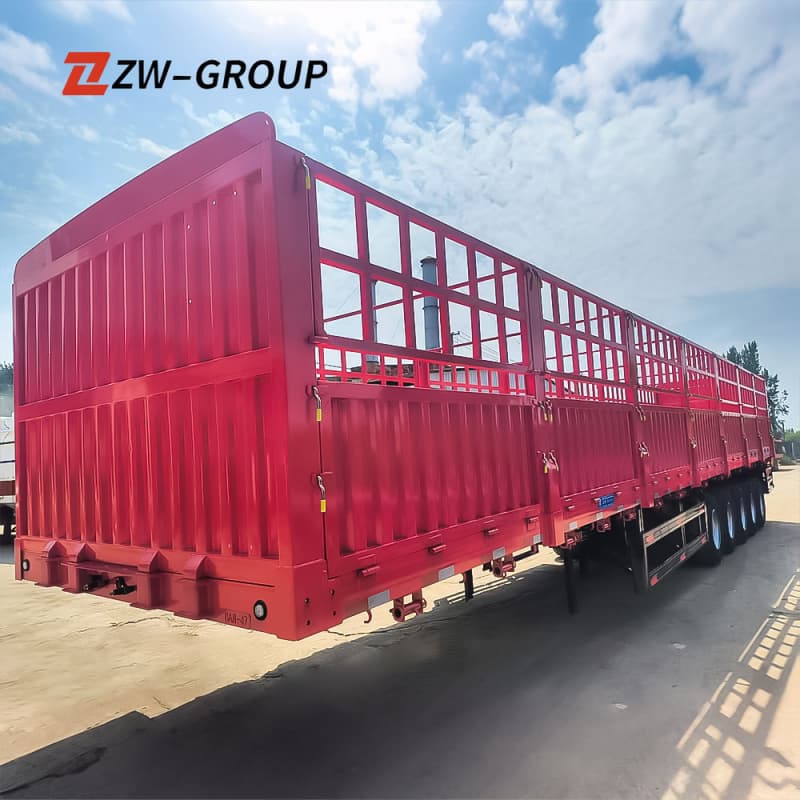

Real-shot image
Detailed specifications
| Item | Specification |
|---|---|
| Product Name | Fence Semi Trailer — 5 Axles (Red) |
| Type | 5-Axle Fence / Stake Semi-Trailer |
| Overall Dimensions (L×W×H) | 13,500 × 2,500 × 2,900 mm (reference) |
| Cargo Volume | ≈ 97.9 m³ |
| Loading Capacity (Payload) | Up to 80 tons (≈ 80,000 kg) |
| Chassis Material | High-strength Q345B steel |
| Axles | 4–5 units FUWA / BPW (configurable) |
| Suspension | Mechanical suspension |
| King Pin | 2" (50#) or 3.5" (90#) option |
| Tires & Rims | 12R22.5 / 315/80R22.5 / 12.00R20 — Rims 9.00-22.5 or 8.5-20 |
Upgrade your vehicle
Ready to boost your fleet’s capacity and cargo volume? Contact us now for a personalized quote and axle/option configuration to match your transport needs — fast delivery and competitive pricing available.
