Use Cases
This high-capacity trailer is predominantly used as a multi-purpose bulk cargo carrier for transporting agricultural products, bagged cement, coal, and loose goods that require robust containment. It also serves as an excellent livestock transport trailer, where the open fence structure ensures necessary ventilation for animals while the reinforced chassis handles the heavy, shifting payload stability on rough roads.

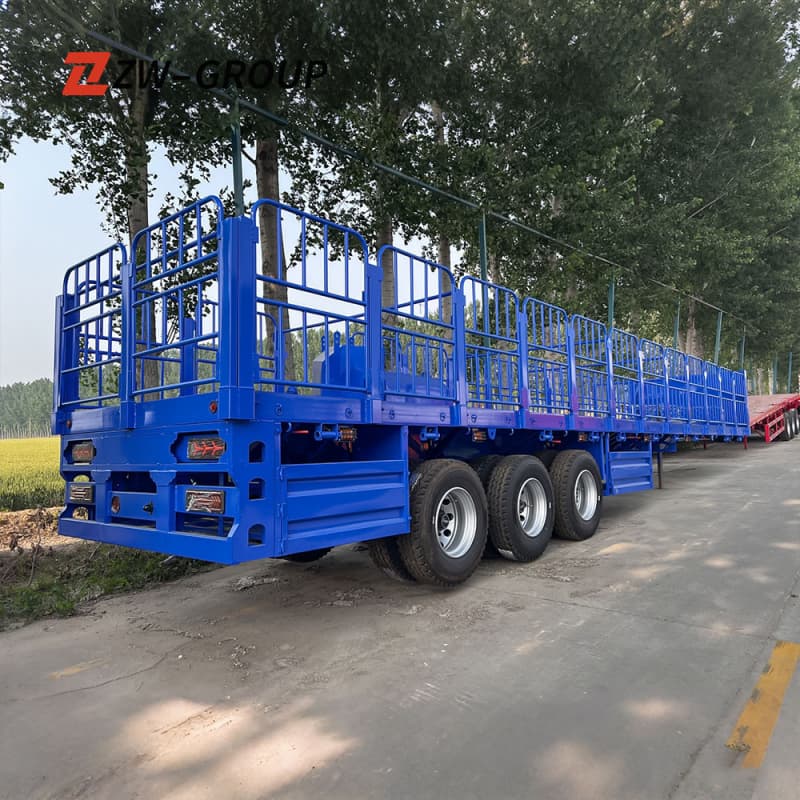

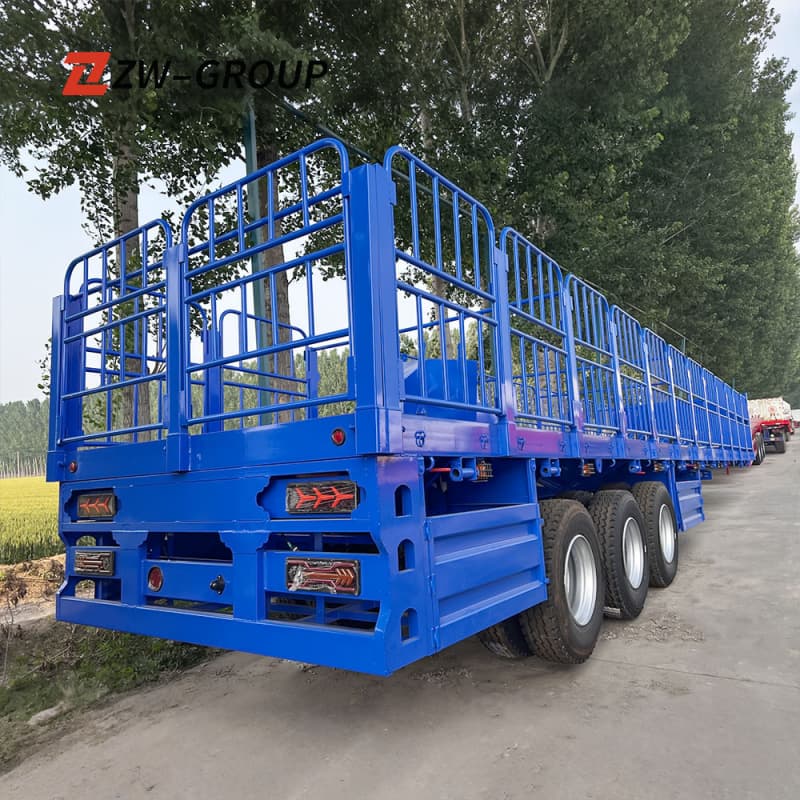

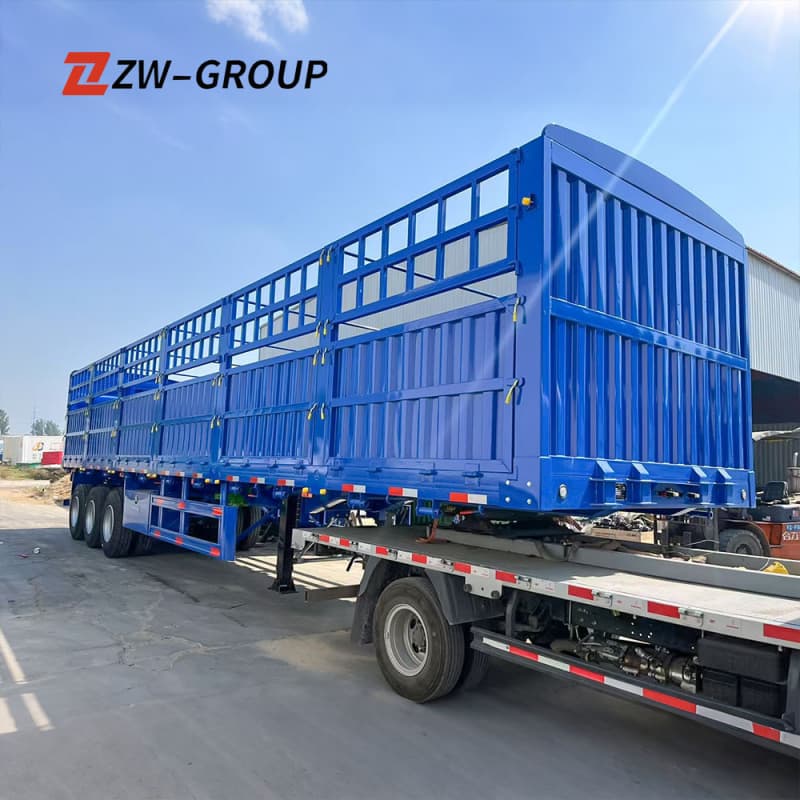

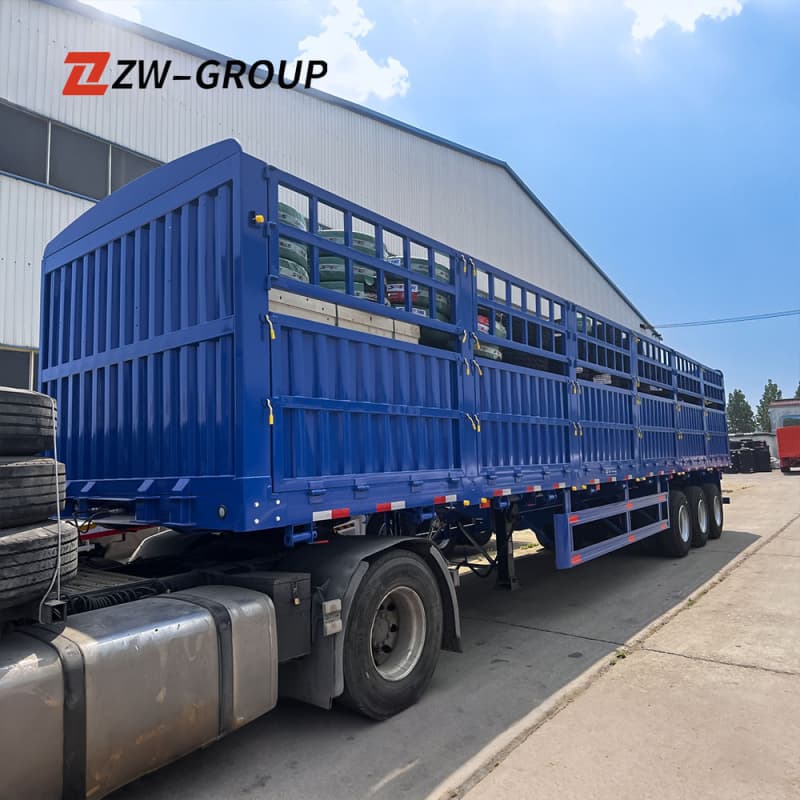

On-site photos
Detailed Description
High-Capacity & Robust Construction
The ZW Group 3 Axle Fence Semi Trailer is constructed using high-tensile steel (Q345/T700) to ensure a reliable 60,000kg loading weight without compromising structural integrity. Designed as a warehouse semi trailer, it features a 12.5m platform reinforced with a 500mm height main beam (14/8/16mm plate thickness). The 600mm sidewalls combined with 1200mm detachable fences allow for flexible cargo stacking, ensuring you can customize the volume based on specific trip requirements.
Superior Performance Components
To guarantee longevity and safety, we equip every unit with premium components, including 13-ton ZW Brand axles and a heavy-duty 10-leaf spring suspension system. The trailer rolls on durable 12R22.5 tubeless tires, offering excellent traction and heat dissipation. The chassis is finished with a dual-layer anti-corrosive polyurethane paint, shown here in Blue but available in any color, which provides superior resistance against rust and harsh weather conditions compared to standard alkyd paints.
Production Quality & Logistics Optimization
Our manufacturing process includes strict dynamic load testing for every unit to verify the braking performance of the Dual Line system and the stability of the welded diamond plate floor. For export, we utilize a cost-effective nude package with wax polishing to protect the trailer from seawater corrosion during shipping. Whether you need container locks for versatility or a specific toolkit configuration, ZW Group delivers a "factory direct" solution tailored to your fleet.

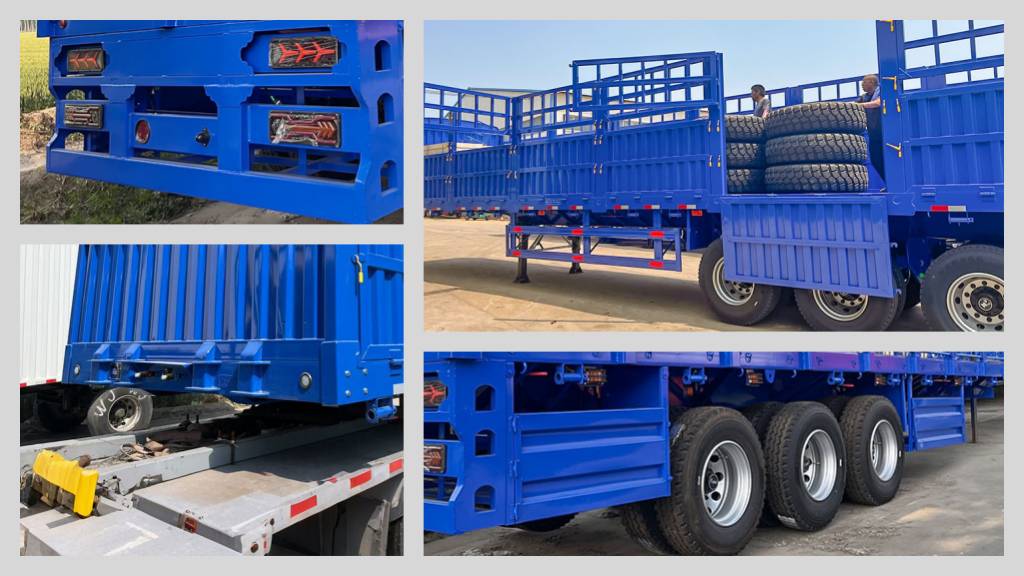

Real-shot image
Detailed specifications
| Parameter | Specification |
| Product Name | 3 Axle Fence Semi Trailer (Stake Trailer) |
| Loading Capacity | 60,000 kg (60 Tons) |
| Overall Dimension | 12500 mm × 2500 mm × 3350 mm |
| Main Beam | Q345 Steel, Height 500mm, Upper 14mm, Middle 8mm, Down 16mm |
| Axles | 3 Axles, 13 Ton Capacity (ZW Brand/FUWA/BPW Optional) |
| Suspension | Heavy Duty Leaf Spring Suspension (10/10/10 layers) |
| Tire Specs | 12R22.5 Tubeless Tires (12 units + Spare) |
| Fence/Wall Height | Sidewall: 600mm |
| Brake System | Dual Line Braking System with 6 Big Chambers |
| Landing Gear | 28 Ton Heavy Duty, Manual Operation |
FAQ
Q1: Can the fence height be customized for different cargo types?
A: Yes, the fence and sidewall heights are fully customizable. Standard heights are 600mm sidewall + 1200mm fence, but we can adjust this to 1.5m, 1.8m, or other heights to suit your specific bulk cargo or livestock needs.
Q2: What is the lead time for a 60-ton fence semi trailer?
A: Standard production time is typically 15-20 working days after receiving the deposit. For urgent orders or standard stock models, we can often expedite this timeline.
Q3: How do you ship the trailer to keep costs low?
A: We usually ship via Bulk Cargo or RORO (Roll-on/Roll-off) ships to ensure the trailer arrives fully assembled. We can also design the trailer to be stacked (2-3 units together) to significantly reduce ocean freight costs.
Q4: Is the trailer suitable for African road conditions?
A: Absolutely. Our trailers are specifically reinforced for rough road conditions common in Africa and Southeast Asia. We use a thickened suspension system and strengthened main beams to prevent deformation.
