Use Cases
Common use cases include regional and cross-border transport of 40ft containers, machinery and oversized palletized goods, plus ad-hoc heavy cargo moves where a deck/platform trailer is required. Ideal for fleet operators and leasing companies who need a versatile container-ready deck trailer that can be tailored to route-specific payloads.

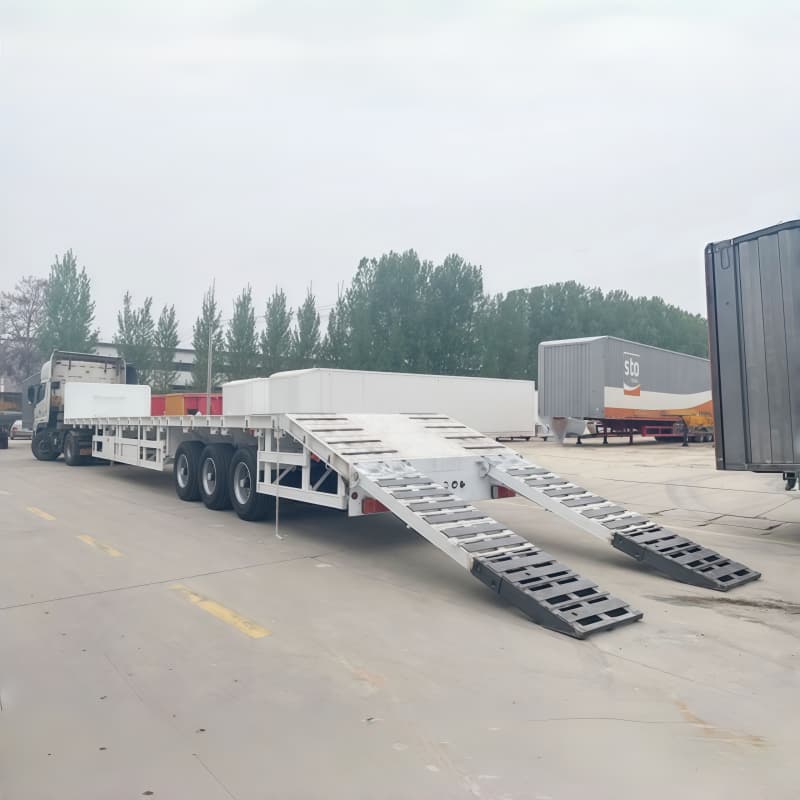

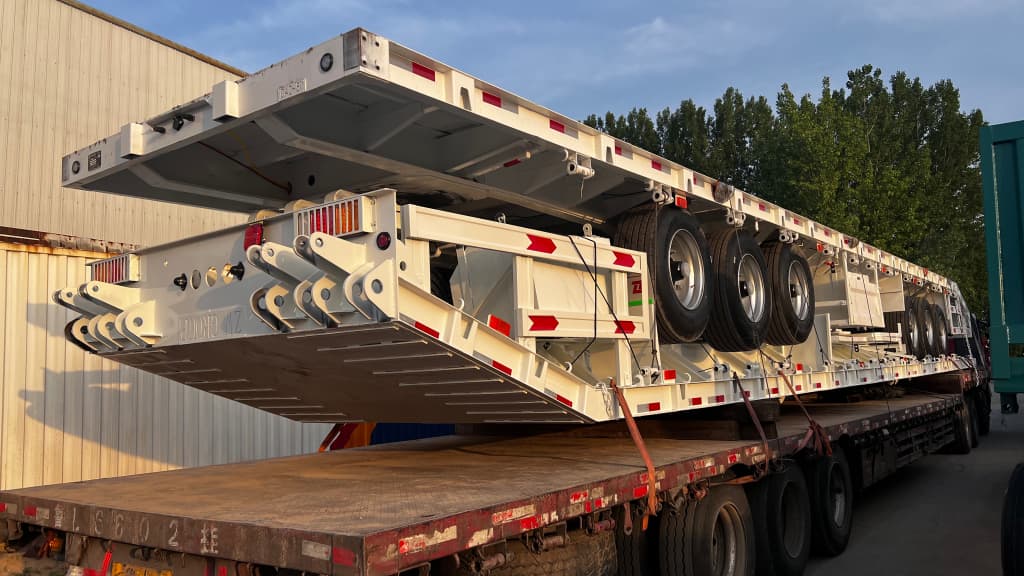

On-site photos
Detailed Description
The trailer’s standard overall dimensions are 12,500 × 2,500 × 1,550 mm, giving a deck area of 31.25 m² and an approximate deck “volume” footprint of 48.44 m³ (useful for estimating covered/stacked cargo), with a tare weight commonly around ~7,000–7,500 kg. It is built around a high-strength main beam (upper plate ~14 mm, middle ~8 mm, lower plate ~16 mm) and typically uses 3 × 13-ton axles, making it balanced for regional heavy duty work.
The equipment set typically includes 12 container twist locks (ISO), 12 × 12R22.5 tubeless tires, 28T manual landing gear (JOST or equivalent), 2” or 3.5” kingpin options, and a dual-line air brake system; suspension is commonly 10/10/10 leaf springs (mechanical) though air or bogie options are available for higher payload variants. Advantages: high interchangeability of parts (axles/tires/landing gear), ISO-standard container locks, and multiple suspension/axle options for customization.

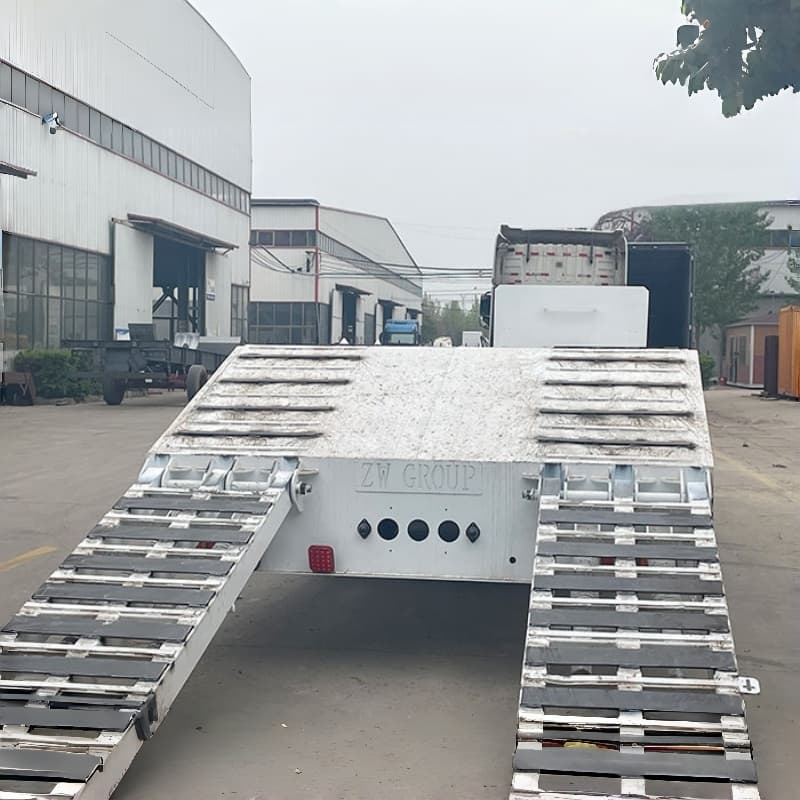

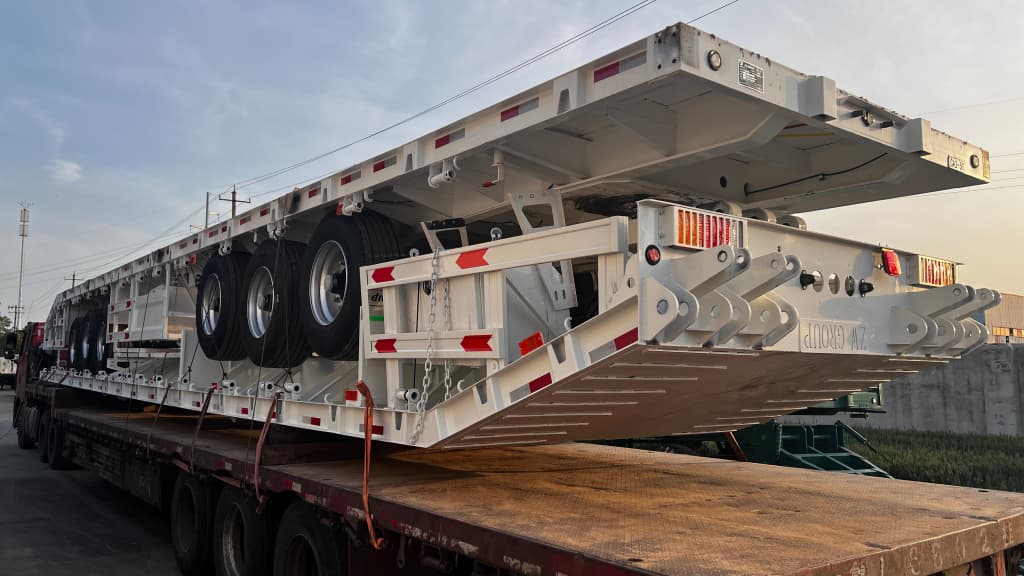

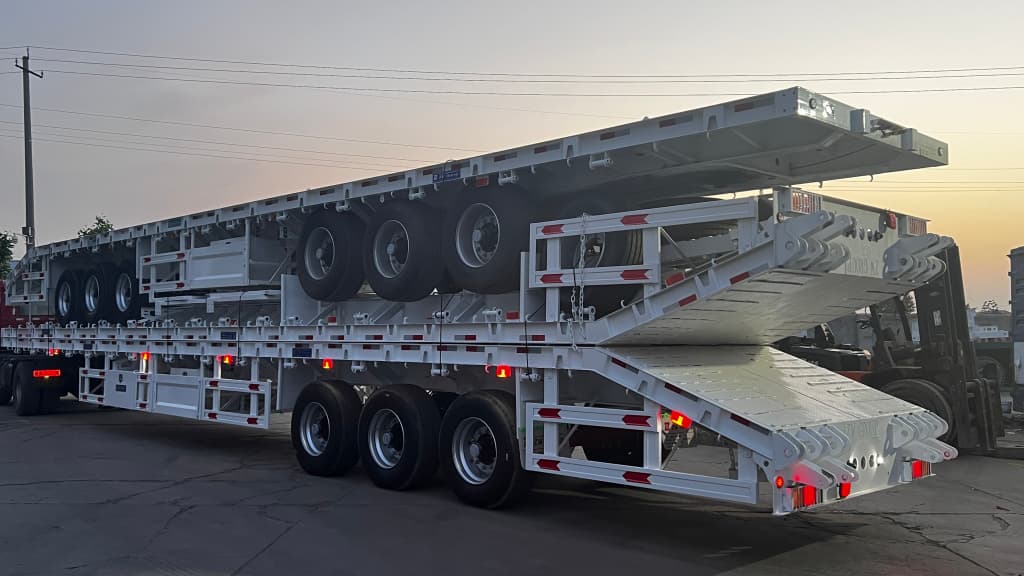

Real-shot image
Detailed specifications
| Item | Spec (typical / configurable) |
|---|---|
| Model | 40ft Flatbed Semi Trailer — 3 Axles (45t nominal payload) |
| Overall dimensions (L×W×H) | 12,500 × 2,500 × 1,550 mm. |
| Deck area / approx. volume | 31.25 m² ; ~48.44 m³ (12.5 m × 2.5 m × 1.55 m) |
| Tare weight | ~7,000–7,500 kg (depends on options). |
| Nominal payload (configurable) | 35,000 kg (factory can offer 40–60 t / heavy versions up to ~80 t). |
| Axles | 3 × 13T (FUWA / ZW / BPW options). |
| Tires & rims | 12 × 12R22.5 tubeless (common); rim 9.00×22.5 ISO. |
| Suspension | Mechanical leaf spring (10/10/10) — air/bogie optional. |
| Kingpin | 2" (50mm) or 3.5" (90mm) bolt-in type (optional). |
| Accessories | 12 container twist locks, 28T landing gear, toolbox, spare wheel bracket, 24V electrical, dual air brakes. |
Upgrade your vehicle
Get a factory quote and free customizable drawing today — tell us your required payload, axle preference and paint color, and we’ll prepare a tailored offer with lead time and FOB/factory price.
