Use Cases
This multi-purpose platform trailer is primarily used for the efficient transport of 1x40ft or 2x20ft ISO containers, making it a staple for intermodal shipping. Additionally, the sturdy flatbed design allows for the secure hauling of bulk cargo such as steel pipes, lumber, and bagged cement, providing a flexible solution for diverse transportation needs.
On-site photos
Detailed Description
Superior Structural Integrity & Payload
Our 40ft container chassis is constructed using advanced Q345/T700 high-strength steel. The main beam features a 500mm height with reinforced upper (14mm) and lower (16mm) plates, ensuring the trailer handles a heavy payload capacity of up to 60 tons without deformation. Whether you call it a flat deck or a highbed trailer, the 3mm thick diamond plate platform prevents cargo slippage, while the customizable chassis design ensures compatibility with local road regulations in Africa, Southeast Asia, and South America.
Premium Components for Road Stability
To ensure longevity and safety on rough terrains, ZW Group equips this flatbed trailer with 3 heavy-duty axles (ZW/FUWA/BPW brands available) and a reliable mechanical leaf spring suspension system (10/10/10). The unit rolls on 12 units of wear-resistant 12R22.5 tubeless tires, providing excellent grip and load distribution. We use a dual-line braking system with large air chambers to guarantee responsive braking performance and driver safety under full load conditions.
Quality Manufacturing & Finishing
Every ZW Group trailer undergoes a rigorous production process, including automatic submerged arc welding for the main beams to prevent welding defects. Before delivery, we conduct strict loading tests and performance inspections to ensure zero defects. The finishing involves sandblasting followed by one coat of anti-corrosive primer and two coats of premium polyurethane paint (Cyan or custom), offering long-lasting rust resistance. For shipping, we utilize a proven wax-polished nude packing method to protect the trailer against seawater corrosion during ocean transit.
Real-shot image
Detailed specifications
| Parameter | Specification |
| Model | ZW Group 3 Axle 40ft Flatbed Semi Trailer |
| Dimension (LxWxH) | 12500mm * 2500mm * 1550mm |
| Loading Capacity | 50,000 kg - 60,000 kg (Customizable) |
| Axle | 3 Axles x 13 Ton (ZW/FUWA/BPW Optional) |
| Tire | 12R22.5 Tubeless, 12 pieces |
| Main Beam | Q345B Steel, Height 500mm, Upper 14mm, Lower 16mm |
| Twist Locks | 12 sets (For 1x40ft or 2x20ft containers) |
| Suspension | Mechanical Leaf Spring Suspension (10/10/10) |
| Landing Gear | 28 Ton Standard, Heavy Duty, Dual Speed |
| Color | Cyan (Standard) or Painted as client’s request |
Product FAQ
Q: Can this flatbed trailer carry both 20ft and 40ft containers?
A: Yes, it is equipped with 12 sets of high-quality container twist locks. It can securely transport one 40ft container or two 20ft containers simultaneously.
Q: What is the material of the main beam?
A: We use high-strength Q345 or T700 steel. The upper plate is 14mm, the lower plate is 16mm, and the middle web is 8mm (or thicker upon request), ensuring high durability and loading capacity.
Q: Can you customize the trailer for bad road conditions?
A: Absolutely. We can reinforce the suspension, use thicker leaf springs (e.g., 90mm*16mm), and upgrade the tires to accommodate rough terrain in specific target markets.
Q: How do you package the trailers for shipment to save freight costs?

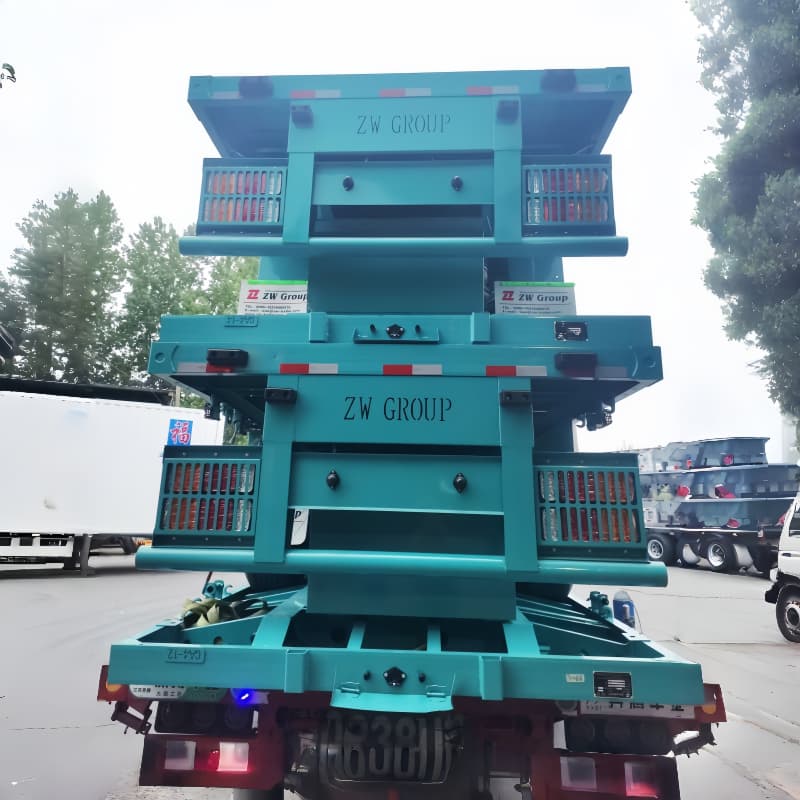

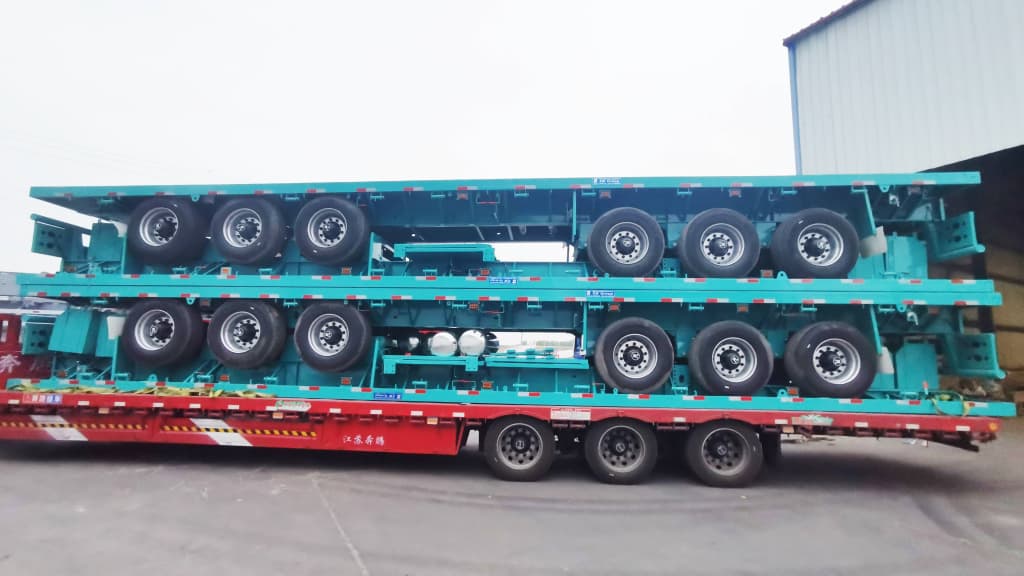

A: We usually stack 3 trailers together (Stack method) or use Container transport (cutting the rear part for bolting assembly) to minimize shipping volume and freight costs. All trailers are waxed before shipping to prevent corrosion.
Upgrade your vehicle
Get a tailored quote today — specify your required payload, axle brand and paint color, and we’ll offer a competitive FOB price and lead time for a 40ft 3-axle flatbed built to your spec.
