Use Cases
In heavy equipment transport or large‑scale freight operations, this flatbed trailer (or deck trailer) excels at carrying construction machinery, steel beams or oversized modules on long haul routes with ease. It also works perfectly for container logistics, being configured as a container carrier or heavy cargo carrier for industrial shipping of huge items.

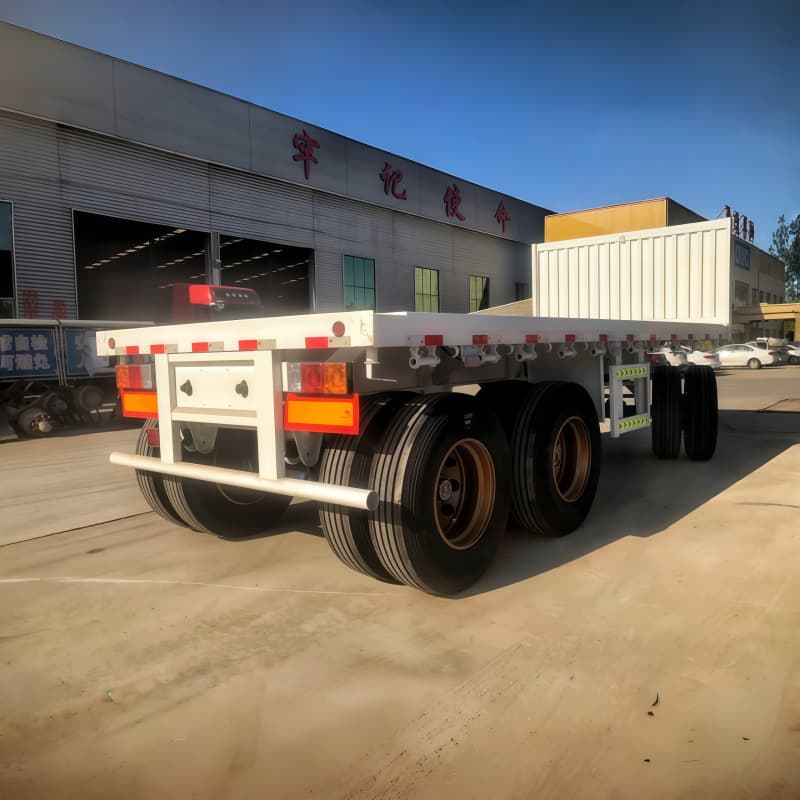

On-site photos
Detailed Description
This heavy‑duty flatbed semi‑trailer boasts a load capacity of 40–60 tons, with a typical deck dimension of about 12.5 m × 2.5 m × 1.55 m (L×W×H) for the platform version. The robust frame uses a high‑tensile steel main beam (e.g., top flange ~14 mm, bottom flange ~16 mm) for superior strength and durability.
Additionally, this deck transporter or flat deck semi‑trailer can be built with 2‑axle or 3‑axle configurations depending on required payload, and offers customised options such as container twist locks, special suspension types, and tailored steel finish to serve your exact application.

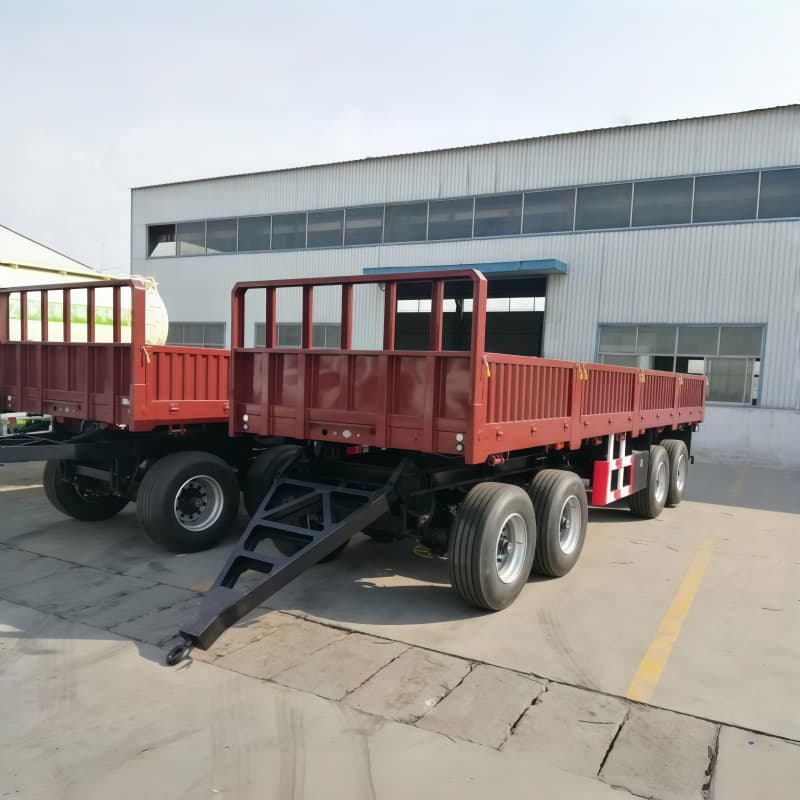

Real-shot image
Detailed specifications
| Specification | Typical Value / Note |
|---|---|
| Load Capacity (Payload) | 40 t – 60 t |
| Deck Dimensions | ~12.5 m × 2.5 m × 1.55 m (L×W×H) |
| Axle Configuration | 2 axles or 3 axles configurable |
| Main Beam Height | ~480–500 mm (example) |
| Main Beam Flange | Top flange ~14 mm, bottom flange ~16 mm |
| Suspension Type | Mechanical leaf spring (reinforced) |
| Tare Weight | Approx. 7 t (varies by spec) |
| Tires | 12r22.5 or 13r22.5 typical |
| Container Twist Locks | Optional (e.g., 12 units) |
| Customisation | Deck size, axle number, paint/coating, accessories |
Upgrade your vehicle
Don’t miss the chance to upgrade your fleet with a high‑capacity, custom‑built flatbed semi‑trailer that will boost your logistics efficiency — leave your inquiry now for tailored solutions!
