Use Cases
Common use cases include long-distance ready-mix delivery to highway and large-site projects and continuous concrete supply for high-volume urban or infrastructure construction. This transit mixer (or cement mixer truck) is ideal where high capacity and stable discharge performance are required.

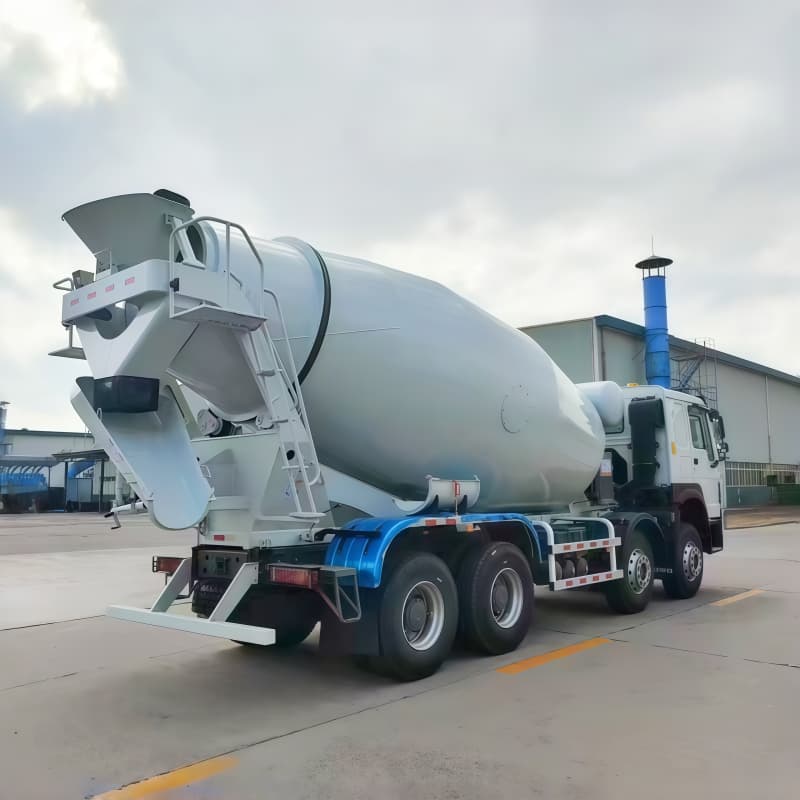

On-site photos
Detailed Description
The HOWO 380HP 8x4 concrete mixer (also referred to as a transit mixer or ready-mix truck) typically features a 380 HP D10-series engine (≈276 kW), heavy-duty transmission options (e.g., HW19710 / 10F/2R family), and wheelbase layouts such as 1800+3600+1350 mm for 8×4 models. Key advantages include high horsepower for sustained torque on gradients, a large geometric drum volume (example drum volumes 21–23.5 m³ on 14–16 m³ rated mixers) and robust chassis suited for heavy payloads.
In operation, rated mixing volumes vary (common ranges: 5.4–16 m³ depending on chassis and market), with geometric drum volumes larger than rated capacity to reduce residual. Typical curb weights and total mass depend on configuration — for example, an 8×4 export spec with a 5.5 m³ mixer may have curb weight ≈11,250 kg while large 8×4 models can have total mass up to ≈31,000 kg, giving an illustrative net payload capacity (total mass − curb weight) of ≈19,750 kg for the largest configs (actual payload varies by homologation and equipment). Advantages: strong torque & payload capability, low discharge residue (≤0.7%), and configurable emissions standards (China 4/5/6 or Euro III–VI depending on market).

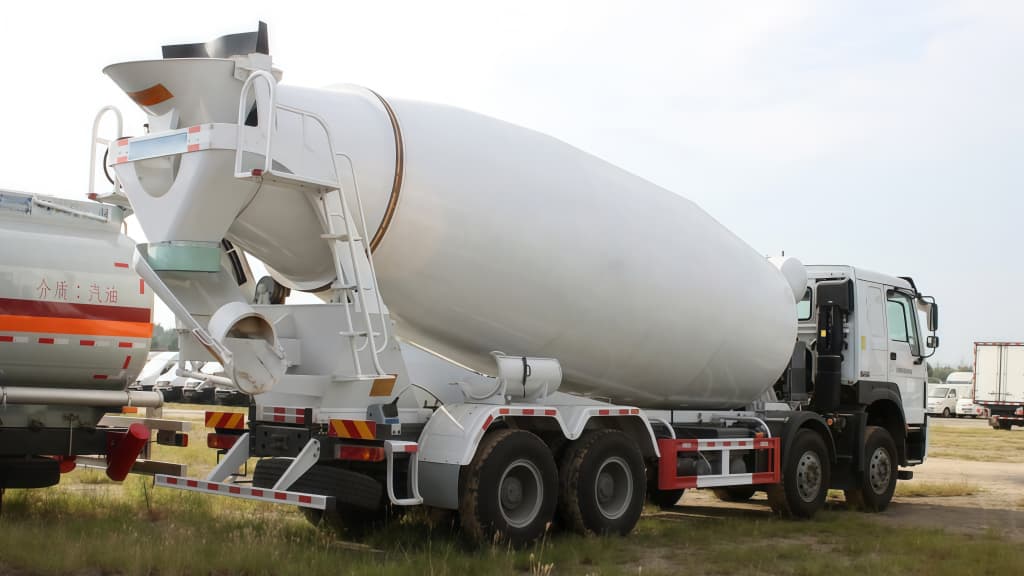

Real-shot image
Detailed specifications
| Specification | Value (typical / example) |
|---|---|
| Model / Product Name | HOWO Concrete Mixer Truck 380HP 8×4 |
| Drive / Chassis | 8×4 (also available 6×4, 6×4 export, 4×2 light variants) |
| Engine Power | 380 HP (≈276 kW) — D10 series (other options 340/400/440 hp) |
| Rated Mixing Capacity | 5.4 m³ – 16 m³ (model-dependent; common 5.5, 7.7, 8.0, 10, 12, 14, 16 m³) |
| Geometric Drum Volume | ≈13.5 – 23.5 m³ (larger than rated to reduce residue) |
| Transmission (example) | HW19710 / 10F/2R (many gearbox options per config) |
| Wheelbase | Common examples: 1800+3600+1350 mm (8×4); 3225+1350 mm or 3825+1350 mm (6×4) |
| Dimensions (L×W×H) | Typical ranges: ~8780–10190 × 2496–2550 × 3125–4000 mm (by model) |
| Total Mass / Curb Weight | Total mass up to ≈31,000 kg; curb weight examples 8,760–13,710 kg |
| Residual Discharge Rate | ≤0.5% – 0.7% (typical) |
Upgrade your vehicle
Upgrade to a 380 HP HOWO 8×4 to secure faster cycle times, larger payloads, and lower residual — request a quote now to get competitive pricing and tailored configuration options.
