Use Cases
Commonly used on construction sites, quarries and road-building projects, this HOWO 8×4 excels at transporting heavy aggregates and large loads thanks to its large cargo volume and strong axle ratings. Also popular as a fleet tipper for contractors who need a reliable heavy-duty dump/tipper truck with options for right/left-hand drive and tailored body design.
On-site photos
Detailed Description
-
Powertrain & performance — The truck is typically fitted with a CNHTC WD615 family diesel engine rated around 371–375 HP paired with the HW19710 10-speed gearbox, delivering strong torque for loaded climbs and highway runs. This combination supports the 8×4 layout and long-wheelbase chassis needed for high payloads. (Advantage: proven WD615 engine; heavy-duty gearbox; high torque for loaded operation.)
-
Load capacity & cargo body — Typical factory cargo bodies for the ZZ3317N3567W 8×4 are around 7.3–7.5 m long × 2.3 m wide × 1.5–1.7 m high (≈ 28–31 m³), built from 8mm bottom / 6–12mm sides steel, giving a practical payload class ≈ 40 tonnes for most road-legal configurations. Bodies are available in multiple shapes (U-shape, rectangular) and can be sized or reinforced per customer requirement. (Advantage: high volume → fewer trips; customizable box size and thickness.)
-
Chassis, axles & durability — The 8×4 HOWO uses heavy front HF9 axles (each ~9t) and tandem HC16 rear axles (each ~16t) with central double reduction and differential locks, heavy-duty leaf springs and optional upgraded tires (12.00R20). Manufacturing processes include full-frame welding, payload testing and quality painting/anti-corrosion finishing; vehicles are shipped with secure packaging and standard pre-delivery checks. (Advantage: reinforced axles & suspension; tested frame and professional paint/packaging.)

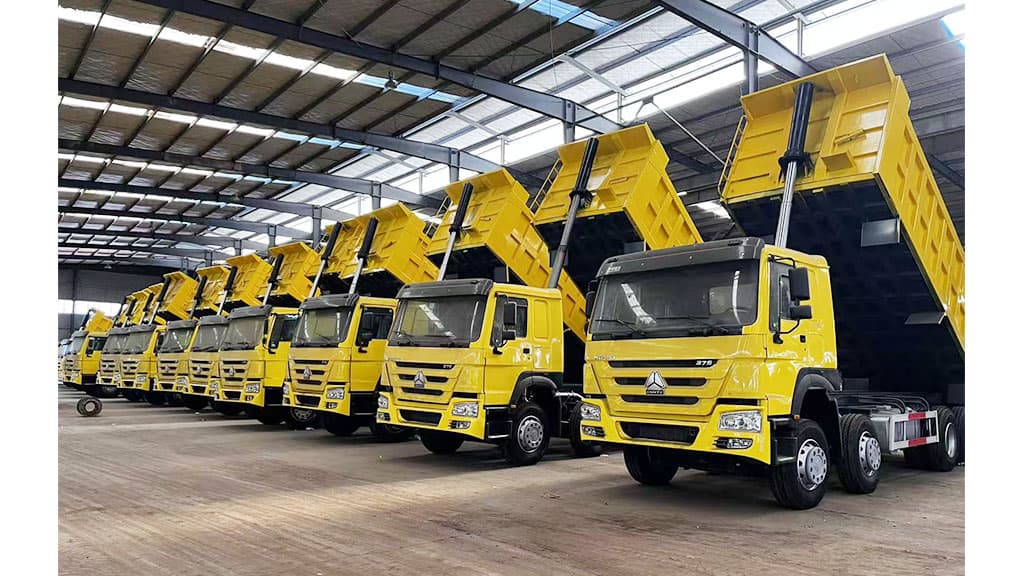

Real-shot image
Detailed specifications
| Item | Specification |
|---|---|
| Model | HOWO ZZ3257N3847E1 (6×4) |
| Engine (Power) | CNHTC WD615.95 — 375 HP (276 kW) |
| Max Torque | ≈ 1,500 Nm |
| Displacement | 9.726 L |
| Transmission | HW19710 — Manual, 10 forward gears |
| Drive Configuration | 6×4 |
| Loading Capacity | ~40-50 metric tons |
| Cargo Volume | ≈ 19.3–20.7 m³ (body 5.6–6.0 × 2.3 × 1.5 m) |
| Fuel Tank | 400 L |
| GVW (Gross Vehicle Weight) | 25,000 kg |
FAQ
Q: Is the truck available new and used?
A: Yes — ZW Group offers both new factory HOWO 8×4 tippers and inspected used units with refurbishment options.
Q: What is the typical payload and how is it measured?
A: For 8×4 HOWO tippers we quote a practical payload class around 40 tonnes; final legal payload depends on local GVW limits, axle configuration and body build.
Q: Can the cargo body be customized?
A: Absolutely — length, side height, steel thickness, reinforcement, tipping angle and paint color can be tailored to your needs.
Q: What emission standards and engine options exist?
A: Common options include WD615 variants meeting Euro II–Euro III (region and spec dependent); ZW Group can advise on compliant engine/emission packages for your market.
Q: What warranty and pre-delivery checks are included?
A: New trucks typically include factory warranty terms (refer to the sales contract); all units undergo PDI, leak/test checks, and secure packaging before shipment.
