Use Cases
Common uses include long-distance bulk fuel delivery to depots and service stations and mobile refueling / on-site fueling for construction, mining or aviation ground support. The HOWO TSG is ideal when operators need high payload capability and large single-trip capacity from a tanker truck / fuel tanker.

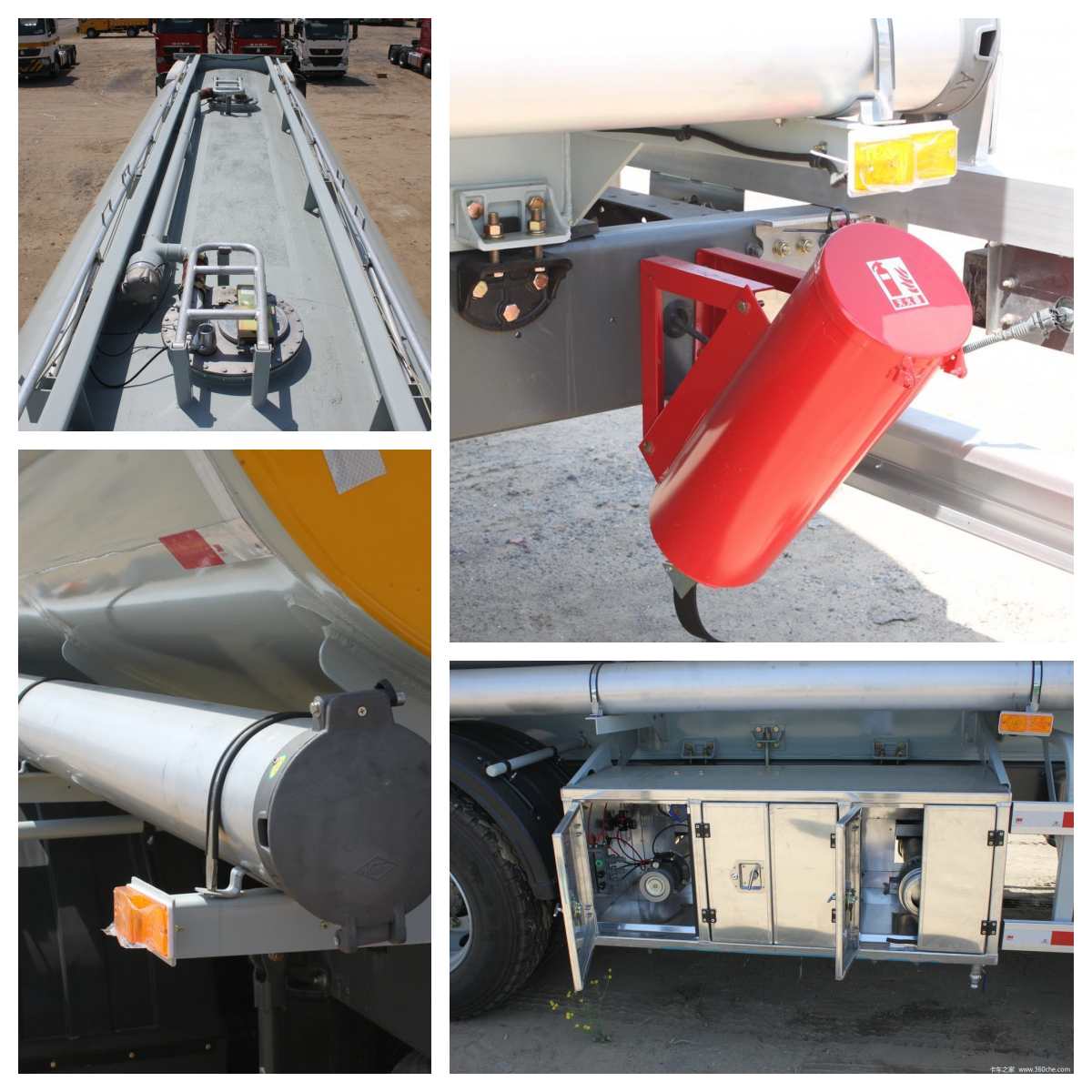

On-site photos
Detailed Description
The HOWO TSG 8×4 series pairs robust chassis and drivetrains (typical transmissions HW19710 10F+2R) with engine options in the 340–375 HP range (WD615 / WEICHAI / HOWO series depending on spec and emission standard). Tank volumes commonly range 25–35 m³ with compartment counts from 2 to 8 (4/6/8 are typical). Buyers can choose Q235/Q345 carbon steel for economical durability or AL5083 aluminum for lighter weight and better corrosion resistance — this flexibility is a strong selling point for mixed fleet use and different regulatory markets.
Safety and serviceability are emphasized: standard configurations include multiple manholes, sea valves/submerged outlets, baffles between compartments, and options for PTO-driven pumps, vapor recovery, overfill protection and grounding. With a design GVW around 31,000 kg (payload/axle loads vary by chosen chassis and local regulation), the TSG line balances high payload and stable handling for heavy tanker operation.

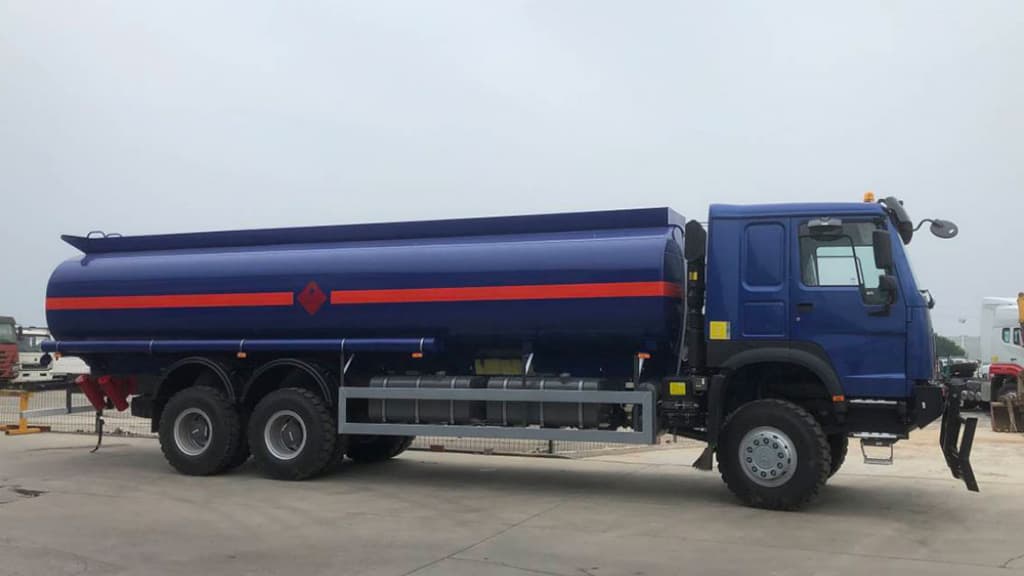

Real-shot image
Detailed specifications
| Feature | Typical Value / Option |
|---|---|
| Model / Configuration | HOWO TSG Fuel Tanker Truck — 8×4 chassis (TSG340 / TSG371 / TSG375) |
| Engine Power | 340 HP / 371 HP / 375 HP (WD615 / WEICHAI / HOWO variants depending on spec) |
| Tank Capacity | 25–35 m³ (25,000–35,000 L) (customizable) |
| Compartment Options | 2–8 chambers (common: 4 / 6 / 8) |
| Tank Material | Q235 / Q345 Carbon Steel or AL5083 Aluminum (optional) |
| Transmission | Manual 10F+2R (e.g., HW19710) — PTO option for pump drive |
| GVW / Payload | Typical GVW ~31,000 kg; payload depends on chassis and local regs |
| Typical Dimensions | Example: 11,950 × 2,550 × 3,650 mm (varies by spec) |
| Safety / Optional Equipment | Sea valves, submerged outlets, baffles, manholes, overfill protection, vapor recovery, grounding, PTO pumps |
| Typical Applications | Long-haul fuel distribution, mobile refueling, depot delivery, on-site fueling |
Upgrade your vehicle
Get a tailored quote now — request your preferred HP / tank capacity / compartment layout and we’ll return a competitive offer (new or certified used) with available factory configurations and optional safety packages.
