Use Cases
Common uses include heavy earthworks, quarry and mining haulage, and bulk road/building material transport where a durable tipper with large volume and high payload is required. The HOWO NX 8×4 is also a preferred choice for contractors who need a customizable dumper/tipper solution for site-specific boxes, tarpaulins or PTO equipment.
On-site photos
Detailed Description
Powertrain & performance — The HOWO NX 8×4 is offered with robust diesel engines in the 380–400 HP class (commonly WP12 or WD615 family depending on spec) paired with the HW19710 10F+2R transmission for strong gradeability and dependable low-speed torque for loaded climbs. Advantage: high horsepower for heavy loads.
Cargo body, capacity & payload — Typical cargo-body lengths range from ~6.2 m to 7.8 m (custom lengths available), giving cargo volumes commonly in the 21–30 m³ range (examples listed ~28.5 m³). For 8×4 heavy configurations, practical loading/payload is commonly marketed between ~40–60 tonnes (depending on local spec, body thickness and axle choice) — this truck is designed to be configured to meet higher payload needs within legal limits and client requirements. Advantage: large volume and heavy payload capability; fully customizable box size and thickness.

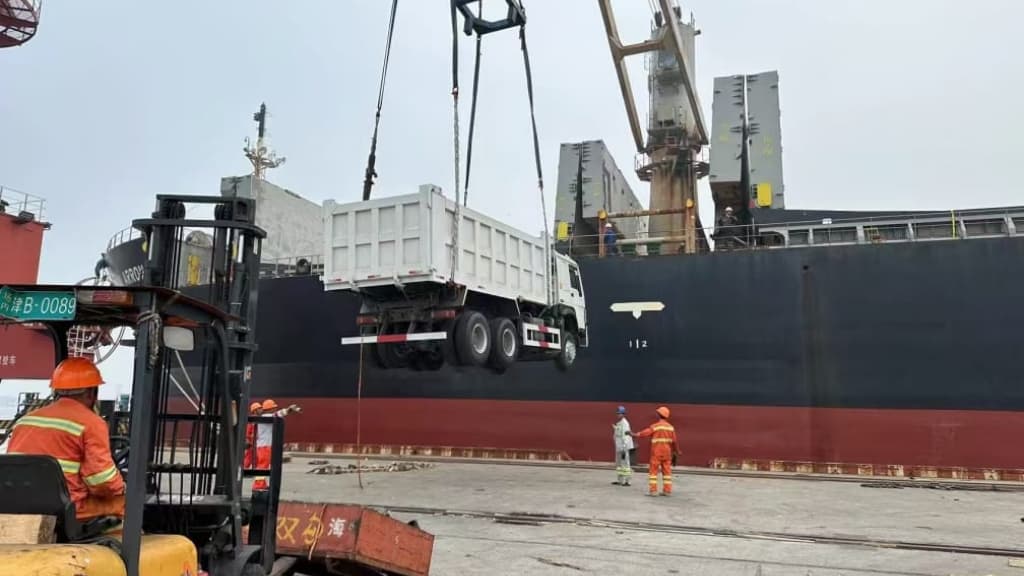

Chassis, axles, tires & build quality — The chassis uses heavy-section channel beams and reinforced mounting; front axles around 9–9.5 t and rear axles 16 t (double reduction options) are common on HOWO NX 8×4 tipper builds. Trucks are finished with durable paint, optional anti-corrosion coatings, radial 12.00–12R22.5 tires, heavy leaf-spring suspension and robust hydraulic tipping systems. ZW Group offers production QC, load testing and secure export packing for ocean/RO-RO shipping. Advantages: reinforced axles, tested load capacity, export packaging and quality control.

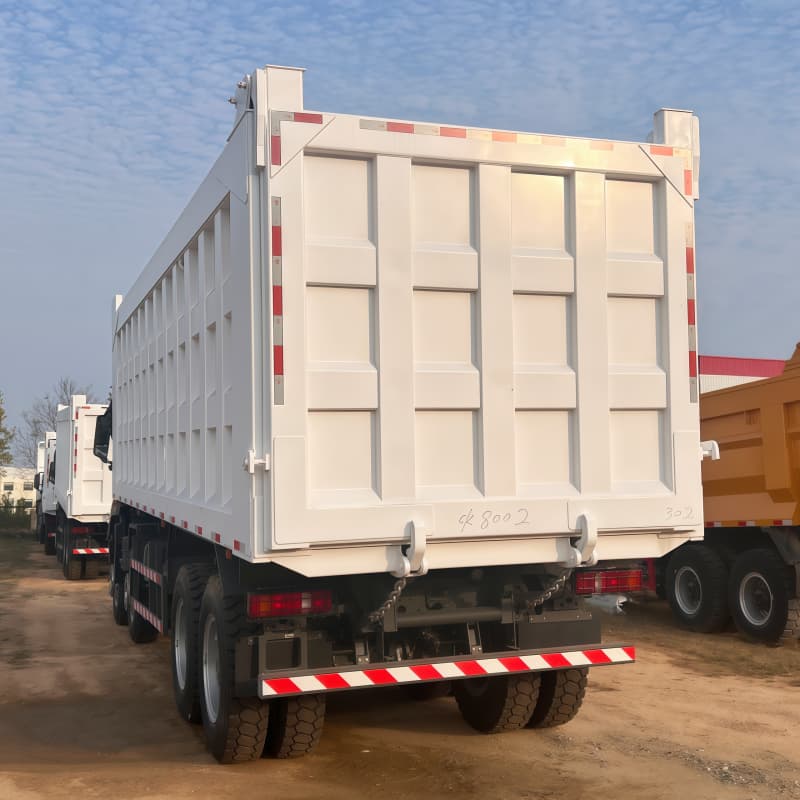

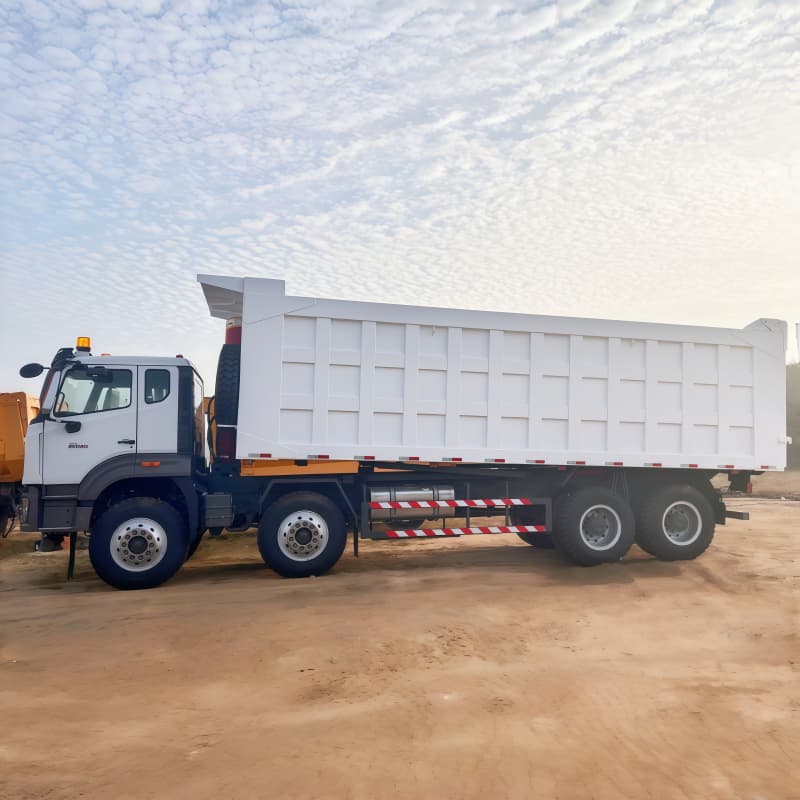

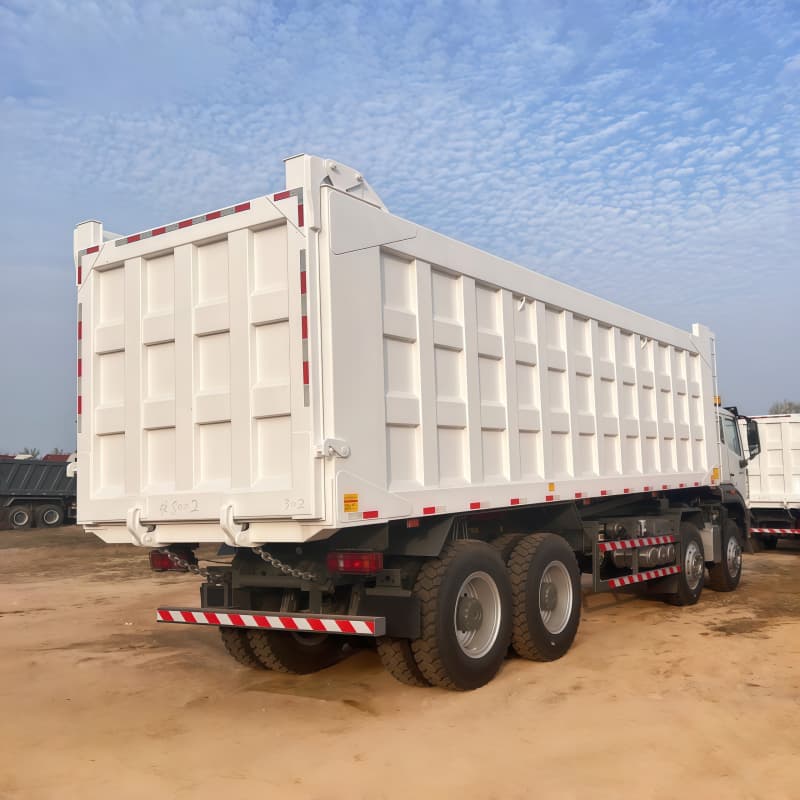

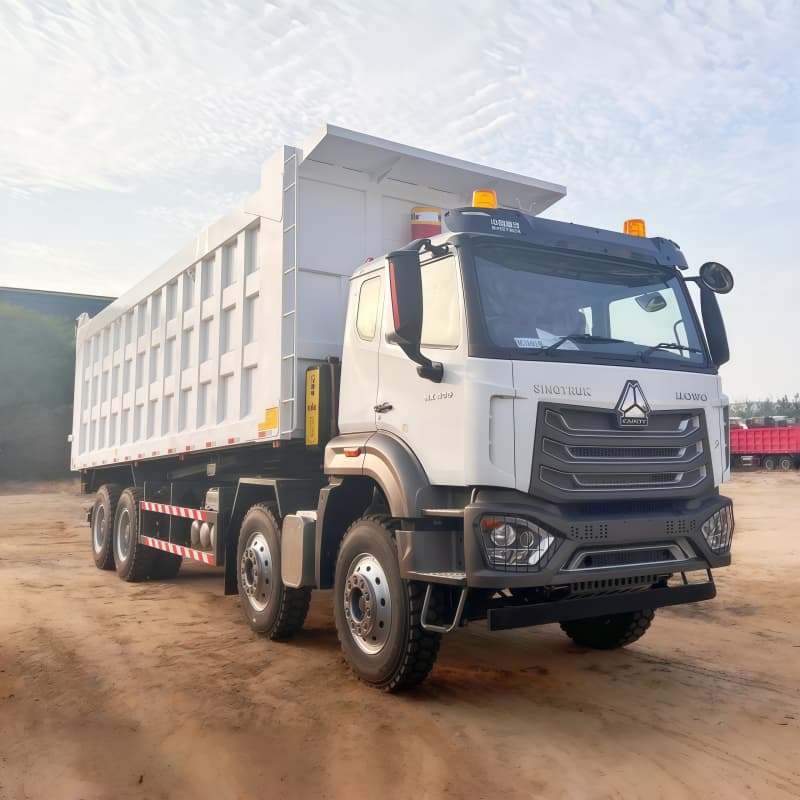

Real-shot image
FAQ
Q: What is the typical payload for the HOWO NX 8×4 400HP?
A: In heavy 8×4 configurations the truck is commonly configured for ~40–60 tonnes payload (final figure depends on local GVW limits, axle spec and body dimensions).
Q: Can the cargo body size and thickness be customized?
A: Yes — ZW Group customizes box length, side height, bottom/side steel thickness (typical bottom 8 mm / sides 6–12 mm options) and adds tarpaulin, tailboards or liners per client needs.
Q: What engines and transmissions are available?
A: Commonly offered with Weichai or CNHTC WD/WP engines in the 380–400 HP class and the HW19710 10F+2R gearbox.
Q: Lead time and production testing?
A: Typical production lead time depends on options and order volume (examples on supplier pages list ~30–60 working days after deposit); every truck undergoes load testing and QC before shipment.
Q: Do you supply spare parts and after-sales service?
A: Yes — ZW Group provides spare-parts kits and can arrange recommended service packages and shipping spares for international orders.
Detailed specifications
| Spec | Value |
|---|---|
| Model (example) | HOWO NX 8×4 (400 HP) |
| Drive configuration | 8×4, 12 wheels |
| Engine (typical) | WP12 / WD615 family — 380–400 HP. |
| Max power | 400 HP (typical 400 HP option available) |
| Transmission | HW19710 (10 forward + 2 reverse) |
| Cargo body (L×W×H) | 6,200–7,800 × 2,300 × 1,500–1,700 mm (customizable) |
| Cargo volume | ~21–30 m³ (examples: ~28.5 m³) |
| Typical payload / loading capacity | 40–60 tonnes (8×4 heavy spec, configurable) |
| GVW / Full load mass | ~25,000–31,000 kg (depending on spec) |
| Fuel tank | 300–400 L (option dependent) |
Upgrade your vehicle
Upgrade now to a higher-payload, large-volume HOWO NX 400HP 8×4 — request a custom quote and tell us your desired box size, rated payload and tarpaulin option so we can prepare a tailored specification and competitive lead time. Fill the inquiry now to receive a personalized spec sheet and FOB/CIF quote.
