Use Cases
Common use cases include construction site material handling and roadside/utility lifting, where the Howo NX functions as both a heavy-duty transport vehicle and a mobile crane. Its crane truck / lorry crane versatility makes it ideal for loading containers, placing precast concrete, and municipal utility work.

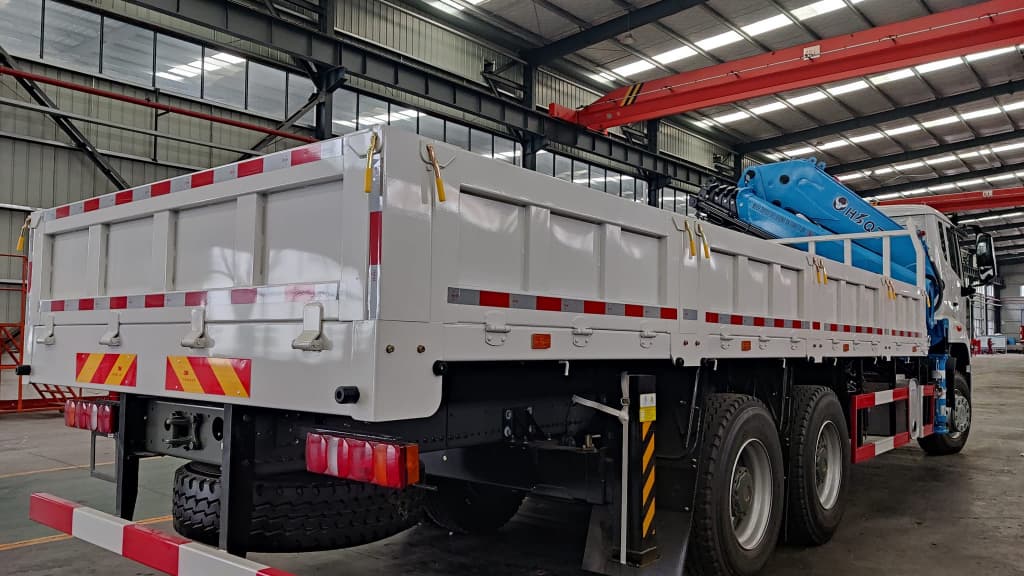

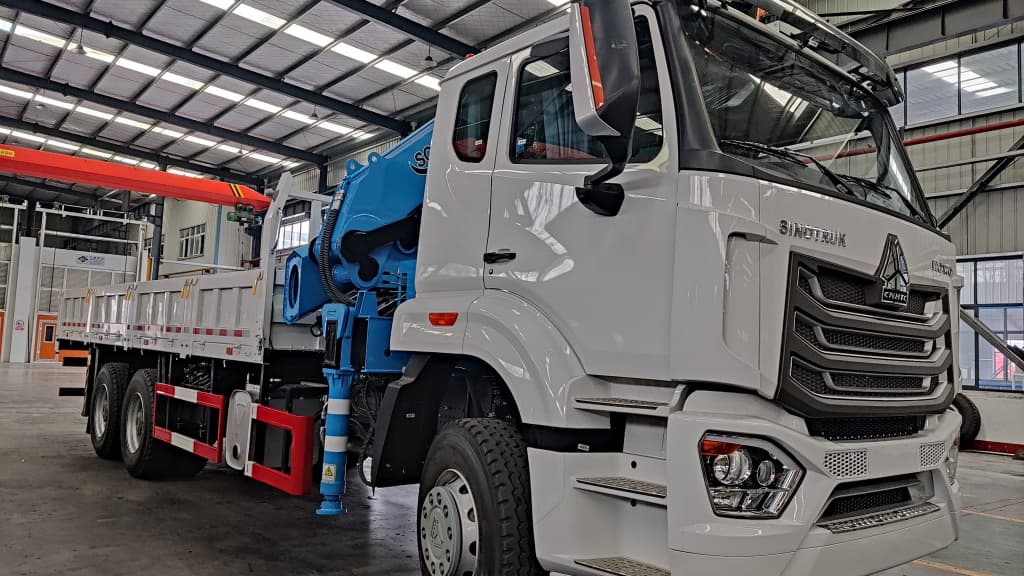

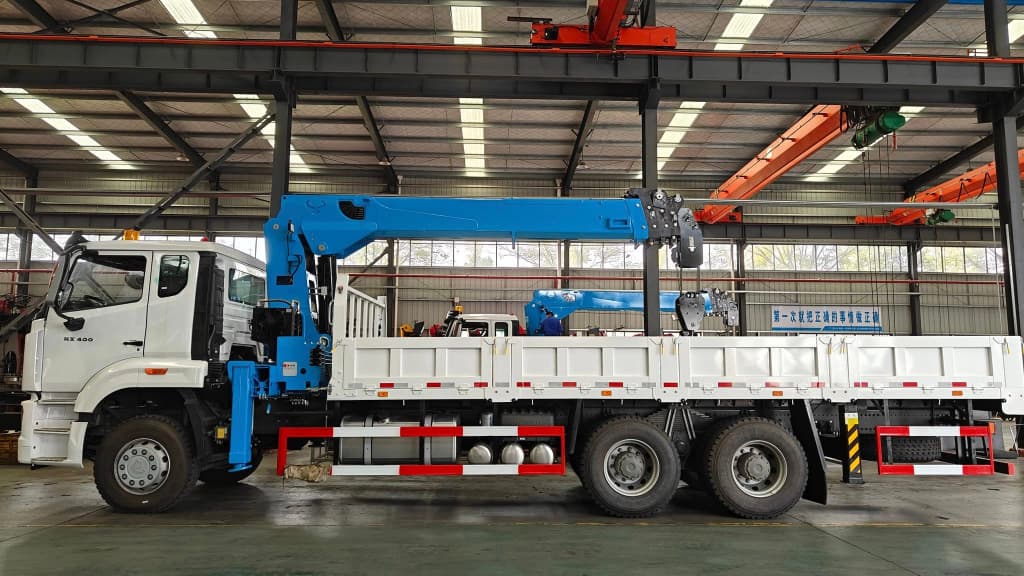

On-site photos
Detailed Description
The Howo NX (390HP) chassis combines a high-torque diesel engine with a robust 6×4 drivetrain to provide steady road performance and on-site stability. Typical gross vehicle weight (GVW) for this class is around ~25,000 kg (approx.), giving the truck a strong payload base for carrying materials and mounting cranes in the 6–18 t lifting class (depending on the installed crane model). The reinforced frame, multi-leaf suspension options and heavy-duty axles help maintain load distribution and longevity under repeated lifts.
As a mounted crane package, the unit commonly pairs with telescopic or folding boom cranes from established makers (typical choices: XCMG, Yongjiu, etc.), offering rated lifting capacity options commonly between 6 t and 18 t and maximum lift heights of ~8–20 m (approx.). Controls, outrigger layout and optional hydraulic stabilizers are configurable per customer needs, so the Howo NX is suitable both as a new purchase (factory-fitted crane) and as a used/refurbished chassis with retrofitted superstructure.

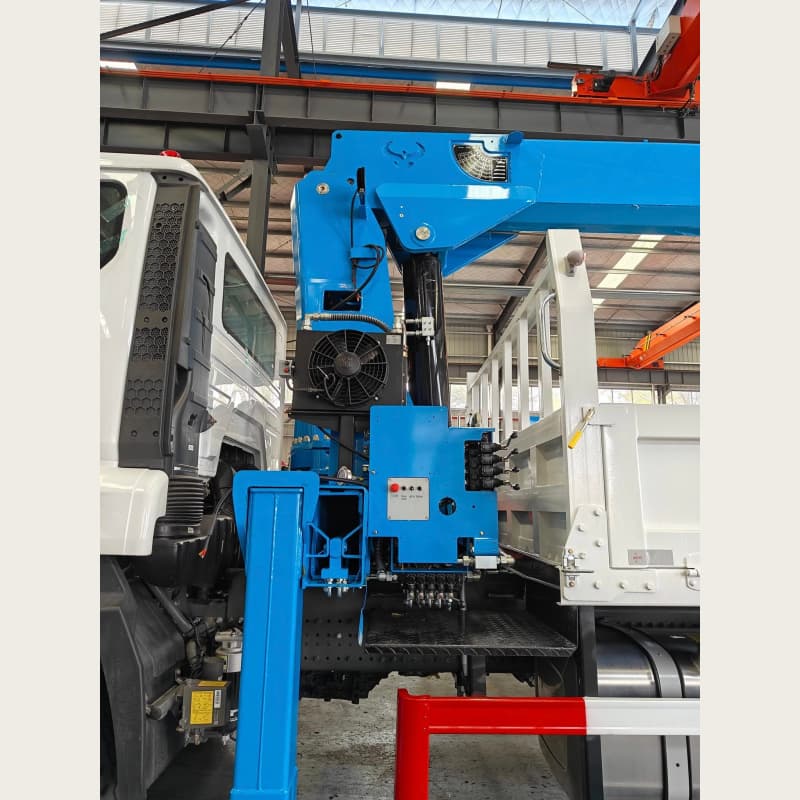

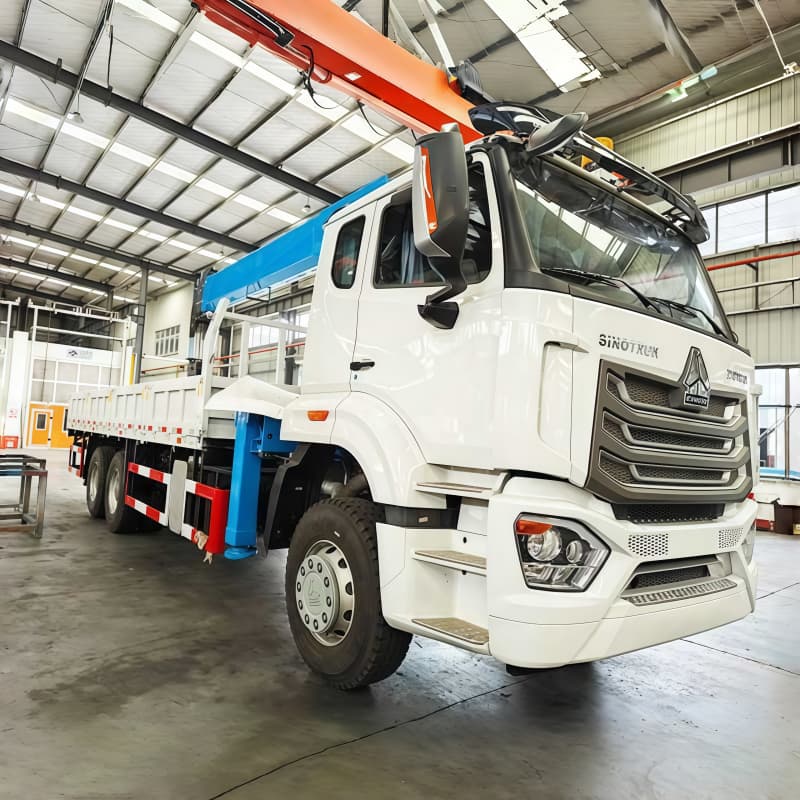

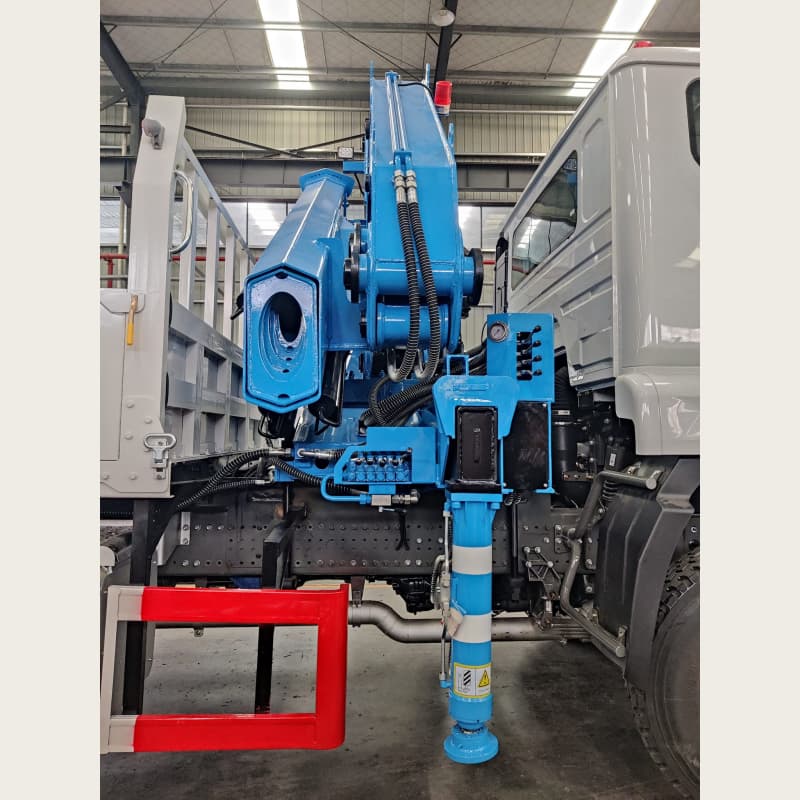

Real-shot image
Detailed specifications
| Item | Specification (approx.) |
|---|---|
| Model Name | Howo NX Truck Mounted Crane — 390HP 6×4 |
| Drive | 6×4 (rear tandem drive) |
| Engine / Horsepower | Diesel engine — 390 HP (approx.) |
| Typical Crane Type (common fit) | Telescopic / folding boom truck crane (6–18 t class) |
| Rated Lifting Capacity | 6 t — 18 t (depends on crane model; typical 12 t mid-range) |
| Maximum Lifting Height | ~8 — 20 m (varies by boom sections) |
| Maximum Lifting Moment | ~12 — 120 tm (depends on crane variant; check crane spec) |
| GVW / Curb Weight | GVW approx. ~25,000 kg (configuration dependent) |
| Cargo Box / Body (typical) | 7,000–8,500 × 2,300–2,550 × 600–3,500 mm (depends on chassis & body) |
| Wheelbase | Typical 5,225 + 1,350 mm (example 6×4 layout; configurable) |
Upgrade your vehicle
Upgrade to the Howo NX 390HP 6×4 for immediate increases in on-site lifting speed and road hauling efficiency — request a personalized quote now to lock in available new/used inventory and get a tailored spec sheet for your project.
