Use Cases
Common use cases include construction site material handling, loading/unloading of prefabricated units, and utility/municipal tasks where a self-contained lifting + transport vehicle replaces separate crane and truck. It is also widely used for logistics, infrastructure maintenance and on-road heavy lifting thanks to its road-legal 6×4/8×4 chassis.

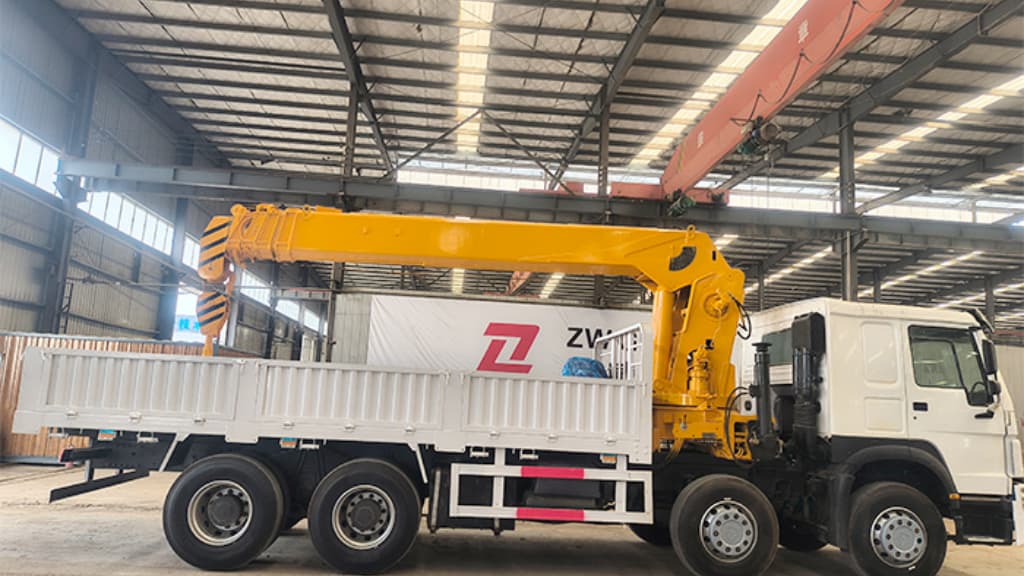

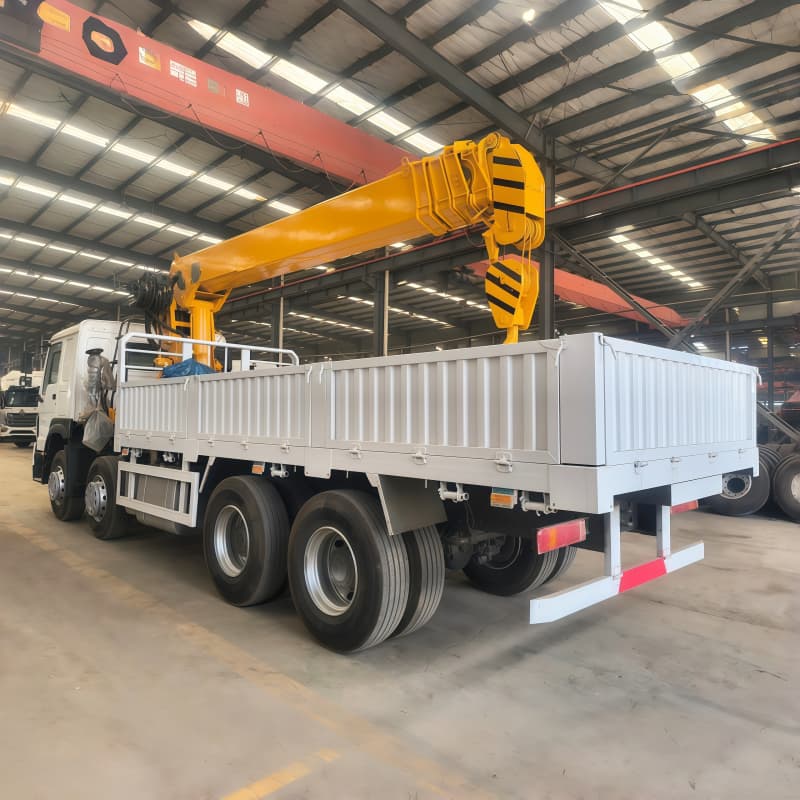

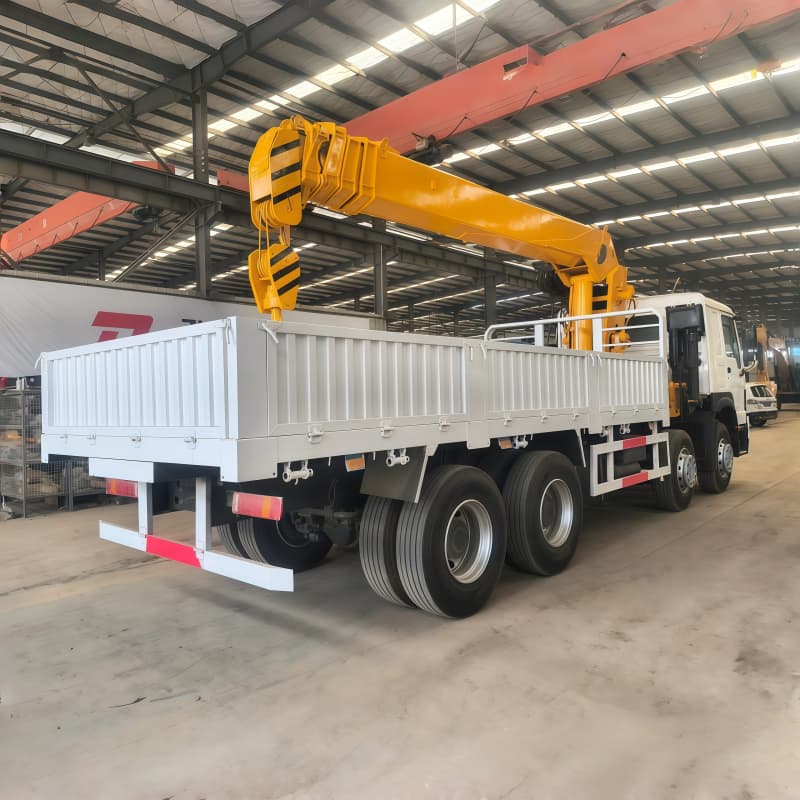

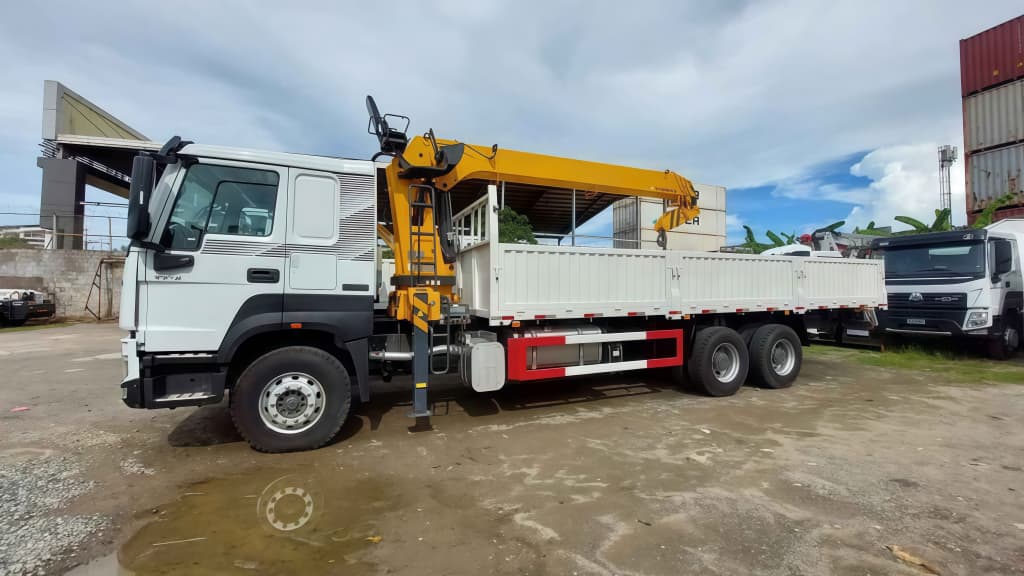

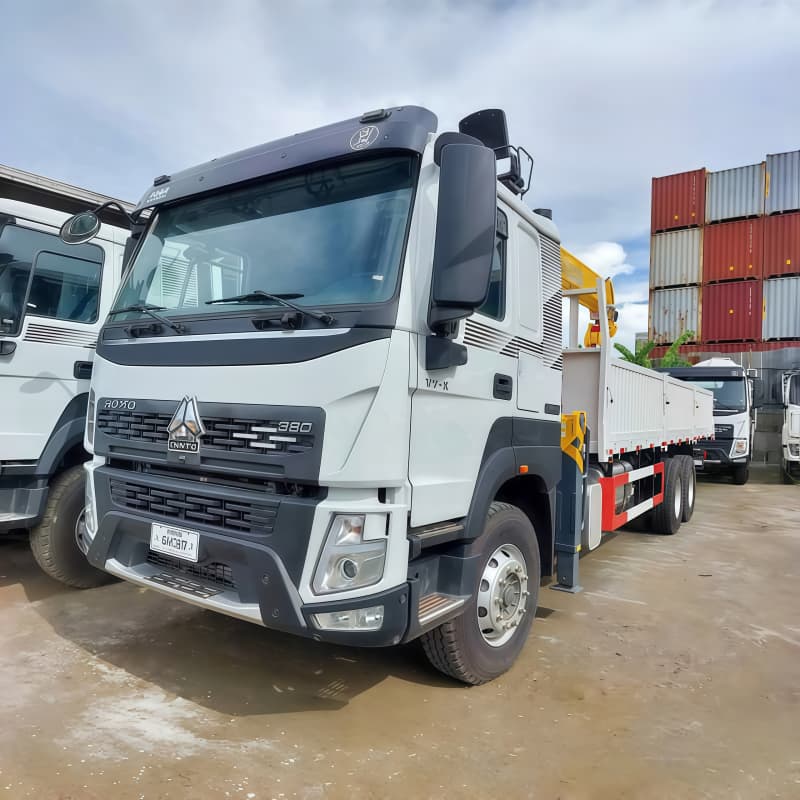

On-site photos
Detailed Description
The Howo truck-mounted crane is offered on multiple HOWO chassis (typical 6×4 and 8×4) and is normally equipped with WP / WD series engines in the ~340–400HP range (models listing 375HP / 380HP as common export options). Body and crane combinations are configurable: folding/knuckle boom cranes (6–10t class) for urban/light-medium work, and larger straight/extendable booms (10–30t and up on heavier chassis) for more demanding lifts. Key strengths: engine power (horsepower), adaptable crane tonnage, and configurable payload.
The vehicle’s gross vehicle weight and payload vary by chassis and crane choice — mid-range 6×4 units typically report GVW and payload around the ~25,000 kg class with cargo box options (lengths commonly 7–8.5 m), while 8×4/heavy chassis increase GVW and allow larger cranes and higher lifting moments. Typical working radii and max lift heights depend on crane model (many folding cranes offer ~10–20 m reach; larger multi-section booms reach higher). Advantages to buyers: proven HOWO drivetrain, strong lifting versatility, and modular up-fit options for different job profiles.

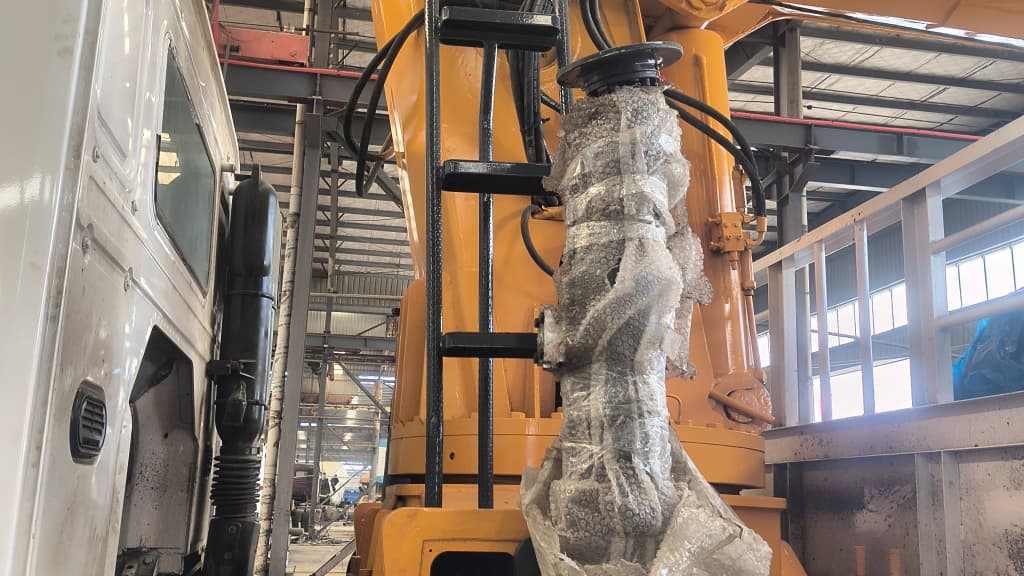

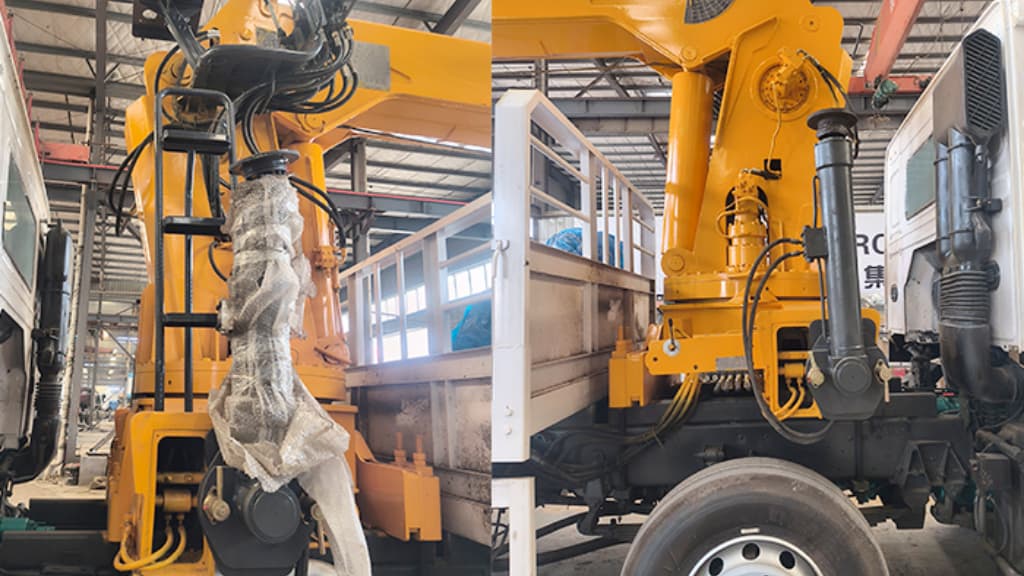

Real-shot image
Detailed specifications
| Item | Typical / Example Value |
|---|---|
| Chassis models | HOWO 6×4 / HOWO 8×4 (export & NX series) |
| Engine power (HP) | 375 HP / 380 HP (options 340–400 HP). |
| Crane types (common) | Folding/knuckle boom 6–10 t; telescopic/straight arm 10–30 t; heavy models up to 100+t (custom). |
| Max lifting capacity (typ.) | 6 t — 30 t (depending on crane and chassis) — some configurations sold as 10 t, 14 t, 20 t etc. |
| Max lifting height / reach | Typical folding cranes ~10–20 m; larger multi-section booms >20 m (model dependent). |
| Max lifting moment | Varies by crane — small knuckle cranes ~6–30 tm; medium/large cranes up to 100+ tm on heavy chassis. |
| Gross vehicle weight (GVW) | Typical 6×4 crane trucks ~25,000 kg (configurable up/down). |
| Cargo box (typ.) | 7,000–8,500 × 2,300–2,550 × 500–1,000 mm (dependent on chassis). |
| Transmission / Emission | Sinotruk HW19710 or similar; Euro II–Euro VI / 国二–国六 options by market & year. |
| Typical use / remarks | New & used market availability; modular upfit for XCMG, Sunward, Hongchang and other crane suppliers. |
Upgrade your vehicle
Choose a Howo 375/380HP truck-mounted crane to consolidate transport and lifting into one reliable unit — inquire now for factory customization (engine, crane tonnage, and payload layout) and get a fast quote tailored to your job profile.
