Use Cases
Our 3 Axle Low Loader is specifically designed for the transport of oversized construction and mining equipment, such as excavators, bulldozers, and cranes, ensuring stability due to its low center of gravity. This Detachable Gooseneck Trailer is also the ideal solution for hauling industrial transformers and heavy project cargo where overhead clearance is critical.

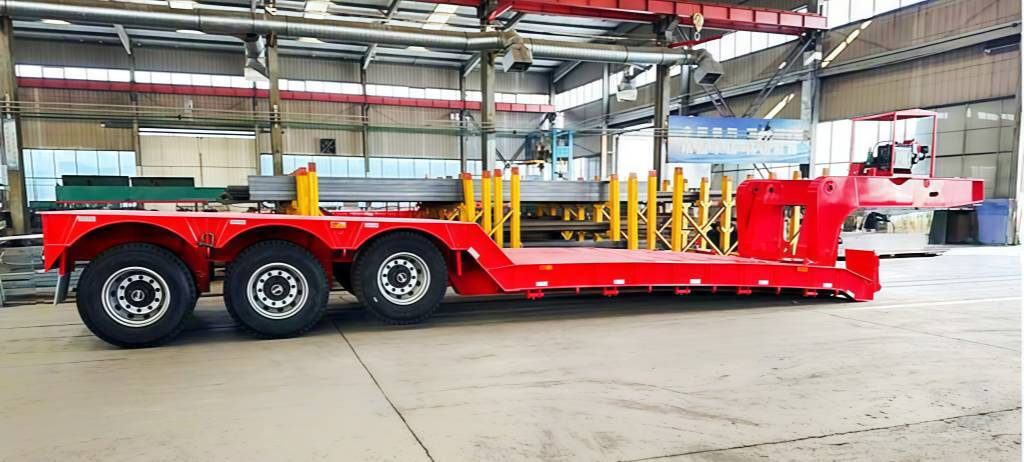

On-site photos
Detailed Description
Engineered for the most demanding heavy haulage tasks, this Removable Gooseneck Trailer features a robust chassis made from high-strength structural steel to maximize payload and structural integrity. The 3-axle configuration, paired with a mechanical suspension system, ensures even weight distribution, while the 60-ton loading capacity easily handles massive industrial machinery. The low-profile deck design maximizes volume for tall cargoes, keeping them within legal height limits.
The hydraulic detachable gooseneck system allows the front of the trailer to lower completely to the ground, creating a gentle ramp for equipment to drive on directly, which is significantly safer than rear loading. We understand that every project is unique, so our trailers can be customized according to customer requirements, including options for extendable decks, additional axles, or specific paint schemes like the striking red finish shown.

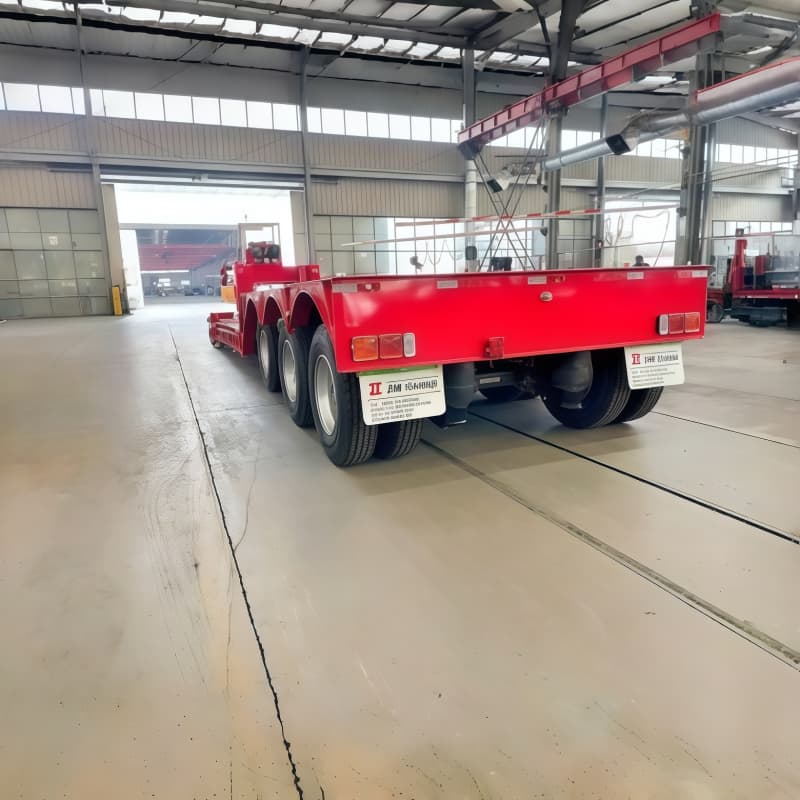

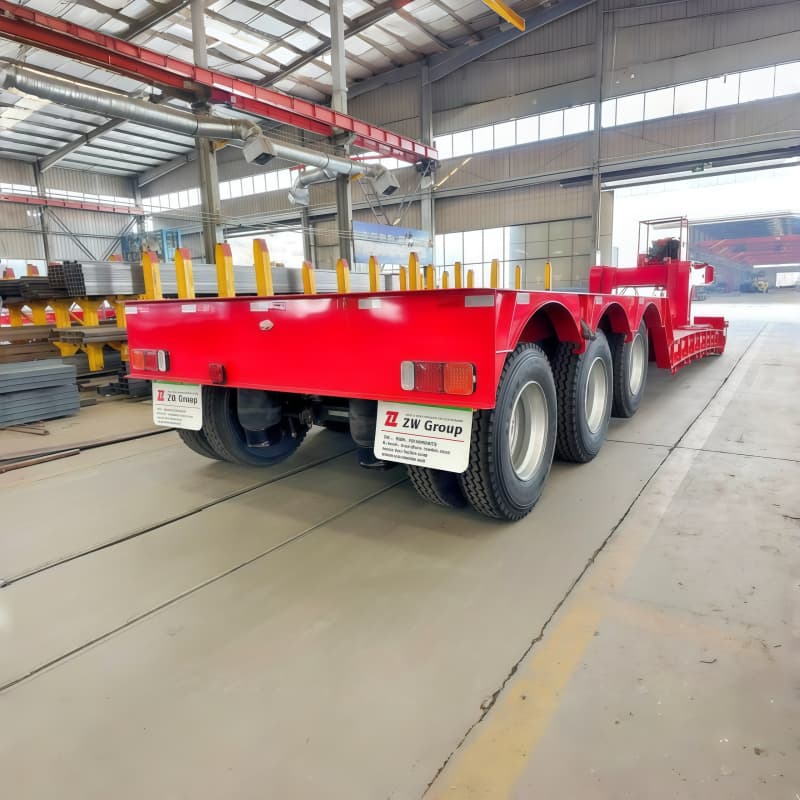

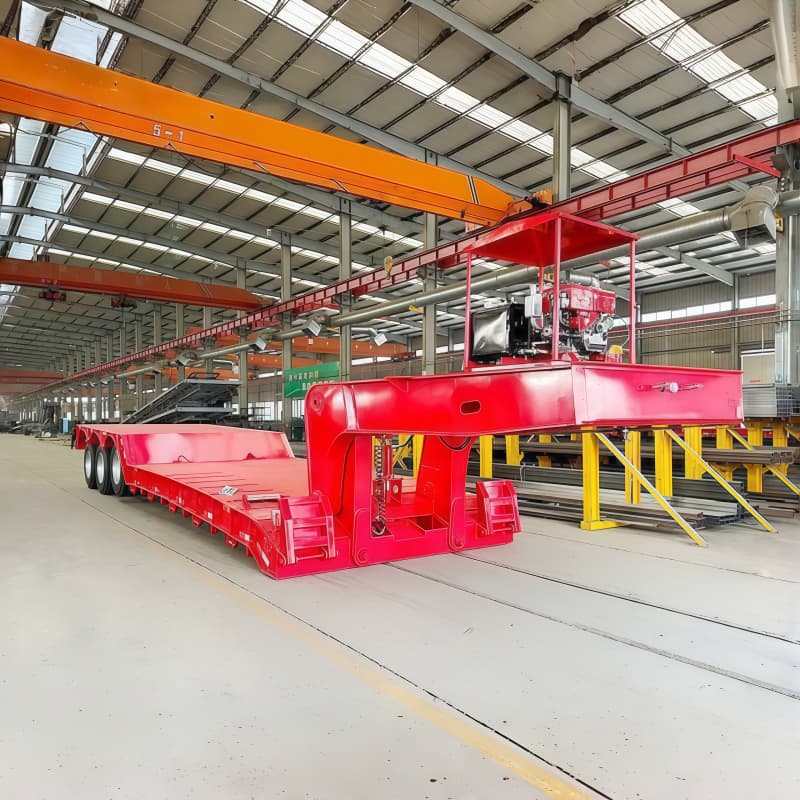

Real-shot image
Detailed specifications
| Parameter | Specification |
| Product Name | 3 Axles Detachable Gooseneck Lowbed Semi Trailer |
| Dimension (LxWxH) | 13000mm x 3000mm x 1250mm (Customizable) |
| Loading Capacity | 60,000 KG (60 Tons) |
| Axle | 3 Units, 13 Ton (ZW/Fuwa/BPW Optional) |
| Gooseneck Type | Hydraulic Removable / Detachable |
| Main Beam Material | High Tensile Steel (Q460C/HG60) |
| Platform Plate | 4mm - 6mm Diamond/Checkered Plate |
| Tire | 12R22.5, 12 Units |
| Suspension | Heavy Duty Mechanical Suspension |
| Power Station | 22HP Diesel Engine (for Hydraulic System) |
Upgrade your vehicle
Don't let inefficient loading slow down your operations—upgrade to our Hydraulic RGN Trailer today for faster, safer equipment transport and a durability that maximizes your ROI.
Send your inquiry now to get a factory-direct quote and a free customization drawing within 2 hours!
