Use Cases
Designed specifically for the mining and construction sectors, this detachable gooseneck low loader utilizes a low-bed design to safely transport tall excavators, cranes, and heavy industrial equipment. The front-loading capability of this heavy haul trailer allows for the efficient and stable loading of crawler machinery that standard drop-deck trailers cannot handle.

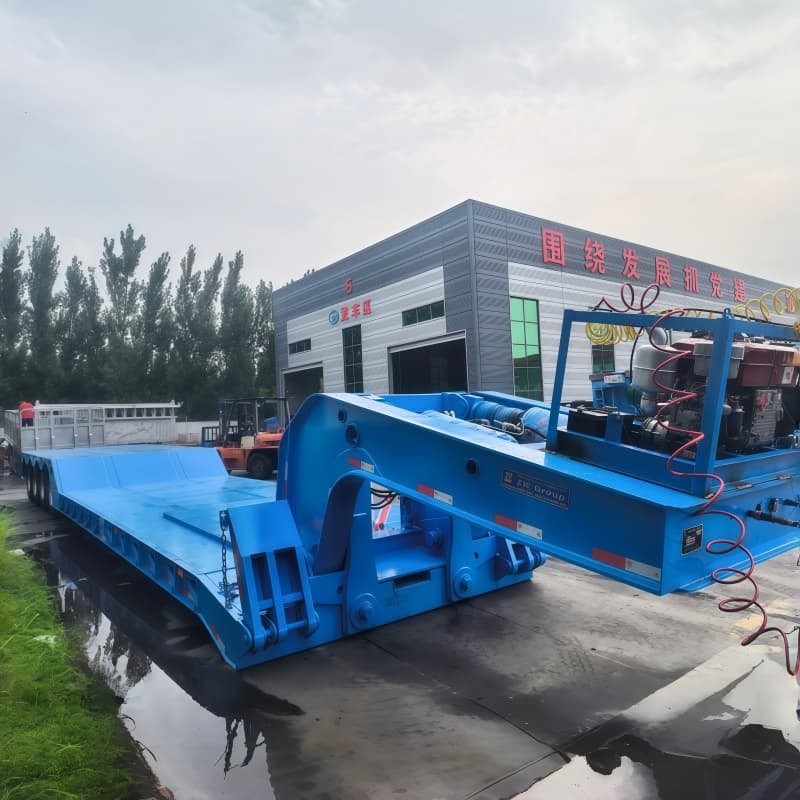

On-site photos
Detailed Description
Built for extreme heavy-duty environments, this 4-axle lowbed trailer is constructed with high-strength steel beams and a robust mechanical suspension system to effortlessly support an 85-ton payload capacity. The chassis features reinforced upper and bottom plates (up to 20mm) and a 500mm main beam height to handle concentrated loads, while the hydraulic removable gooseneck (equipped with a 22HP power station) creates a gentle slope for easy front climbing, serving as a superior alternative to traditional low loaders.
We understand that heavy transport requires precision, which is why this RGN trailer offers fully customizable specifications, including optional side extensions (outriggers) for wider loads and tailored deck lengths. Equipped with premium braking systems (Dual Line with ABS option) and durable 12R22.5 tires, this front-loading lowboy ensures maximum operational safety on the road and can be painted in "Blue" or any custom color to match your fleet branding.

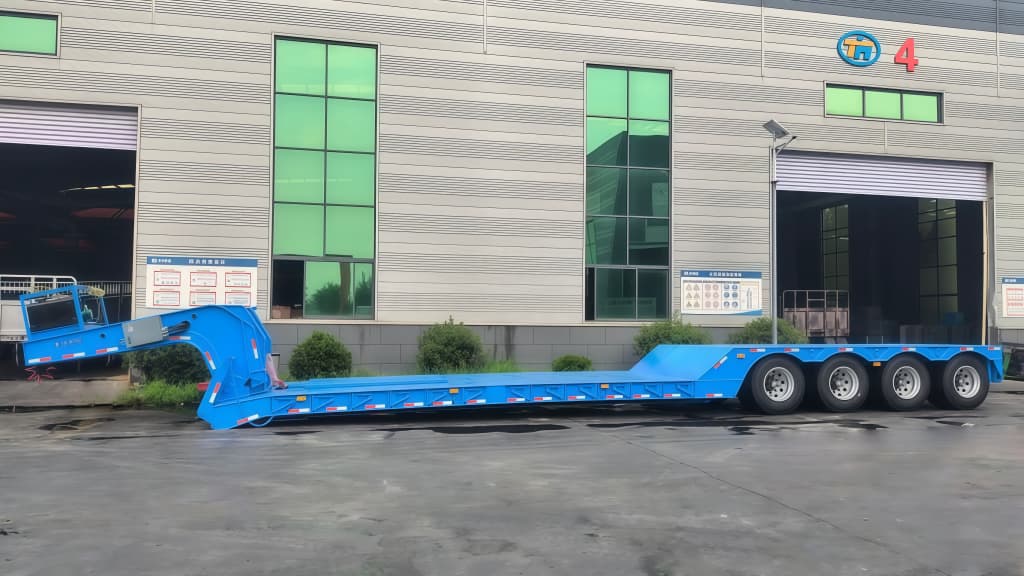

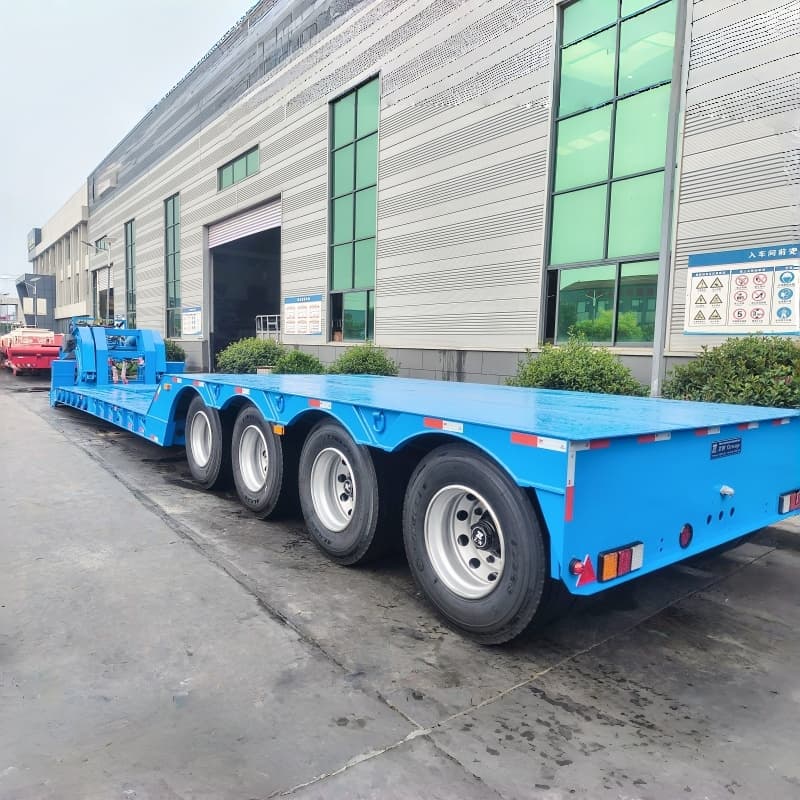

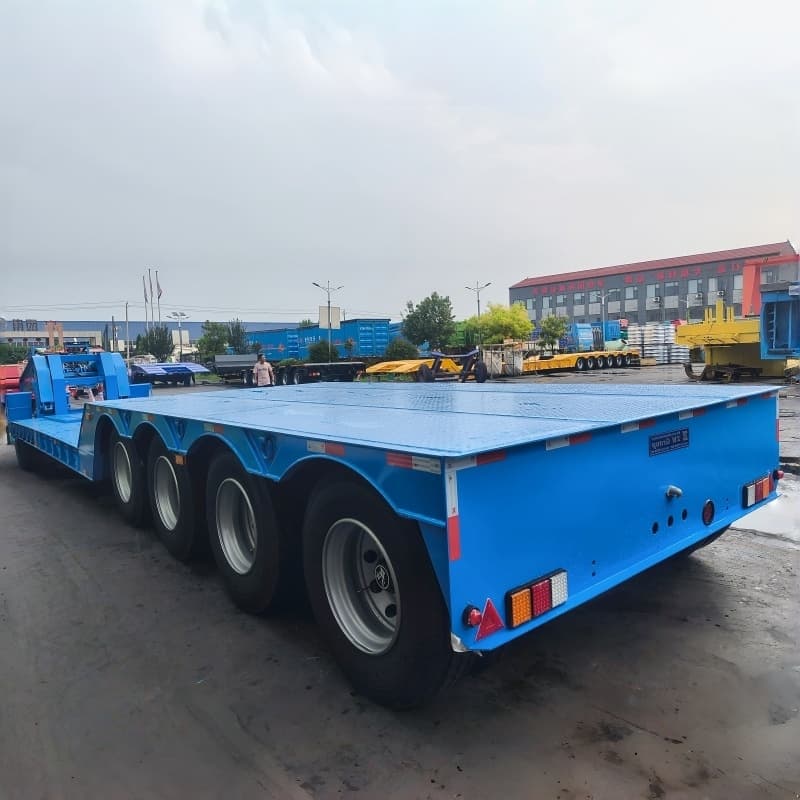

Real-shot image
Detailed specifications
| Feature | Specification |
| Trailer Model | 4 Axles Removable Gooseneck Semi Trailer (RGN) |
| Loading Capacity | 85,000 KG (85 Tons) |
| Dimension | Customizable (e.g., 13000mm - 15000mm Length x 3000mm Width) |
| Gooseneck | Hydraulic Detachable with 22HP Diesel Engine Station |
| Main Beam Material | High Strength Steel (Height 500mm, Upper 16mm, Bottom 20mm) |
| Axles | 4 Units x 13 Ton / 16 Ton (ZW Brand or Customizable) |
| Tires | 16 Units x 12R22.5 (Chinese Premium Brand) |
| Platform | 4mm Diamond Plate with Side Extensions (Foldable) |
| Brake System | Dual Line Braking System with Big Air Chambers |
| Customization | Color (Blue), Dimensions, and Logo (ZW Group) available |
Upgrade your vehicle
Stop compromising on standard trailers—secure your heavy transport contracts with our factory-customized 85-ton RGN trailer, tested for overload durability and offered at direct manufacturer pricing. Send your inquiry now to get a free technical drawing and a quote within 2 hours!
