Use Cases
Ideal as a site delivery truck for large-scale roadworks, commercial building projects and ready-mix plants, this transit mixer excels where high payload and fast loading/unloading are required. As a cement mixer replacement or fleet upgrade, it’s well suited for urban and long-haul construction routes thanks to its robust chassis and reliable mixing system.
On-site photos
Detailed Description
The F3000 chassis combines a high-strength alloy-steel frame and a short/long axle layout (e.g., 1800+2700+1350 mm) to deliver stable handling on rough jobsite roads. Powered by the Weichai WP12 series engine (model WP12.430E50) producing 430 HP (≈321 kW), the truck offers ample torque for steep inclines and frequent stop-start cycles; paired with Fast 9/10/12-speed gearboxes and heavy-duty axles (7.5T front, 16T twin rear), it ensures durability under heavy loads.
The mixer assembly uses high-wear-resistant alloy steel for the drum and blades, with hydraulic components from premium brands to achieve consistent mixing performance. Typical mixing capacity 8–12 m³, intake ≥3 m³/min and discharge ≥2 m³/min, drum speed 0–14 rpm and residual discharge ≤1% translate to high productivity and low material waste, making it a dependable choice for busy concrete operations.

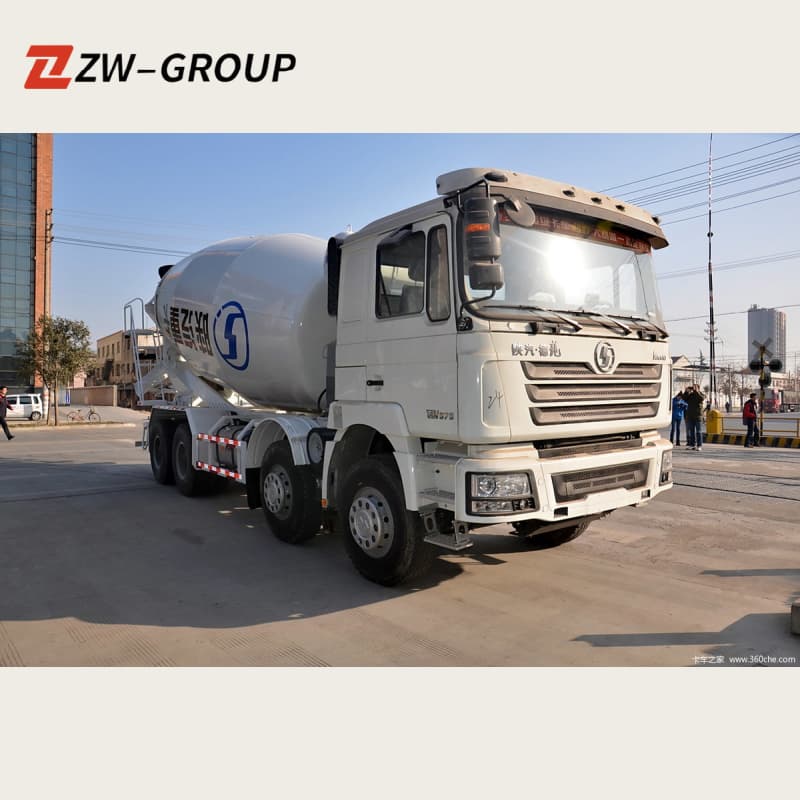

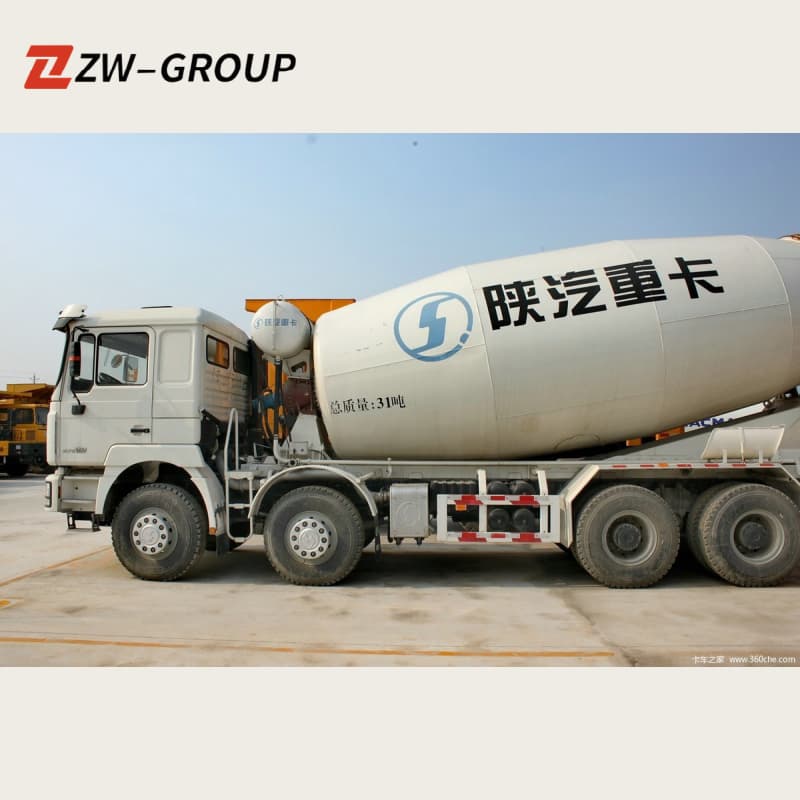

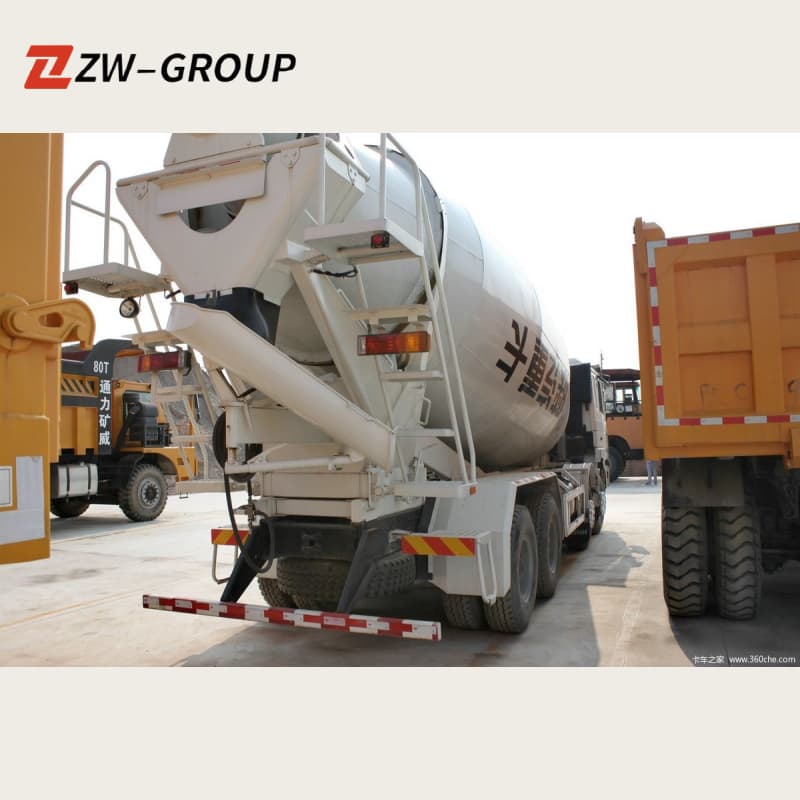

Real-shot image
Detailed specifications
| Item | Specification |
|---|---|
| Model | Shacman F3000 Concrete Mixer Truck (8x4) |
| Drive | 8x4 |
| Engine | Weichai WP12 series (e.g., WP12.430E50) |
| Power | 430 HP (≈321 kW) |
| Gross Vehicle Weight (GVW) | 31,000 kg / 33,000 kg |
| Curb Weight | ~13,000 – 15,000 kg |
| Rated Payload | ~16,000 – 18,000 kg |
| Mixer Capacity | 8 m³ / 10 m³ / 12 m³ |
| Transmission | FAST 9/10/12-speed gearbox |
| Drum Speed & Residual | 0–14 rpm; discharge residual ≤1% |
Upgrade your vehicle
Ready to reduce cycle times and increase delivered cubic meters per day? Contact us now for a personalized quote and fast shipping options on the Shacman F3000 — get priority lead time and fleet-level pricing.
