Use Cases
Ideal for overseas engineering fleets and long-distance freight, the F3000 serves as a prime mover for semi-trailers, a heavy dump/chassis for construction, and a reliable fleet workhorse for project logistics. Its combination of high horsepower, heavy-duty axle ratings and large fuel range makes it perfect for remote sites and long haul routes where uptime and range matter.

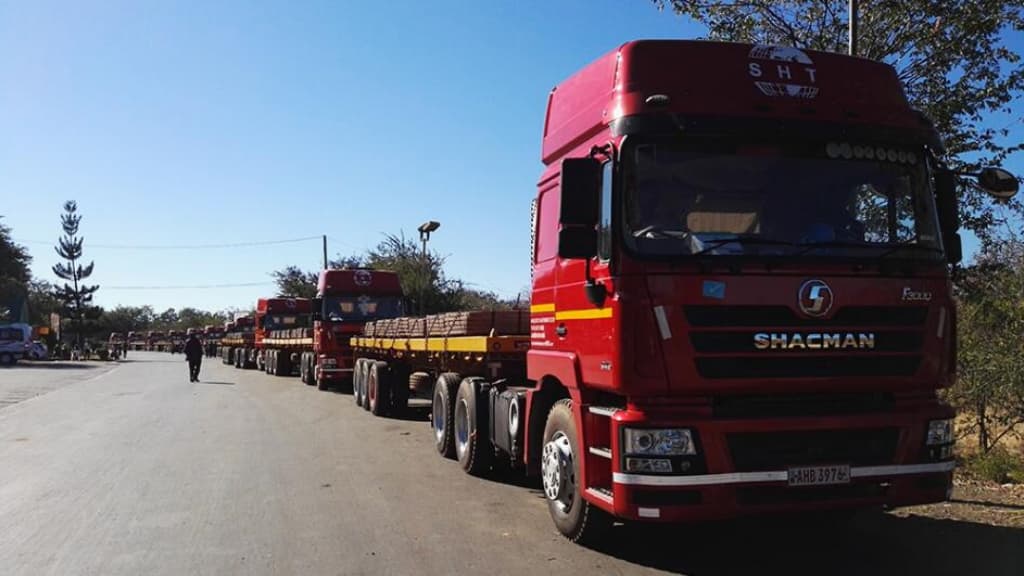

On-site photos
Detailed Description
The F3000 platform combines a low-speed high-torque engine (examples: Weichai WP10/WP12 or optional Cummins ISM) delivering 375 HP (≈276 kW) with peak torque figures typically around 1500 N·m, delivering strong traction and towing force for heavy loads. Matched to FAST manual transmissions (9/10/12-speed options) and robust MAN-tech axles (front ~5.5 t, rear 16 t dual-reduction), the truck offers excellent climbing ability and reliable driveline performance—ideal for steep grades and heavy semitrailer combinations.
The chassis and service features focus on long-distance uptime: large-volume body options and fuel tank capacities from standard 300–400 L up to optional large tanks (configuration-dependent, industry examples up to 1000 L) enable extended range between refuels. Modern electrical architecture (Bosch CAN-bus), WABCO braking components and VosS joints improve diagnostics, braking performance and airtightness, reducing downtime and maintenance.

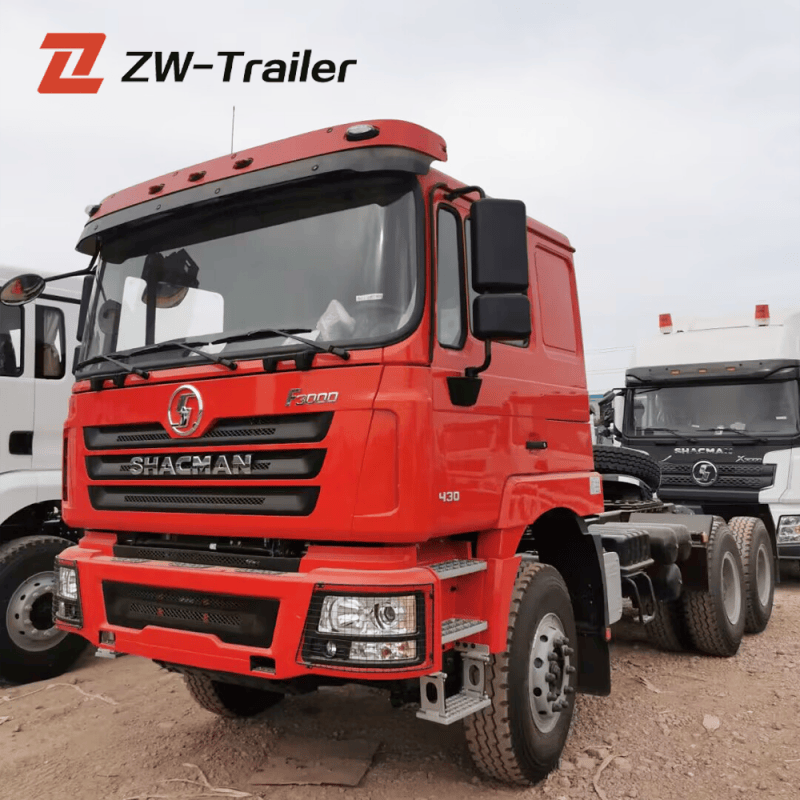

Real-shot image
Detailed specifications
| Item | Specification (typical / selectable options) |
|---|---|
| Model / Drive | SX**F3000 — 6x4 (typical; also 6x2, 8x4 options) |
| Engine | Weichai WP10 / WP12 (optional Cummins ISM) |
| Displacement | ~9.726 L (WP10) / ~11.596 L (WP12) |
| Rated Power | 375 HP (≈276 kW) (other configs up to 460 hp available) |
| Peak Torque | ~1500 N·m (varies by engine choice) |
| Transmission | FAST manual — 9JS / 10JSD / 12JSD (9/10/12 speed options) |
| Axles / Suspension | Front ~5.5 t MAN-type; Rear 16 t MAN dual-reduction; multi-leaf springs |
| Fuel Tank Capacity | Standard 300–400 L (aluminum); optional larger tanks — configuration dependent (examples up to 1000 L) |
| Wheelbase | Typical: 3200+1350 mm (other configs: 3775+1400 mm) |
| Gross Vehicle Weight (6x4) | Up to ~25,000 kg (depends on local spec and body) |
Upgrade your vehicle
Ready to upgrade your fleet? Contact us for a tailored quote — enquire now about volume pricing, available configurations (engine, transmission, tank size) and fast factory-backed parts support.
