Use Cases
Common use cases include on-site material handling and short-distance delivery of bulky loads (construction materials, steel, precast, machinery) and utility/installation work where a mobile crane and transport in one vehicle is needed. The F3000 crane truck (mobile crane / service crane) is especially useful for contractors and municipal fleets that need fast deployment and multi-role capability.
On-site photos
Detailed Description
The Shacman F3000 crane truck is normally powered by a Weichai/Cummins series engine in the 290–340 HP range (market listings commonly show 340 HP for heavy variants), mated to 9–10 speed manual transmissions and a 6×4 drive axle layout.
Typical wheelbases seen online are in the (≈5625+1350 mm — 5775+1400 mm) range; curb weight commonly ranges from ~13,000–16,500 kg with a total mass/GVW ~25,000 kg and payload/carrying capacity often reported near 7,800–8,200 kg depending on equipment and crane choice. These chassis parameters support a large flatbed (common cargo box ~8200×2326×800 mm) and multiple tyre/wheel configurations (10–12 wheels).
The crane module fitted varies by supplier — common options include compact articulated or telescopic boom cranes from manufacturers such as XCMG or equivalent (examples: SQ3.2 family or LQS78A style units). Typical on-truck crane ratings seen in market listings range from ~3.2 t (at short radius) up to 8–10 t or higher for larger tele-boom options; outriggers span and hydraulic tank specs (e.g., ~60 L) also vary by fitted crane. Because multiple crane models and boom lengths are offered, the vehicle is highly customizable to required lifting capacity, working radius and payload priorities.

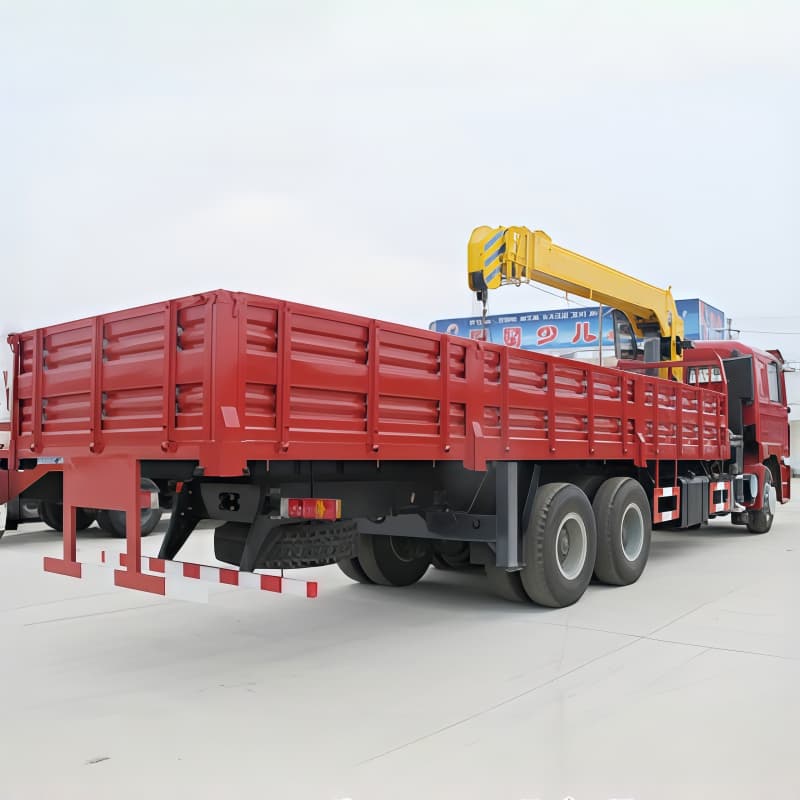

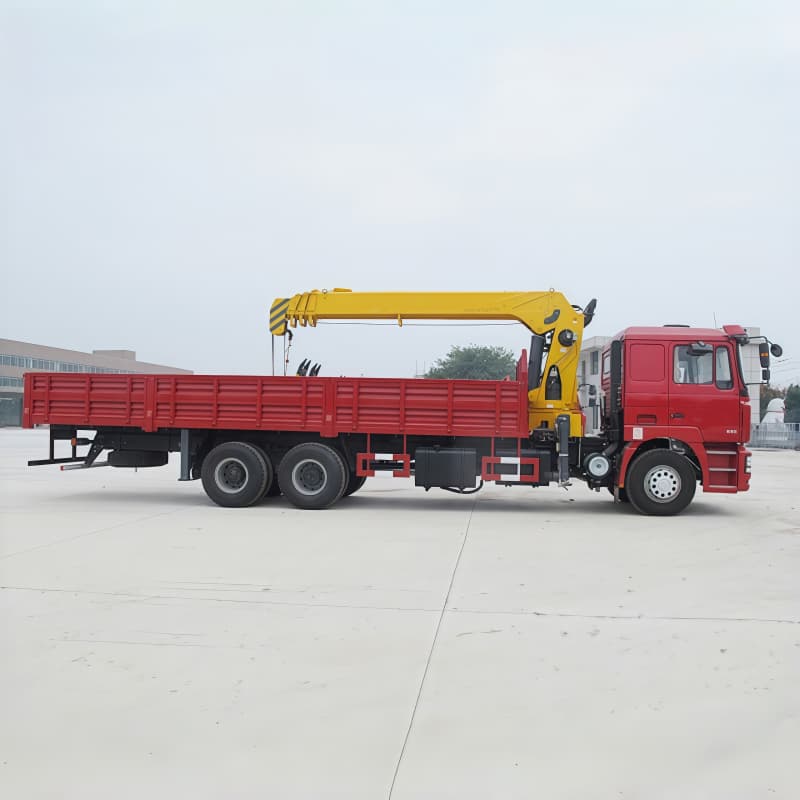

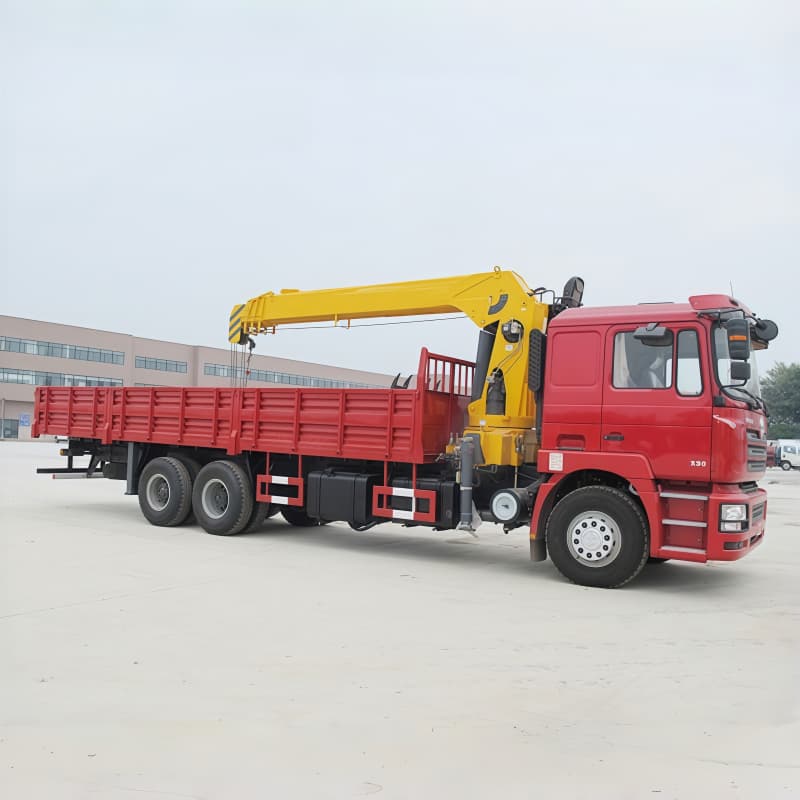

Real-shot image
Detailed specifications
| Item | Typical value / common options |
|---|---|
| Model (base chassis) | Shacman F3000 6×4 (340 HP variants common) |
| Engine (brand / model) | Weichai / Cummins series (examples WP10 / WP9), ~340 HP |
| Drive / Axles | 6×4 (10 wheels / 12 wheels options) |
| Total mass (GVW) | ~25,000 kg (common listing) |
| Curb weight | ~13,000 – 16,500 kg (depends on crane & body) |
| Payload / Rated carrying | ~7,800 – 8,200 kg (typical) |
| Cargo box (L×W×H) | Common: 8200 × 2326 × 800 mm (flatbed/box variants) |
| Wheelbase | Typical: 5625+1350 mm or 5775+1400 mm |
| Max lifting capacity (crane) | 3.2 t (common small crane) — up to 8–10 t or more for larger crane modules |
| Transmission | 9–10 speed manual (FAST / similar suppliers) |
