Use Cases
Common use cases include ready-mix deliveries to urban building sites, commercial developments, and small-to-mid scale infrastructure works, where tight manoeuvrability and on-time rotations are essential. Also widely used as a site batching / transit mixer for bridges, roads and medium-sized construction projects requiring consistent effective mixing capacity and payload.
On-site photos
Detailed Description
Built on the X3000 6×4 chassis the truck is typically offered with Weichai WP10 / WP12 family engines (380 HP option commonly available), a FAST/12-speed or equivalent transmission and heavy-duty axles suited for mixer duty.
The 10m³ nominal drum is the common commercial label — however, nominal drum volume and effective mixing/transport capacity differ: many 10m³ drums have an effective carried concrete volume closer to ~7.5–9.0 m³ depending on drum geometry and blade layout, so please confirm net mixing capacity when planning batch sizes. Advantages: large nominal capacity for fewer trips, and high power / PTO compatibility for steady mixing under load.

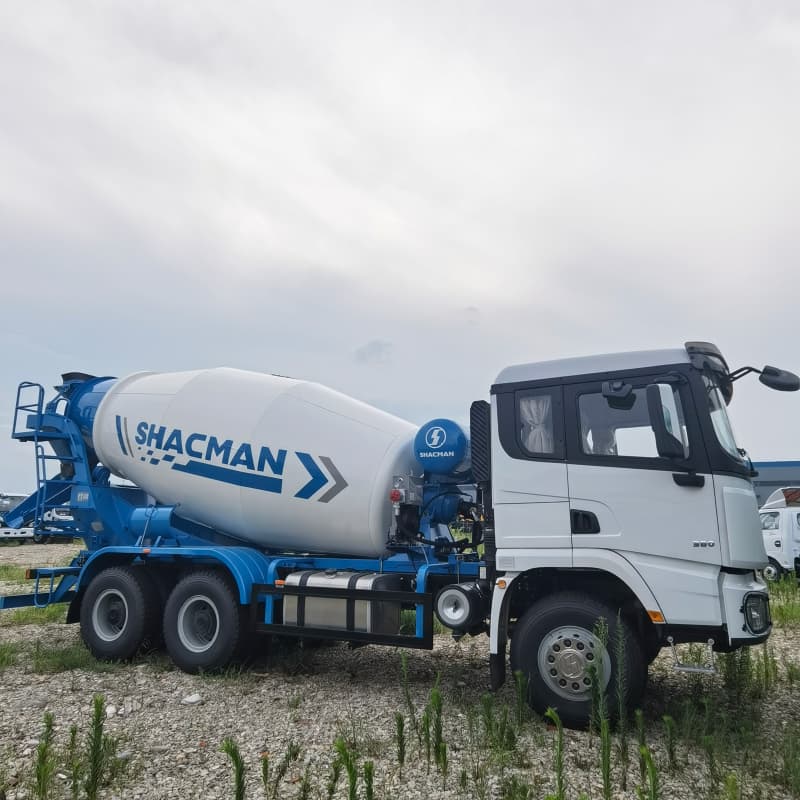

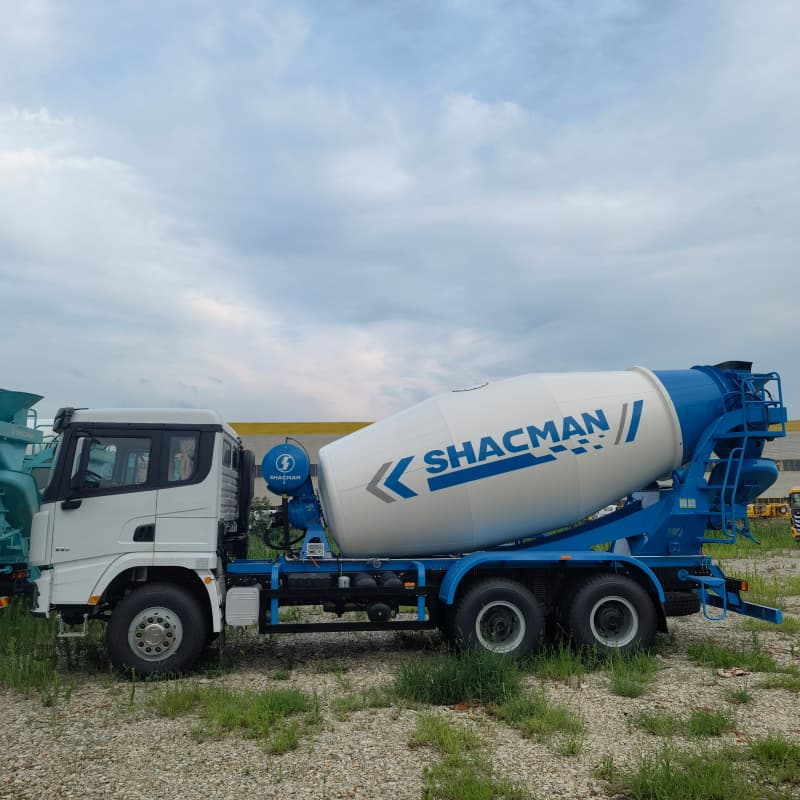

Real-shot image
Detailed specifications
| Item | Typical value / remark |
|---|---|
| Model / Series | Shacman X3000 Concrete Mixer Truck (6×4, 10m³ nominal) |
| Drive type | 6×4 heavy-duty chassis |
| Engine (typ.) | Weichai WP10 / WP12 — 380 HP option commonly offered. |
| Nominal drum capacity | 10 m³ (manufacturer nominal). |
| Effective mixing capacity (typ.) | ~7.5–9.0 m³ (depends on drum internals & supplier). |
| Gross vehicle weight (GVW) | Typical range: ~25,000–40,000 kg depending on regional spec. |
| Curb / kerb weight (typ.) | ~12,000–15,000 kg (varies with configuration). |
| Rated payload (typ.) | ~10,000–25,000 kg (model & regional GVW limited). |
| Dimensions (L×W×H) (typ.) | ~10,000 × 2,490–2,550 × ~3,450–3,950 mm (approx ranges). |
| Transmission / PTO | FAST 9/10/12-speed manuals or equivalents; PTO for mixer drive. |
Upgrade your vehicle
Upgrade your fleet with the Shacman X3000 6×4 10m³ mixer — request a quick quote now and we’ll tailor drum type, PTO and axle/engine options to match your exact effective mixing capacity and payload needs.
