Use Cases

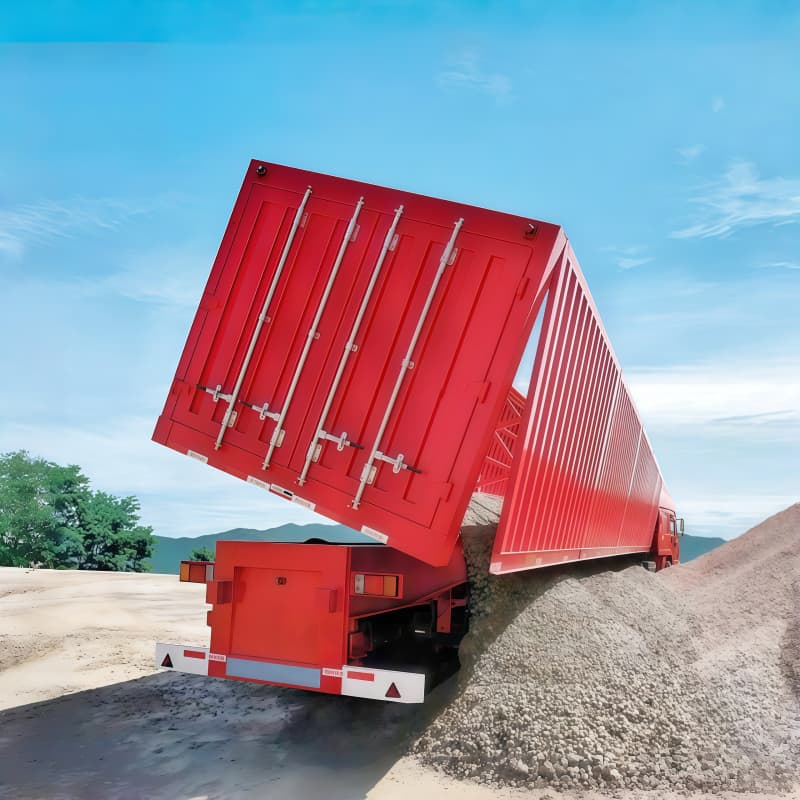

This side tipper excels in bulk material transport such as sand, gravel, coal and demolition waste, where rapid side unloading reduces turnaround times on site. It is also widely used as a dump trailer / bulk tipper for roadworks and quarry logistics, providing stable on-road handling with 3 axles for heavy loads.

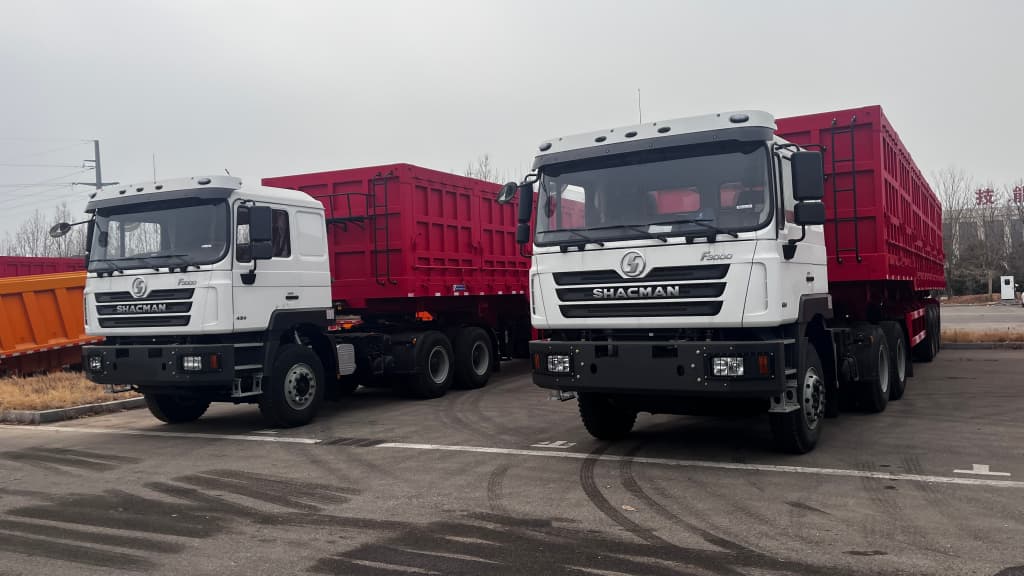

On-site photos
Detailed Description
The trailer features a reinforced U-beam mainframe with a longitudinal web thickness of approx. 8 mm and wing-plate arrangement (upper plate ~14 mm / lower plate ~16 mm as commonly used), delivering excellent structural strength and long-term fatigue resistance. Floor construction uses approx. 5 mm bottom plate with reinforced side boards, giving a durable wear surface for abrasive materials; typical working volume for a 3-axle side tipper of this dimensional class is roughly 35–45 m³ (final volume depends on specific length/height).
Braking, axle and tire configuration are factory-fit for heavy-duty service: 3 axles, suspension can be mechanical leaf or air-assisted (configurable), tyre spec commonly 13R/22.5 (rim set 16+1) with spare tyre holders provided. Registered/plateable tonnage listed in some spec sheets is up to 60 tonnes (please confirm with local registration limits); estimated payload (net load) for a typical 3-axle side tipper of this build is approx. 35–40 tonnes, subject to final specification and local regulations.

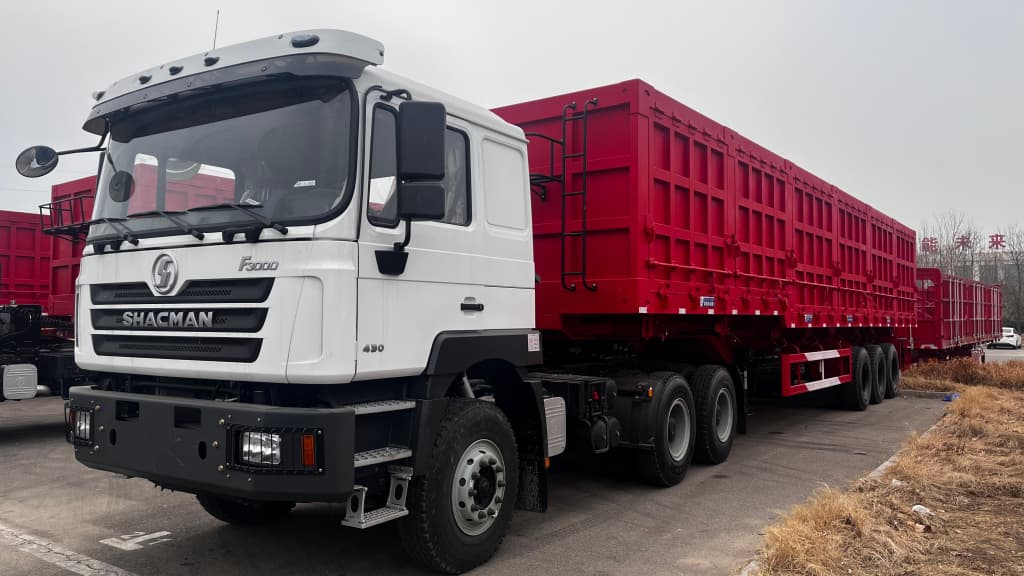

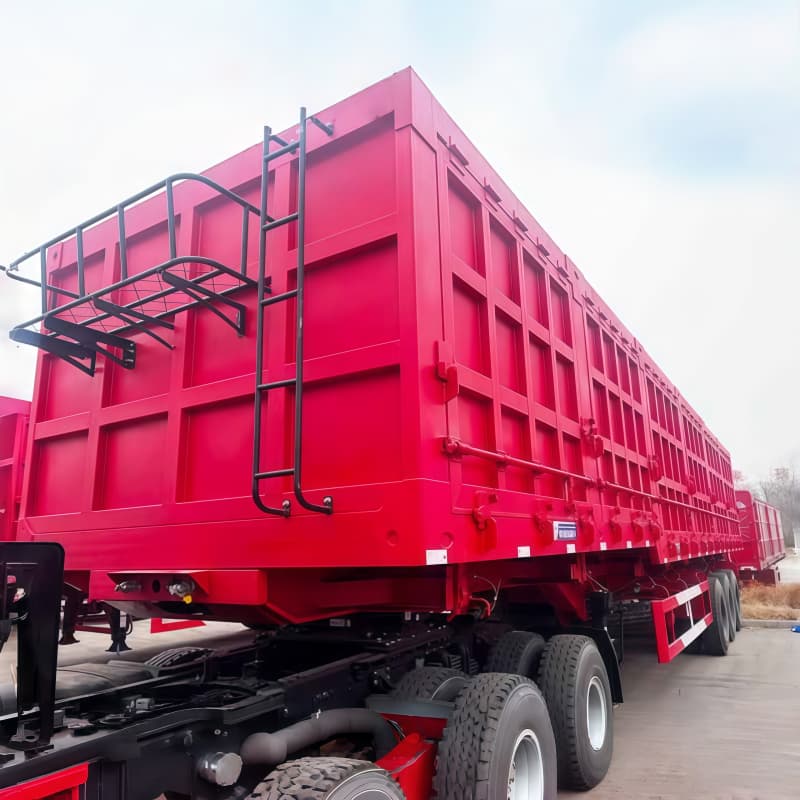

Real-shot image
Detailed specifications
| Item | Specification (typical / to confirm) |
|---|---|
| Product name | Side Tipper Semi Trailer — 3 Axles (Side-dump / Side tipping) |
| Model / Type | U-type side tipper, 3-axle configuration |
| Axles | 3 axles (heavy-duty, factory fitted) |
| Approx. Payload (载重) | ≈ 35–40 tonnes (subject to final spec & legal limits) |
| Approx. Body Volume (容积) | ≈ 35–45 m³ (depends on body length/height) |
| Registered/Plate Tonnage | Up to 60 tonnes (as per provided note — confirm with local registration) |
| Main beam/web thickness | Longitudinal web ≈ 8 mm; wing plate top ≈ 14 mm / bottom ≈ 16 mm |
| Floor thickness | Bottom plate ≈ 5 mm (reinforced side boards) |
| Tires & rims | 13R22.5 / rims 16+1 (spare 1) |
| Suspension & brakes | Mechanical leaf rear + optional front air-lift / factory-fitted brake valve (configurable) |
Upgrade your vehicle
Upgrade your fleet now — request a custom quote to lock in factory pricing and confirm exact payload/volume for your route and local registration; fast lead times available for new units and competitive used options.
