Skeletal Semi Trailer 3 Axles Red Video
Use Cases
Common use cases include long-distance container hauling for shipping terminals, intermodal transfer between ports and inland depots, and fleet operators needing a flexible chassis for mixed container sizes. The skeletal (also called container chassis / skeleton trailer / chassis trailer) design lets operators maximize payload and speed up cargo handling.
On-site photos
Detailed Description
This 3-axle skeletal semi trailer features a reinforced high-tensile steel main beam and cross members that balance strength and weight, enabling a competitive tare weight while maintaining a high payload range (typically in the 25–35 tonne class depending on spec and local regulations). The trailer accepts twist-locks for secure 20ft/40ft container mounting, has adjustable kingpin positions and optional load-securing devices; customization is available for length (e.g., 20ft, 40ft, 45ft layouts), lighting packages, and protective coatings.
On the running gear, choose from leaf-spring or air suspension with heavy-duty 3-axle groups, disc or drum braking systems, and a range of axle ratings to suit operating conditions. Corrosion-resistant paint (standard red finish) or hot-dip galvanizing, optional tool boxes, ladder/landing gear upgrades and OEM-specified electrical harnesses are offered — all aimed at reducing life-cycle cost and improving uptime. Durability, serviceability, and fleet customization are core advantages.

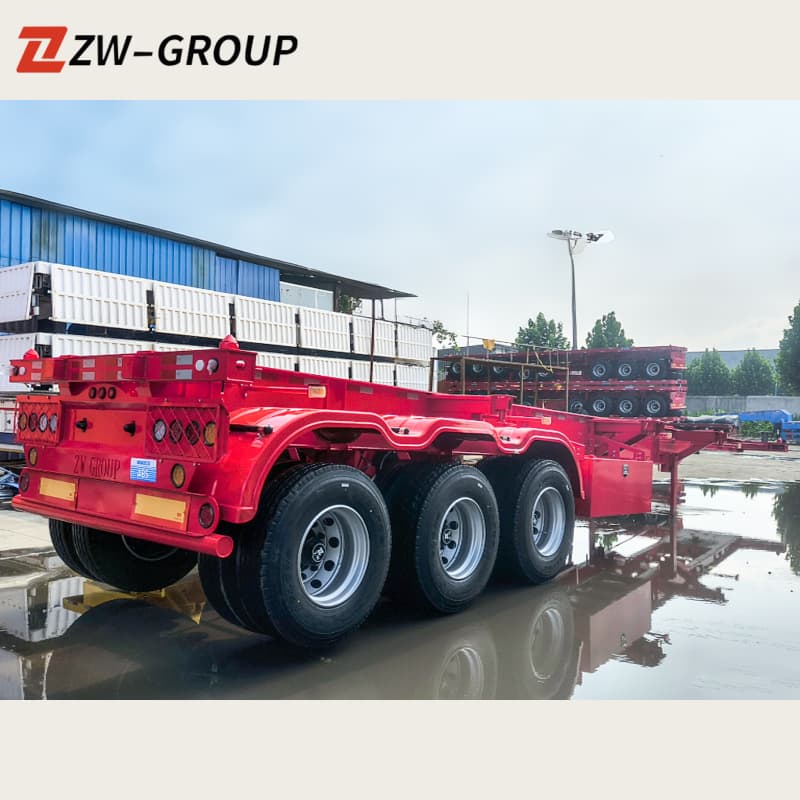

Real-shot image
Detailed specifications
| Item | Typical / Available Options |
|---|---|
| Model | Skeletal Semi Trailer — 3 Axles (Container Chassis) |
| Length / Layout | 20ft · 40ft · 45ft configurations (adjustable twist-lock positions) |
| Payload (approx.) | 25,000 – 35,000 kg (depends on axle rating, tare weight & local rules) |
| Container compatibility | 20ft, 40ft, 45ft (ISO containers) |
| Chassis material | High-tensile steel main beam & cross members |
| Suspension | Leaf spring or Air suspension (optional) |
| Axles & ratings | 3 × heavy-duty axles (options: 9T / 11T / 13T per axle) |
| Brakes | Air brake system; Disc or Drum brakes available |
| Coupling & fittings | Standard 2-inch kingpin; adjustable kingpin position; twist-locks |
| Finish & customization | Standard red paint; optional galvanizing, toolboxes, lighting packages, signage |
