Skeletal Semi Trailer 3 Axles White Video
Use Cases
Common uses include intermodal container hauling between ports and distribution centers and short-term container shuttle services for logistics yards; it also serves as a lightweight, cost-efficient container carrier for regional freight. Because it is a container chassis / skeleton trailer, operators can rapidly switch loads between different container sizes and trucking tasks.

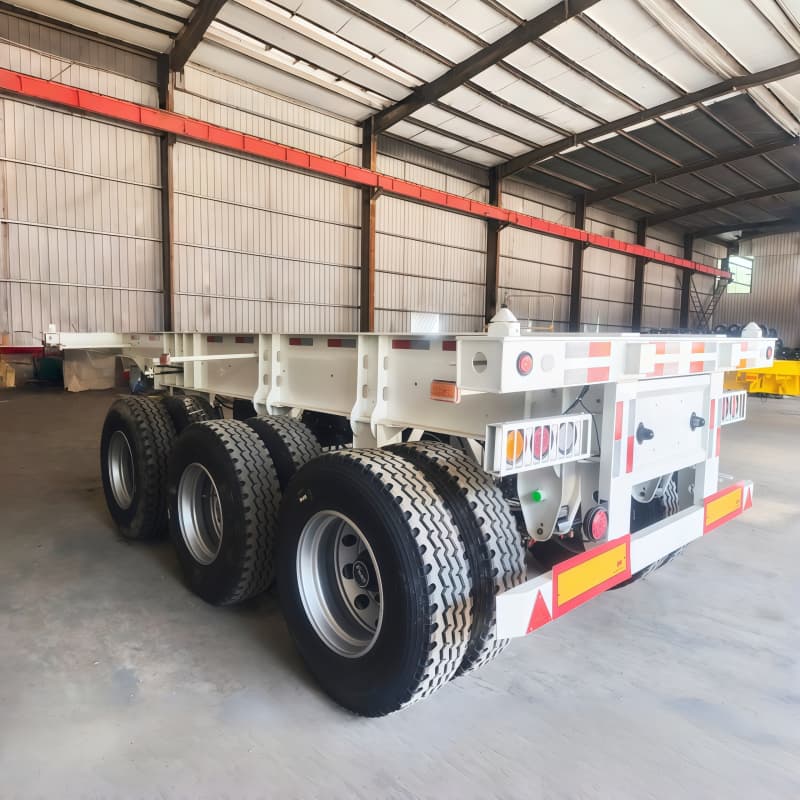

On-site photos
Detailed Description
This 3-axle skeletal semi-trailer is engineered from high-tensile steel with a reinforced central spine to deliver excellent torsional strength while keeping tare weight low. It fits standard 20ft/40ft ISO containers using adjustable twist-locks, and its axle and frame layout provide a high payload capacity (configurable to meet regional GVW rules). Key advantages include robust steel construction, modular twist-lock positions, and customizable suspension and axle brands to meet different market demands.
The trailer comes with a choice of air suspension (standard) or mechanical leaf spring (optional), pneumatic S-cam brakes with ABS (EBS optional), and heavy-duty landing gear. Corrosion protection includes shot blasting, primer and finish coat (white by default), and additional underbody protection available on request. All technical items — length, axle rating, paint, lighting and accessories — can be customized to customer specifications before production.

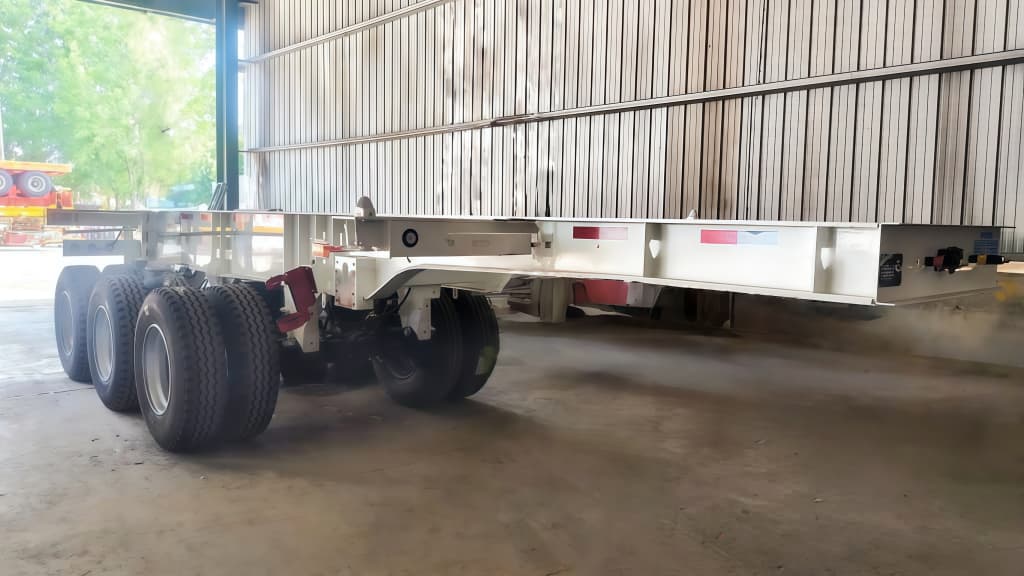

Real-shot image
Detailed specifications
| Specification | Value |
|---|---|
| Product name | Skeletal Semi Trailer — 3 Axles (White) |
| Axles | 3 × 10,000 kg rated axles (total axle rating ≈ 30,000 kg) |
| Container compatibility | 20ft / 40ft ISO containers — adjustable twist-locks |
| Overall length | 12,192 mm (standard 40ft chassis layout; customizable) |
| Payload capacity (typical) | Up to 30,000 kg (configurable per customer & local GVW limits) |
| Tare weight (approx.) | ~5,500 kg (depends on spec and options) |
| Suspension | Air suspension (standard) — mechanical leaf spring optional |
| Brakes & safety | Pneumatic S-cam brakes + ABS (EBS optional) |
| Tyre / wheel | 11R22.5 tubeless radial tyres, steel rims |
| Finish & colour | Shot blast + primer + finish coat (default white); anticorrosion options available |
Upgrade your vehicle
Unlock higher fleet uptime and lower operating costs — request a quote now to get a customized chassis spec and competitive FOB price tailored to your routes and local regulations.
