Stainless Steel Bulk Feed Grain Tanker Trailer 65CBM 3 Axles Video
Use Cases
Ideal for agricultural logistics, feed mills and bulk grain distributors needing efficient on-road bulk feed / grain transport with fast offloading and low residue. Also suitable as a bulk feed trailer for long-haul feed delivery, silo replenishment and contract feeding operations.

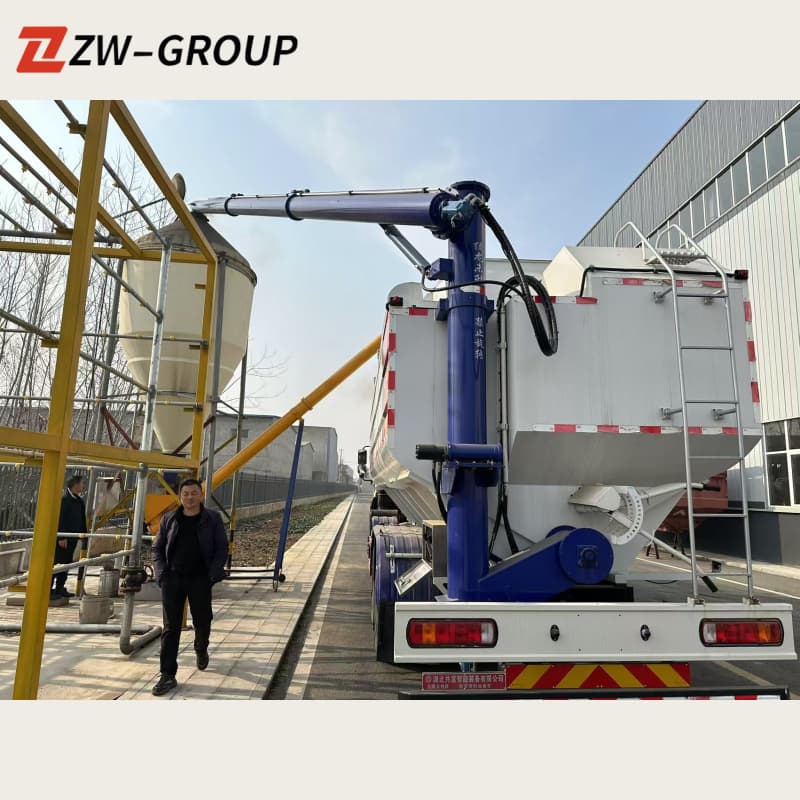

On-site photos
Detailed Description
This 65CBM stainless steel bulk tanker is built from SUS304 stainless steel (tank body ~3mm, heads ~4.5mm) and divided into 5 compartments so you can carry different feed types or staged loads. The trailer uses FUWA 16-ton axles (3 pieces), mechanical leaf-spring suspension (10/10/10 leaf arrangement), a hydraulic driven discharge system and manual sliding manhole covers — all designed to deliver low residual rate (≤0.22) and high discharge capacity (≈650–750 kg/min).
The chassis and layout are engineered for a ~40 ton loading weight (payload dependent on local GVW regulations) with an extended wheelbase (7300+1310+1310 mm) for stability; tire spec is 315/80R22.5. The design is highly customizable — tank volume, compartment sizes, discharge arrangement, inlet/outlet fittings and the top-manhole/cover type can be adjusted to meet customer specifications.

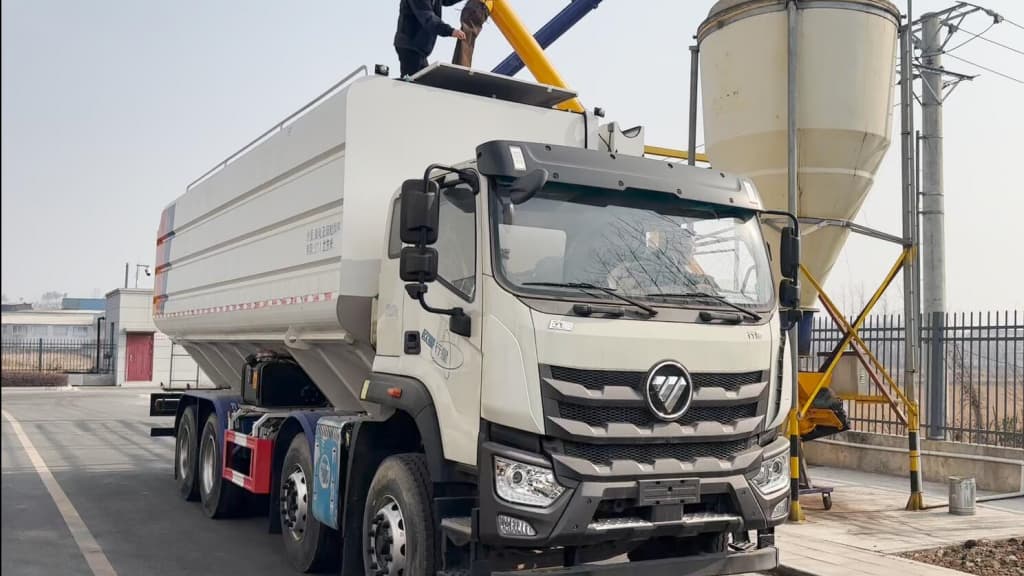

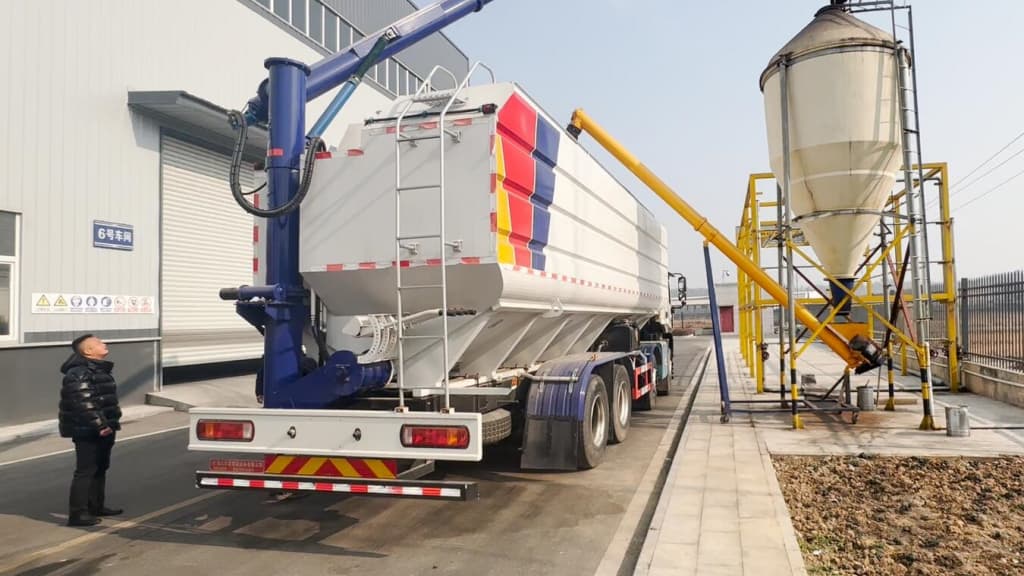

Real-shot image
Detailed specifications
| Specification | Value |
|---|---|
| Model / Type | 65 CBM Stainless Steel Bulk Feed / Grain Tanker Trailer (3 axles) |
| Gross Tank Volume | 65 m³ (65 CBM) |
| Compartments | 5 compartments (customizable) |
| Material | Stainless Steel SUS304 (tank body ~3.0 mm; heads ~4.5 mm) |
| Tare weight (est.) | ~8,000–10,000 kg (typical for this class; confirm with manufacturer) |
| Maximum Loading Weight (payload) | ~40,000 kg (40 tons) — depends on local GVW limits |
| Axles | FUWA 16T × 3 axles |
| Suspension | Mechanical leaf spring (10/10/10 leaf arrangement) |
| Discharge capacity | ≈650–750 kg/min; Residual rate ≤0.22 |
| Tires | 315/80R22.5 |
