Stainless Steel Cement Bulk Tanker Trailer 24m³ 30t 2 Axles Video
Use Cases
Common uses include bulk cement delivery to ready-mix concrete plants and on-site supply for construction or precast yards, where low residuals and fast pneumatic discharge are essential. This silo-style tanker (aka cement silo trailer or pneumatic bulk tanker) is ideal for fleet operators seeking high payload efficiency and custom discharge configurations.

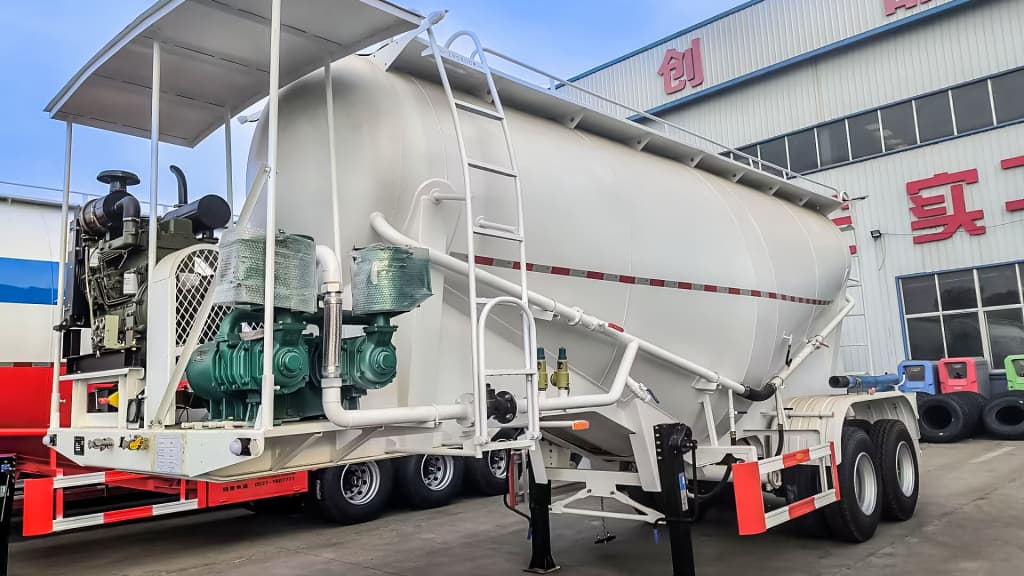

On-site photos
Detailed Description
The tanker body is formed in a “V” silo profile with 4 mm body plates and 5 mm end plates, welded by automatic submerged-arc processes for consistent seam strength; the bottom chassis uses Q345B high-strength steel for structural rigidity and long service life. Key advantages include robust welding & construction, low retention (<0.3%) for near-complete discharge, and a 24 m³/30 t rating that balances volume with legal axle loads (search terms: “silo tanker”, “steel cement trailer”).
Pneumatic discharge is driven by a reputable Chinese air compressor and diesel engine set, with a 4-inch discharge mouth, standard 8 m (adjustable) discharge hose and safety pressure valve; the trailer features 2 × 13-ton axles, mechanical leaf-spring suspension, heavy-duty landing legs (28 t), and tubeless 12R22.5 tires. The unit is offered with standard LED electricals, sandblasted & primed anti-corrosion paint, and can be tailored (dimensions, fittings, hose length, manhole arrangement) to customer specifications.

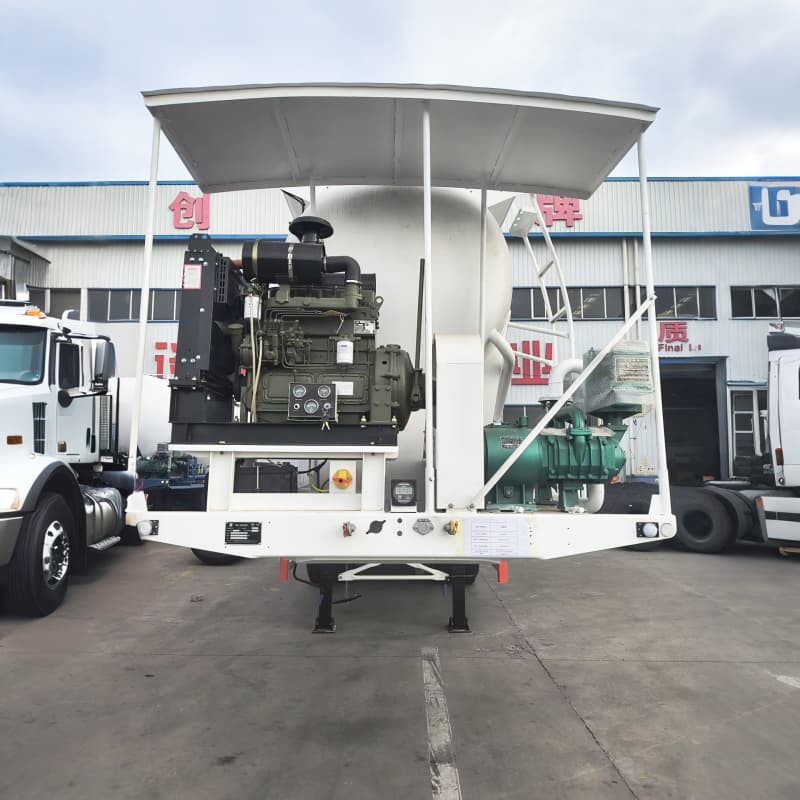

Real-shot image
Detailed specifications
| Item | Specification |
|---|---|
| Tank Capacity | 24 m³ (approx. 30 t payload) |
| Overall Dimensions | 10,000 × 2,500 × 3,800 mm (depend on final drawings) |
| Tank Material & Thickness | Steel tank body 4 mm; tank ends 5 mm; automatic submerged-arc welding |
| Tank Shape | “V” shaped silo for efficient pneumatic discharge |
| Axles & Load | 2 × 13 t axles (total axle rating 26 t) |
| Suspension | Mechanical leaf spring (90×13 mm, 10-leaf packs) |
| Discharge System | 4″ discharge mouth; 8 m discharge hose (adjustable); safety pressure valve; pneumatic discharge driven by air compressor |
| Manholes | 2 × 500 mm manholes |
| Tires & Rims | 8 pcs 12R22.5 tubeless tires; rims 9.00-22.5 |
| Chassis & Welding | Q345B bottom chassis; heavy-duty structural design; automatic submerged-arc welding |
Upgrade your vehicle
Upgrade to this 24 m³ / 30 t stainless bulk tanker and cut unloading time while reducing product loss — request a custom quote now to get drawings and a tailored discharge layout for your fleet.
